Set of 4 TRINASOLAR Vertex S+ 450W total 1800W mono photovoltaic solar panels
Set of 4 TRINASOLAR Vertex S+ 450W total 1800W mono photovoltaic solar panels
  • Pack
Set of 4 TRINASOLAR Vertex S+ 450W total 1800W mono photovoltaic solar panels
Set of 4 TRINASOLAR Vertex S+ 450W total 1800W mono photovoltaic solar panels

Set of 4 TRINASOLAR Vertex S+ 450W total 1800W mono photovoltaic solar panels

SET4-TSM-450NEG9R.28
€316.08
VAT included 10 %

€287.36 Vat excl.

Photovoltaic solar panel N-type TOPCon Dual Glass 450W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

This pack contains

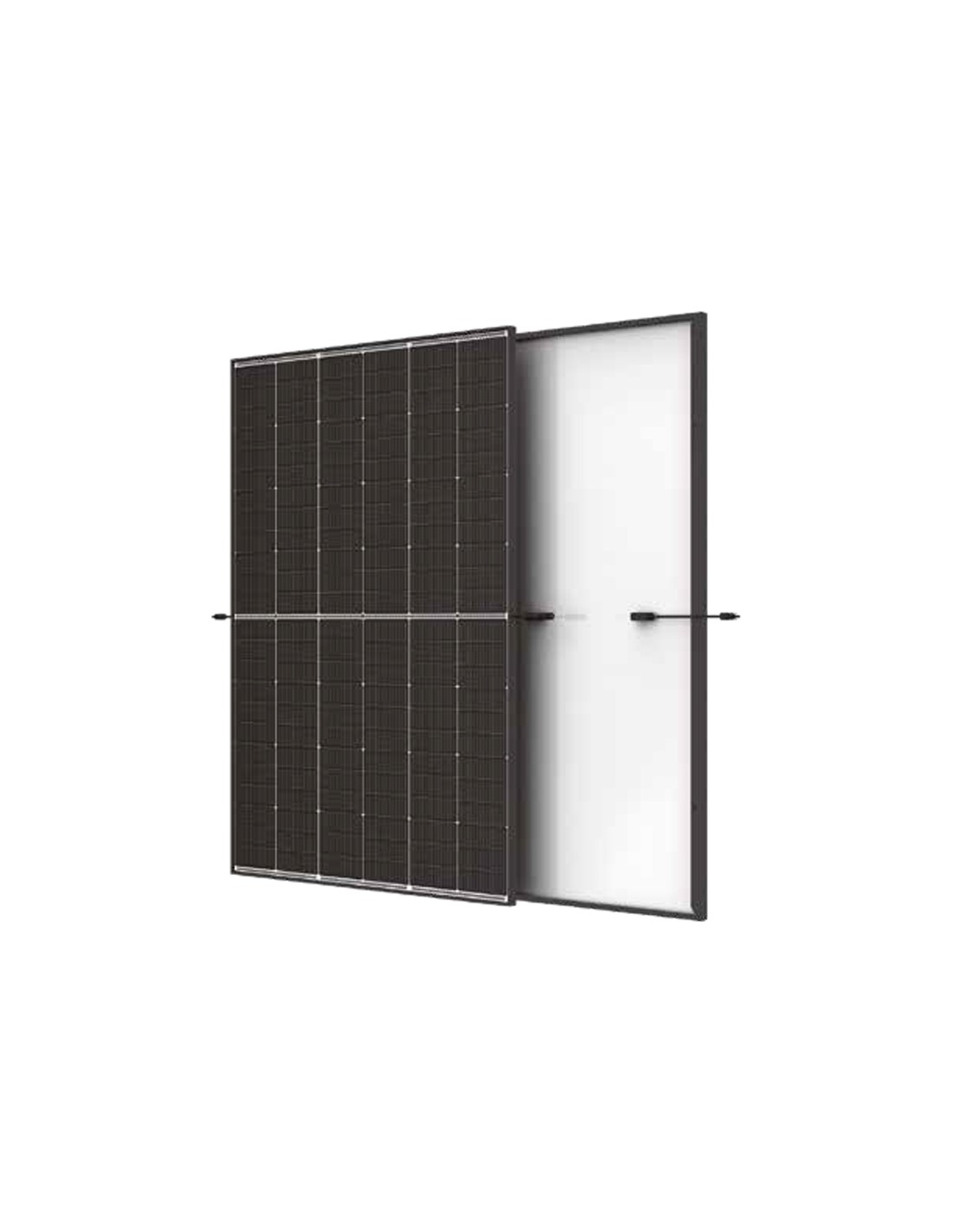

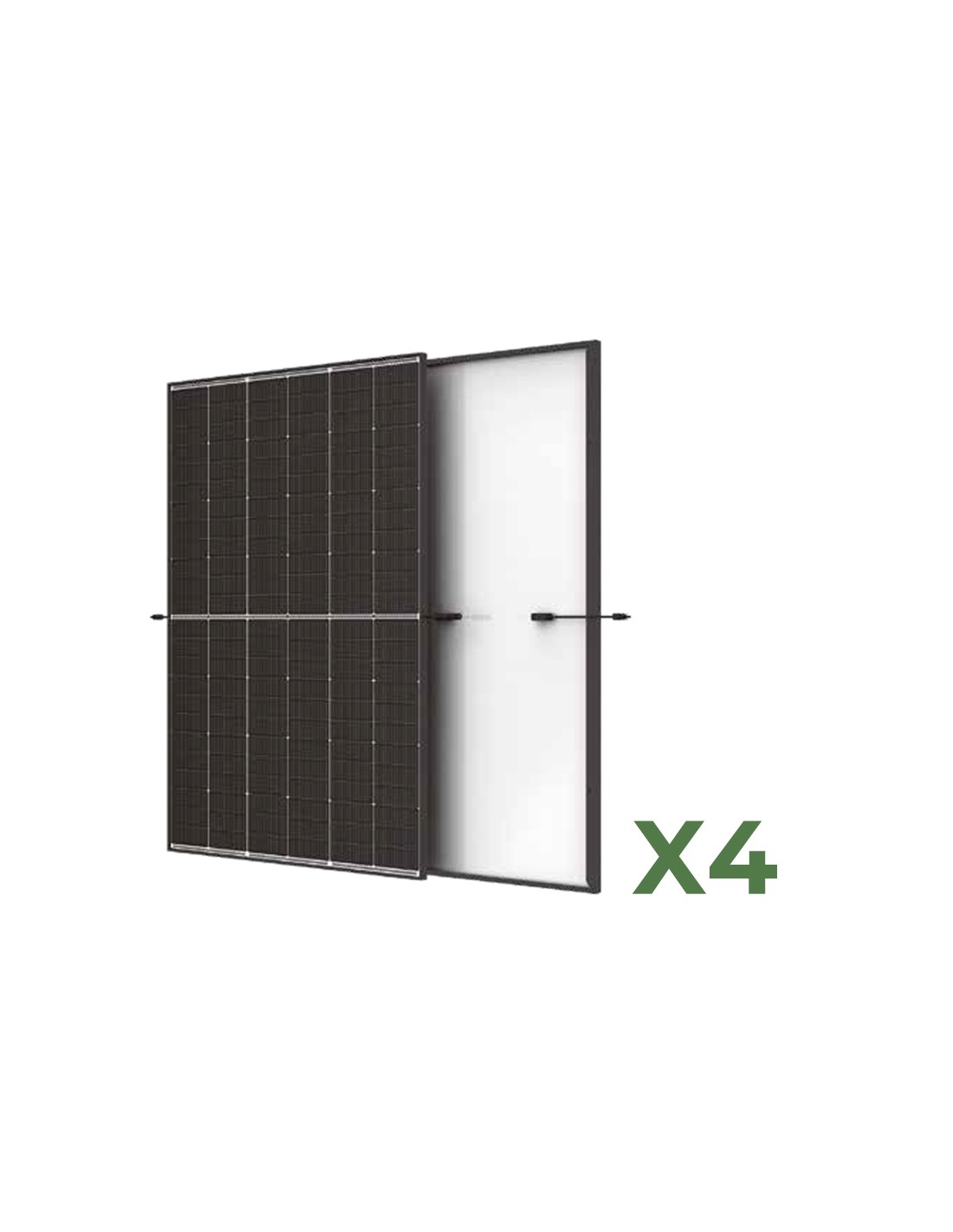

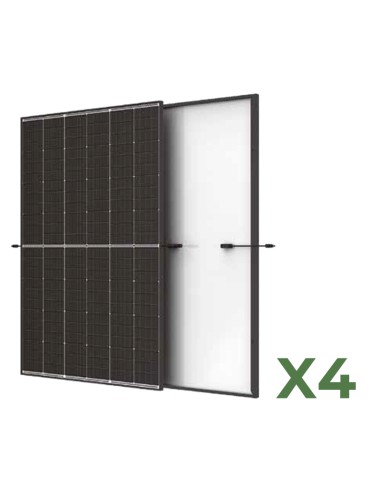

Set of 4 TRINASOLAR Vertex S+ 450W total 1800W monocrystalline photovoltaic solar panels N-type TOPCon Dual Glass black frame

Model: TSM-450-NEG18R.28

Features

  • Maximum power output: 450W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 22.5%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL TSM-450NEG9R.28
Nominal Output (Pmax) 450W
Voltage at Pmax (Vmp) 44,6V
Current at Pmax (Imp) 10,09A
Open Circuit Voltage (Voc) 52,9V
Short Circuit Current (Isc) 10,74A
Maximum System Voltage 1500V DC (IEC)
Maximum Series Fuse Rating 25A
Module Efficiency 22.5%
MECHANICAL CHARACTERISTICS
Number of cells 144
Type of cell TOPCon N-type module
Type of frame 30mm anodized aluminum alloy, black
Junction Box IP68 rated
Cables 4.0 mm2 UV resistant single core cables
Dimensions 1762 x 1134 x 30 mm
Weight 21,0kg
Packaging 36 pcs per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
450W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
144
8370000045038
