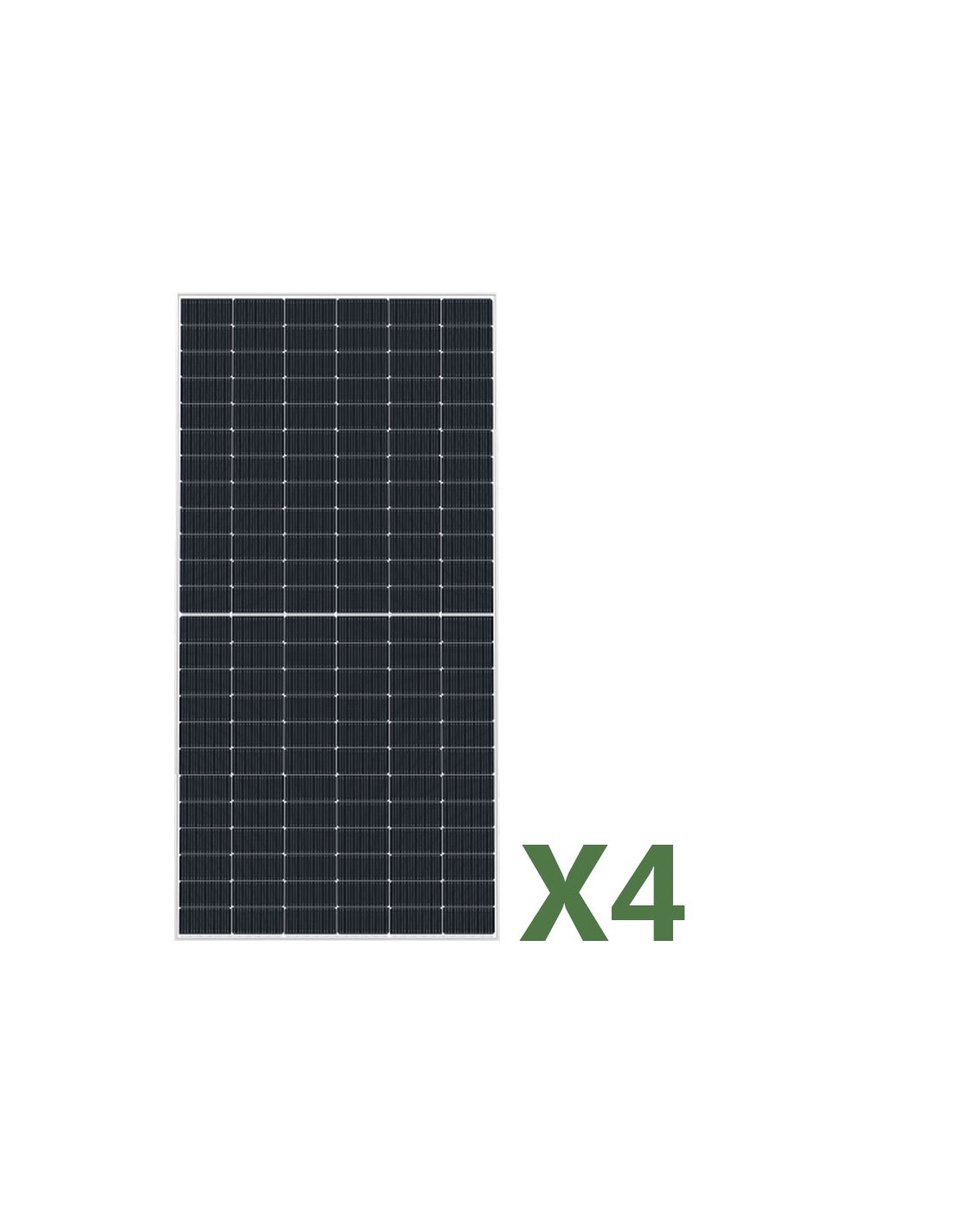

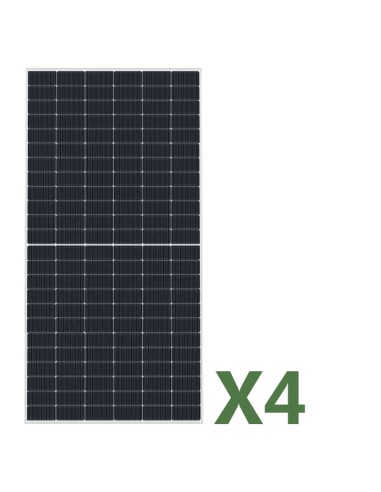

Set of 4 585W bifacial photovoltaic solar panels total 2340W mono EGING PV

Pack

Set of 4 585W bifacial photovoltaic solar panels total 2340W mono EGING PV

Name: Set of 4 585W bifacial photovoltaic solar panels total 2340W mono EGING PV
Brand: Eging PV
SKU: SET4-EG-585NT72-HL-BF-DG
Price: 384.6 EUR
Availability: InStock

Reference SET4-EG-585NT72-HL-BF-DG

€384.60

VAT included 10 %

€349.64 Vat excl.

Photovoltaic solar panel 585W with Monocrystalline silicon cel and Half Cell, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid)

This pack contains

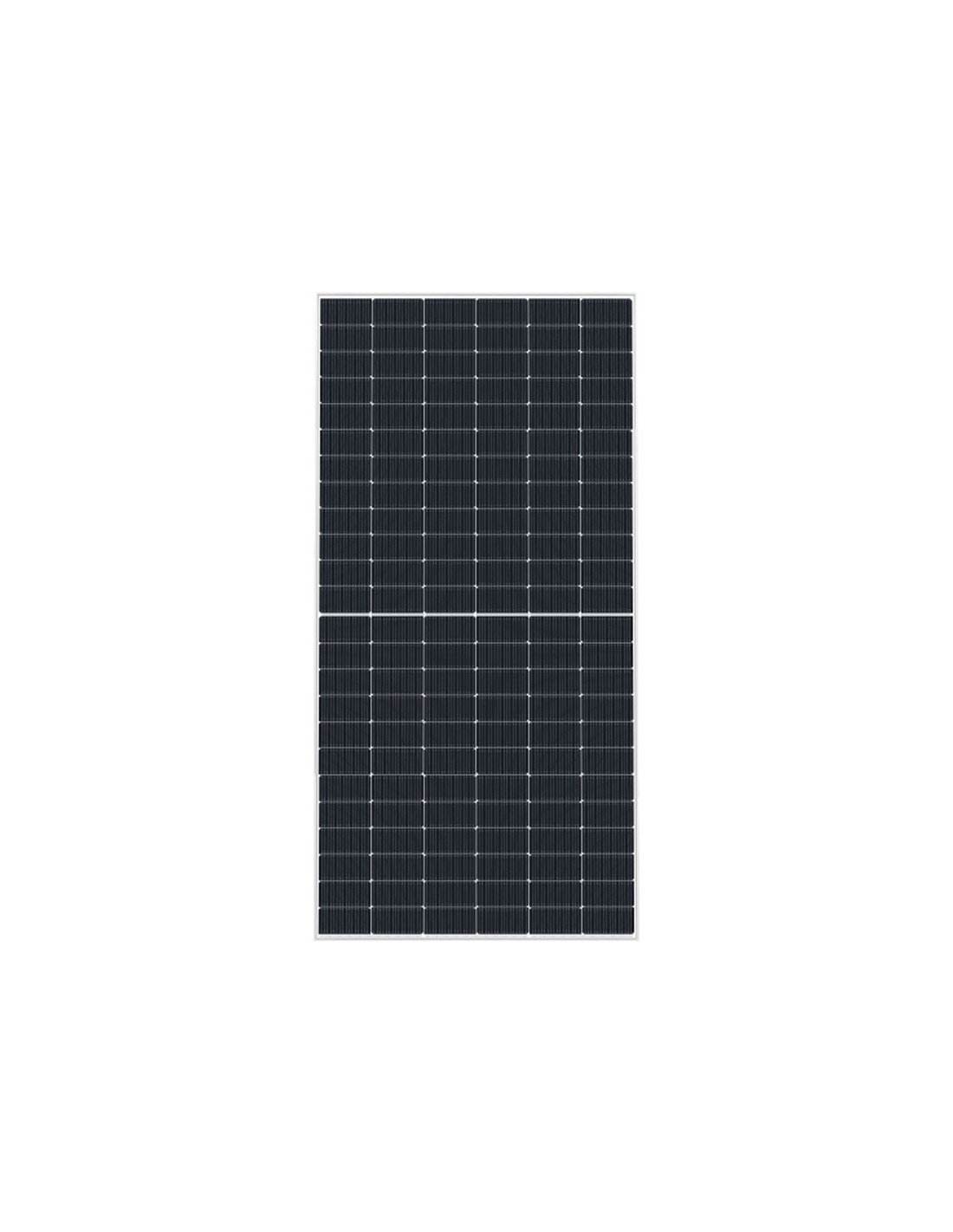

585W bifacial photovoltaic solar panel monocrystalline EGING PV half cells

€96.15

Set of 4 585W bifacial photovoltaic solar panels total 2340W monocrystallines EGING PV half cells

Model: EG-585NT72-HL-BF-DG

Features

SMBB cell design: Super multi Busbar cells brings lower resisitance and increased Busbar reﬂectance ensures higher power output;
Low degradation: Adopt N-Type TOPCon cell technology, lower degradation and better temperature co-eﬀeciency，greatly increased on generation performance;
High Reliability: Strict in-house testing in PV Lab which is CNAS approved & TUV/VDE certiﬁed;
Excellent Low-light Performance: Advanced solar cell and glass surface texturing technology allows for excellent performance in low-light environments.

For more details, download the following documents:

Datasheet: [Download]

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL	EG-585NT72-HL-BF-DG
Nominal Output (Pmax)	585W
Voltage at Pmax (Vmp)	42.89V
Current at Pmax (Imp)	13.64A
Open Circuit Voltage (Voc)	51.60V
Short Circuit Current (Isc)	14.43A
Maximum System Voltage	1500VDC
Maximum Series Fuse Rating	25A
Module Efficiency	22.6%
MECHANICAL CHARACTERISTICS
Number of cells	144
Type of cell	N-type Mono
Thickness of glass	2.0mm
Type of frame	Anodized aluminum alloy
Junction Box	IP68
Connectors	MC4 compatible
Length of Cabel	Portrait：+300mm/-300mm
Cables	4.0 mm²
Dimensions	2278 x 1134 x 30mm
Weight	31.7Kg
