€3,732.96 Vat excl.

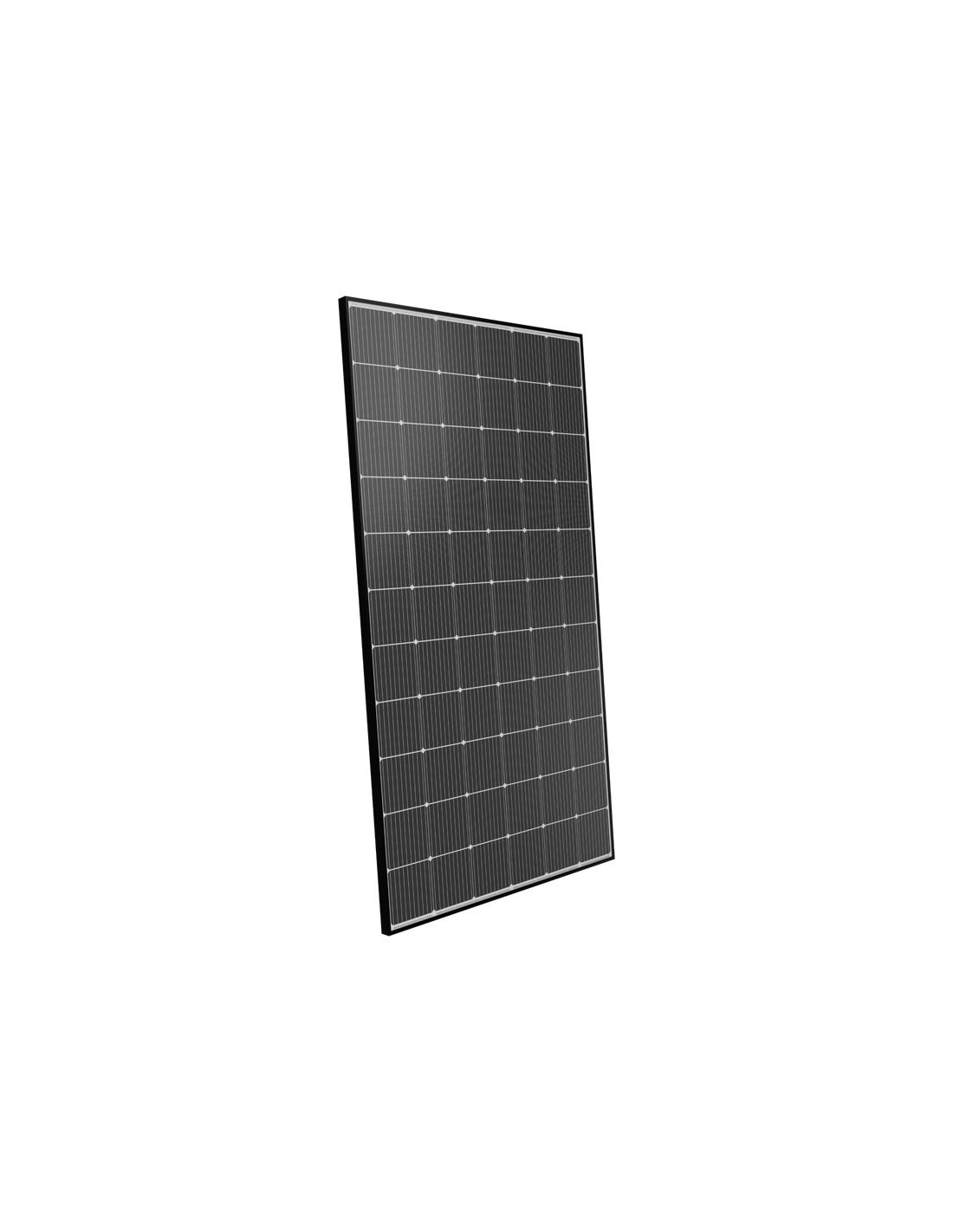

Photovoltaic solar panel 505W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
Peimar monocrystalline photovoltaic modules are manufactured using a combination of innovative manufacturing processes and advanced engineering techniques, guaranteeing customers maximum yield and high performance. This allows using fewer panels to generate more energy, ideal if space is limited or environmental conditions are difficult.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | SA505M-BF |
| Nominal Output (Pmax) | 505W |
| Voltage at Pmax (Vmp) | 37.97V |
| Current at Pmax (Imp) | 13.3A |
| Open Circuit Voltage (Voc) | 46.7V |
| Short Circuit Current (Isc) | 14.1A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 25A |
| Module Efficiency | 21.54% |
| MECHANICAL CHARACTERISTICS | |
| Solar Cells | 66 M10 monocristalline PERC |
| Frame | Anodized aluminium alloy, double wall |
| Junction Box | IP67 rated |
| Cables Section | 4.0 mm² |
| Dimensions | 2067 x 1134 x 35 mm |
| Weight | 24.7 Kg |
| Pieces per pallet | 36 pieces per pallet |
