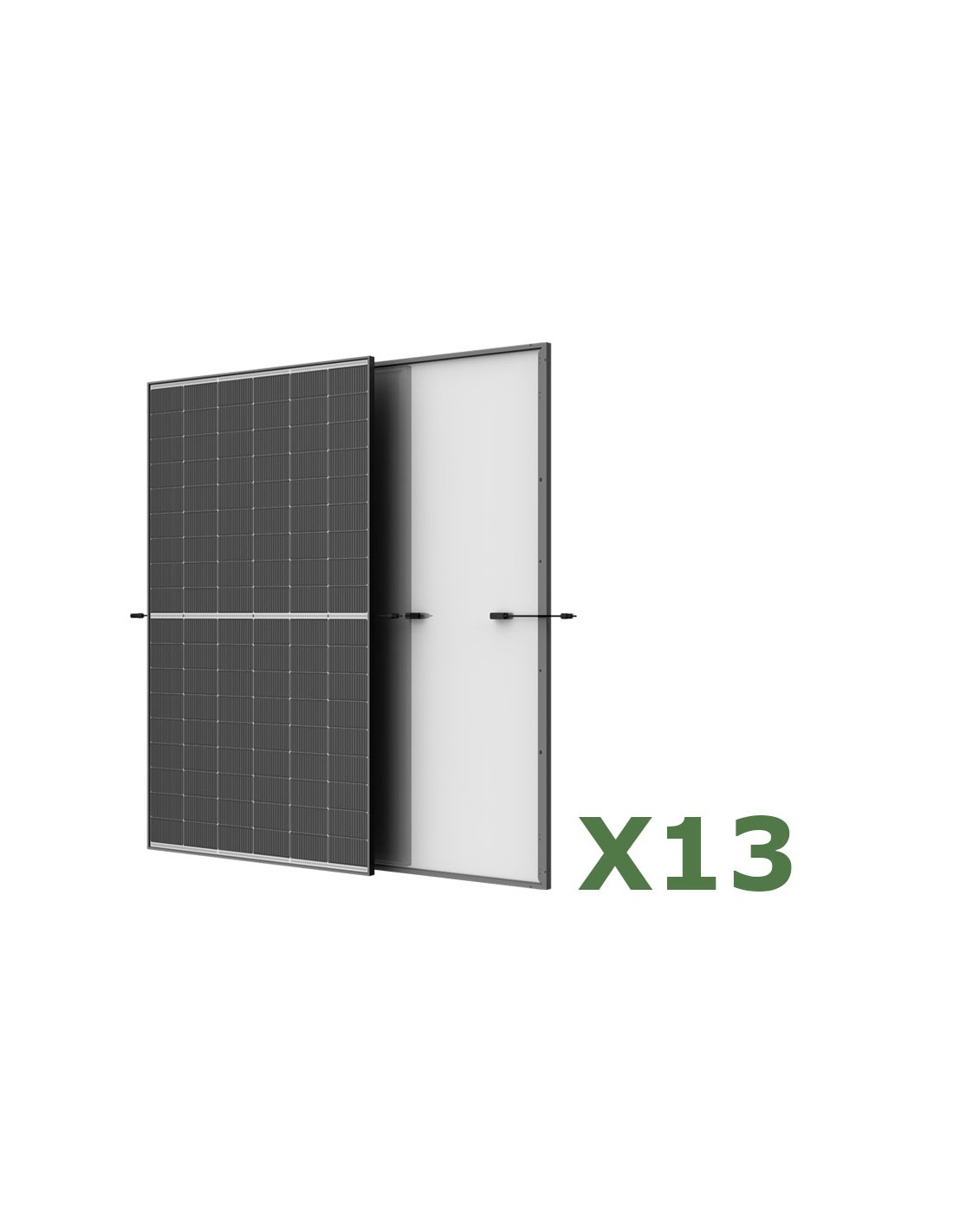

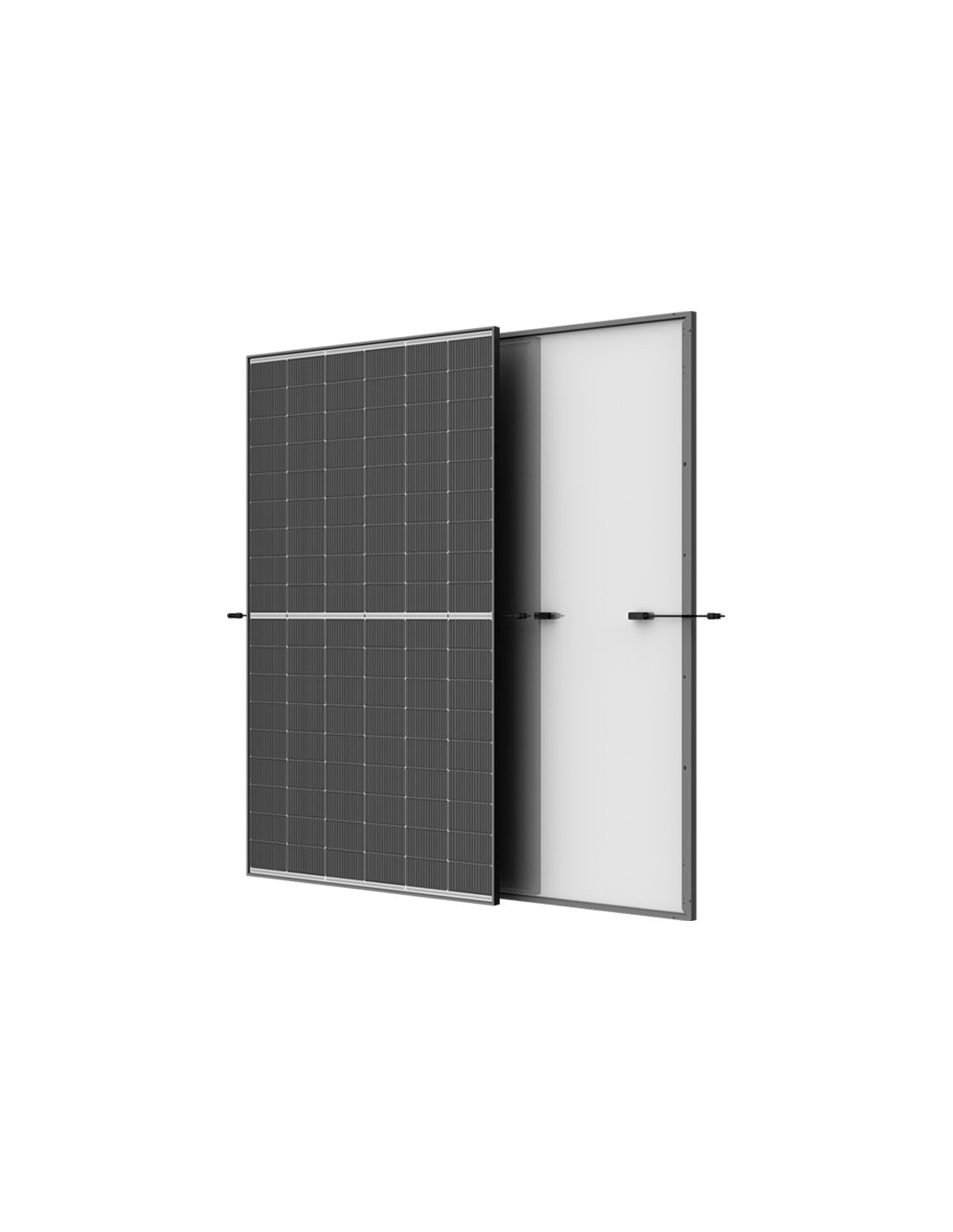

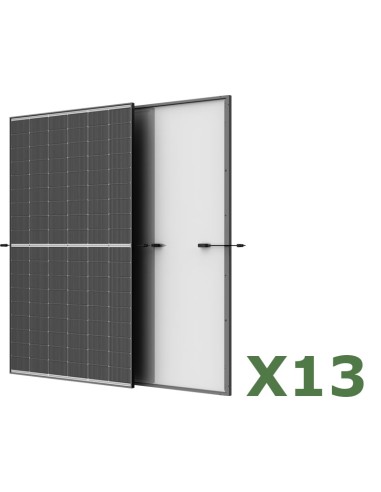

Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+
Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+
  • Pack
Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+
Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+

Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+

SET13-TSM-495-NEG18R.28
€1,230.19
VAT included 10 %

€1,118.39 Vat excl.

Photovoltaic solar panel N-type TOPCon Dual Glass 495W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

This pack contains



Set of 13 photovoltaic solar panels 495W total 6435W mono TRINASOLAR Vertex S+ N-type TOPCon Dual Glass black frame

Model: TSM-495-NEG18R.28

Features

  • Maximum power output: 495W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 22.3%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODELTSM-495-NEG18R.28
Nominal Output (Pmax)495W
Voltage at Pmax (Vmp)33,1V
Current at Pmax (Imp)14.97A
Open Circuit Voltage (Voc)39,8V
Short Circuit Current (Isc)15,83A
Maximum System Voltage1500V DC (IEC)
Maximum Series Fuse Rating30A
Module Efficiency22.3%
MECHANICAL CHARACTERISTICS
Number of cells108
Type of cellMonocrystalline
Type of frame30mm Anodized Aluminium Alloy
Junction BoxIP68 rated
CablesPhotovoltaic Technology Cable 4.0mm²
Dimensions1961 x 1134 x 30 mm
Weight23,5kg
Packaging36 pcs per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
495W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000036548
