Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+
Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+
  • Pack
Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+
Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+

Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+

SET12-TSM-495-NEG18R.28
€989.88
VAT included 10 %

€899.88 Vat excl.

Photovoltaic solar panel N-type TOPCon Dual Glass 495W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

This pack contains

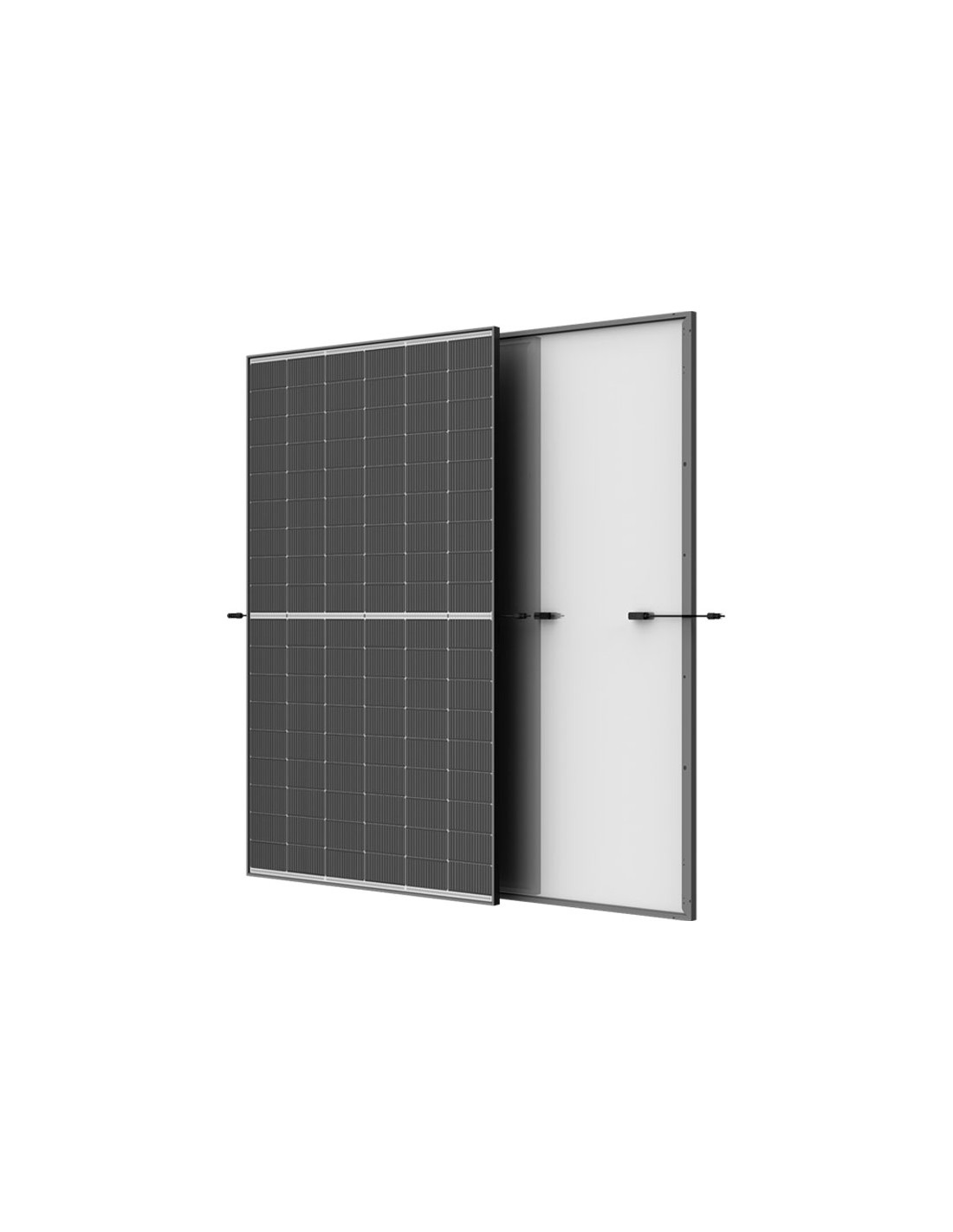

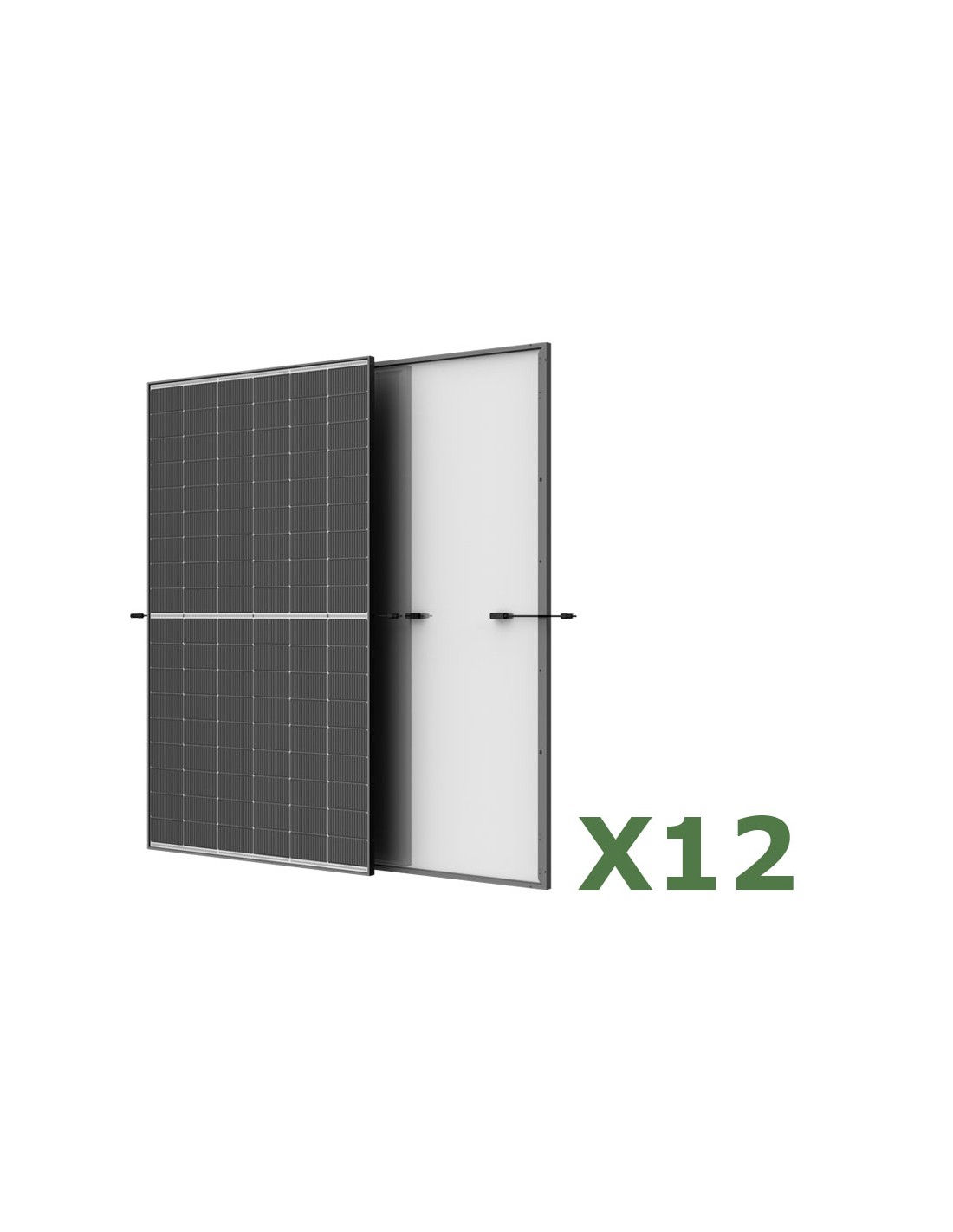

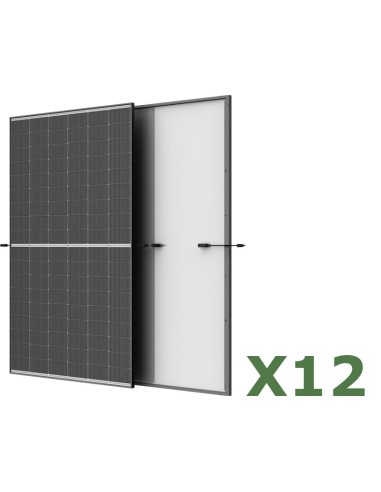

Set of 12 photovoltaic solar panels 495W total 5940W mono TRINASOLAR Vertex S+ N-type TOPCon Dual Glass black frame

Model: TSM-495-NEG18R.28

Features

  • Maximum power output: 495W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 22.3%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL TSM-495-NEG18R.28
Nominal Output (Pmax) 495W
Voltage at Pmax (Vmp) 33,1V
Current at Pmax (Imp) 14.97A
Open Circuit Voltage (Voc) 39,8V
Short Circuit Current (Isc) 15,83A
Maximum System Voltage 1500V DC (IEC)
Maximum Series Fuse Rating 30A
Module Efficiency 22.3%
MECHANICAL CHARACTERISTICS
Number of cells 108
Type of cell Monocrystalline
Type of frame 30mm Anodized Aluminium Alloy
Junction Box IP68 rated
Cables Photovoltaic Technology Cable 4.0mm²
Dimensions 1961 x 1134 x 30 mm
Weight 23,5kg
Packaging 36 pcs per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
495W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000036494
