€607.50 Vat excl.

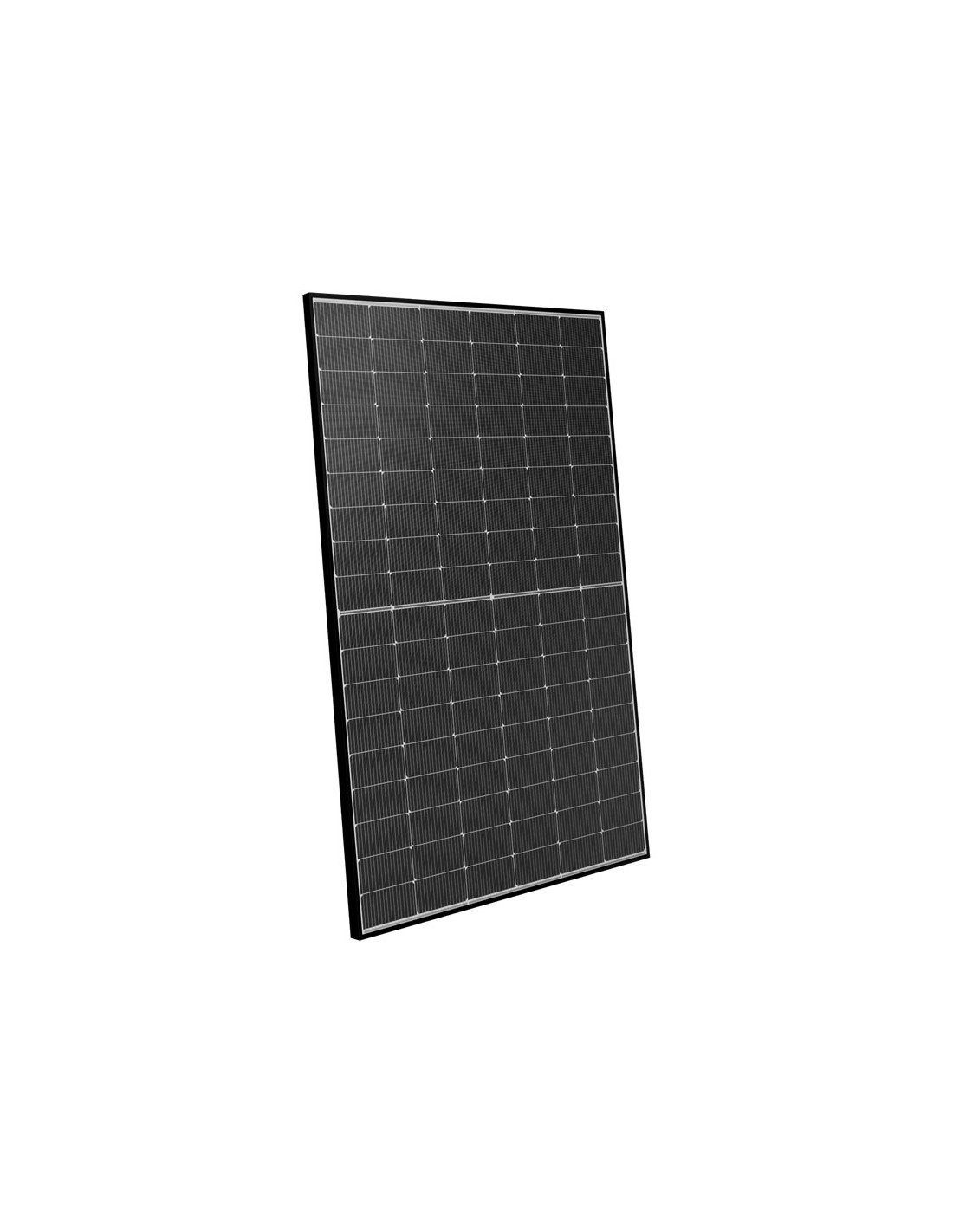

Photovoltaic solar panel 450W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 108-cell Half Cut module from the Import Line range combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product’s yield. For these reasons, the Import Line Half Cut range is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| TEMPLATE | OR10H450MNDB-BF |
| Peak power (Pmax) | 450W |
| Voltage at Pmax (Vmp) | 33.25V |
| Current at Pmax (Imp) | 13.53A |
| Voltage open circuit current (Voc) | 38.99V |
| Short circuit current (Isc) | 14.25A |
| Maximum system voltage | 1500V |
| Maximum fuse rating | 30A |
| Module efficiency | 23.04% |
| MECHANICAL CHARACTERISTICS | |
| Cells | 108 M10 HALF monocrystalline N-TYPE |
| Frame | Double thickness anodized aluminum alloy |
| Junction Box | IP68 certified |
| Cable Section | 4.0 mm² |
| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 23,01 kg |
| Pallet panels | 36 pieces per pallet |
