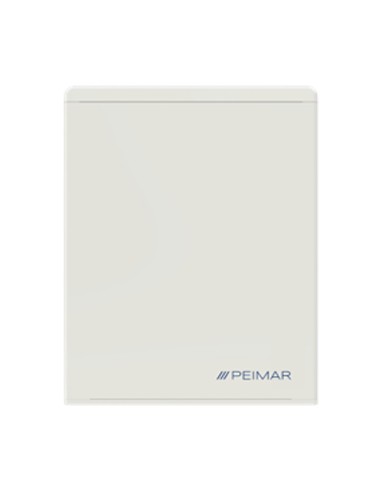

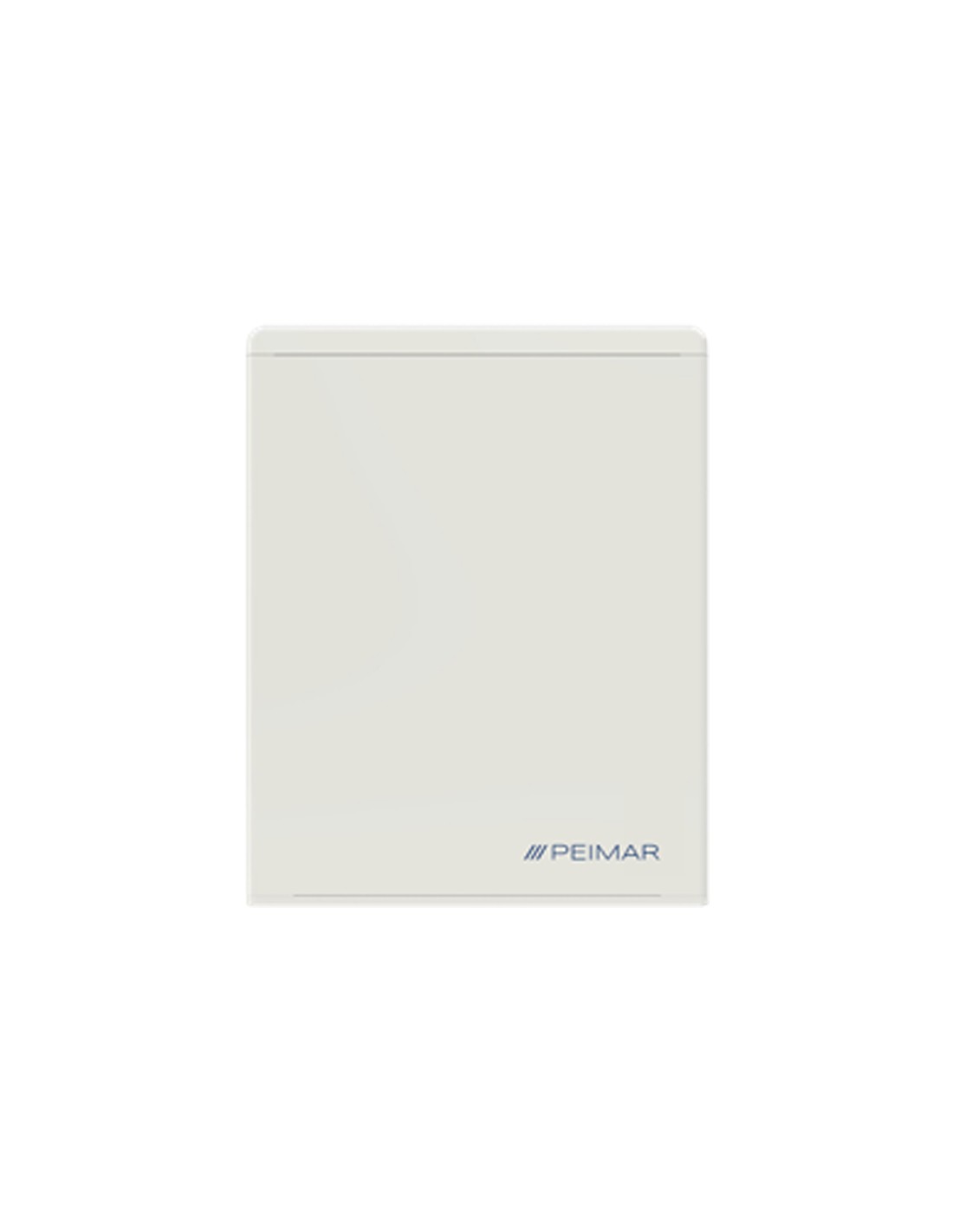

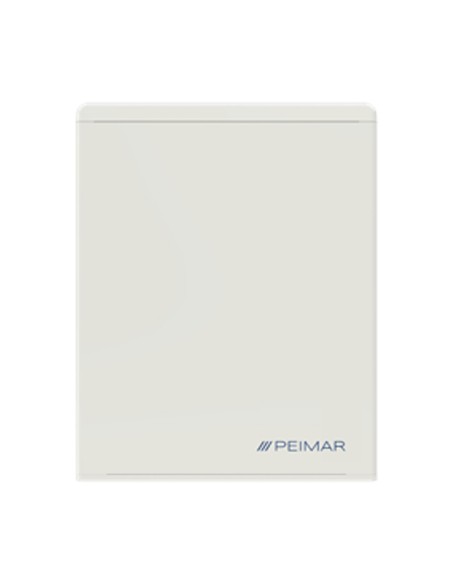

PSI-X-BT SLAVE SERIES Lithium Battery 5.8kWh Peimar for photovoltaic storage
PSI-X-5.8SLV-V2
€2,502.74
VAT included
10 %
€2,275.22 Vat excl.
The Peimar lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
PSI-X-BT SLAVE SERIES Lithium Battery 5.8kWh Peimar
The Peimar lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
Main features
- Simple installation;
- Guaranteed useful life;
- Status and residual charge LEDs.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| PSI-X-5.8SLV-V2 | |
| Battery module description | SLAVE battery module |
| Battery type | Lithium ion (LiFePO4) |
| Battery capacity | 50 Ah |
| Nominal battery energy | 5.8 kWh |
| Max. power exit | 4.0 kW |
| Net weight | 68.5 kg |
| Dimensions (W x H x D) | 474 x 647 x 193 mm |
| Operating voltage | 100 - 131 V |
| Temperature range. of operation | 0 - 55 °C |
| Max. depth of discharge | 90 % |
| Number of cycles | 6000 |
| Nominal voltage | 115.2 V |
| Maximum charging current | 35 A (25A recommended) |
| Maximum discharge current | 35 A (25A recommended) |
| Degree of protection | IP65 |
| Communication | CAN, RS485 |
| Power cables (included) | Pair of red/black cables, 0.8 m, AWG10, connectors included |
| Battery data cable (included) | 0.8 m |
| Series locking cable | Included in each SLAVE battery |
| Configuration | Refer to the inverter technical data sheets |
| Warranty | 10 Years |
| Compatible inverters | Peimar hybrid and retofit single-phase inverters PSI-X1P (HY/RF) series Peimar hybrid and retofit three-phase inverters PSI-X3S (HY/RF) series |
- Capacity (Ah)
- 50Ah
- Accumulation capacity
- 5.8kW
