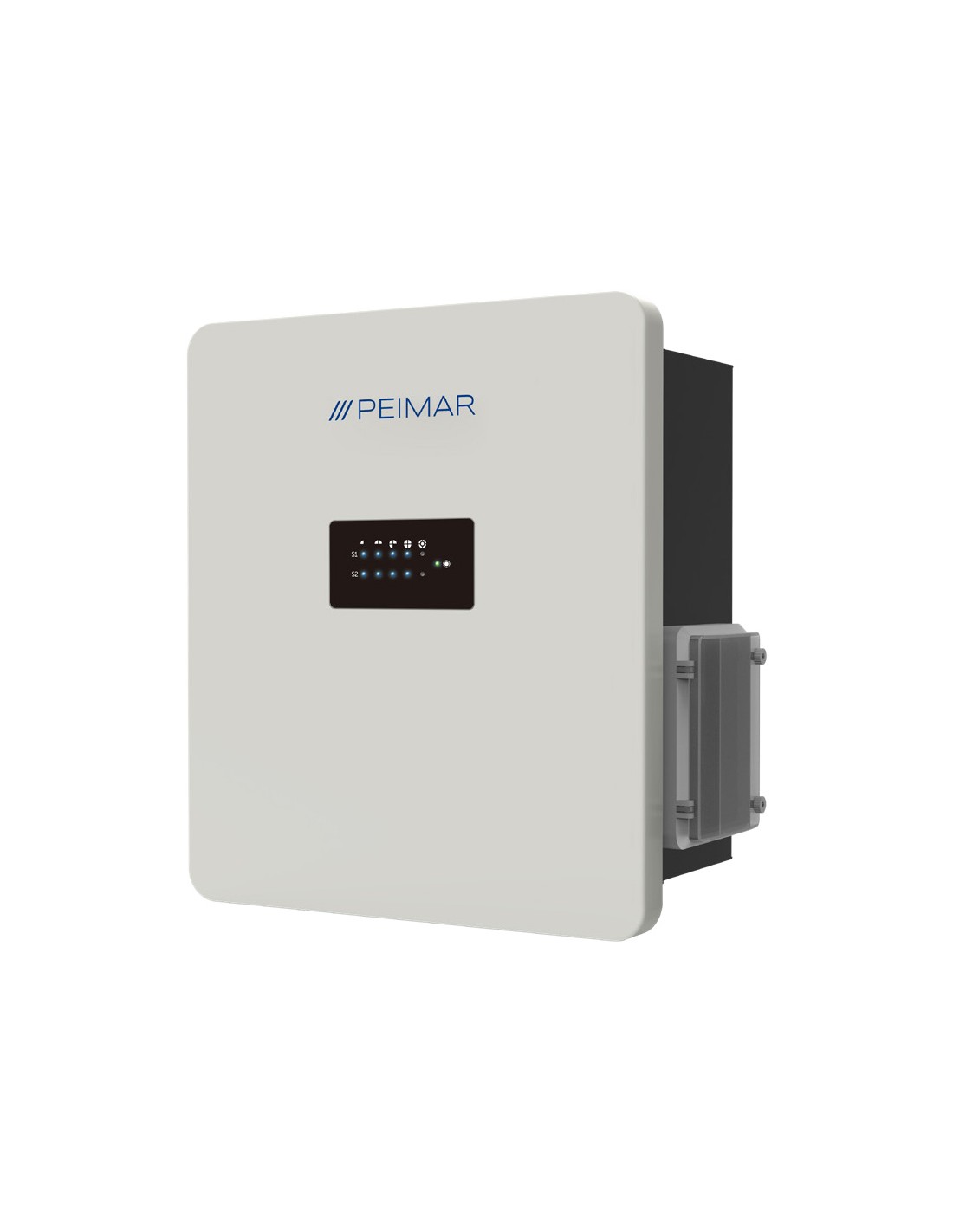

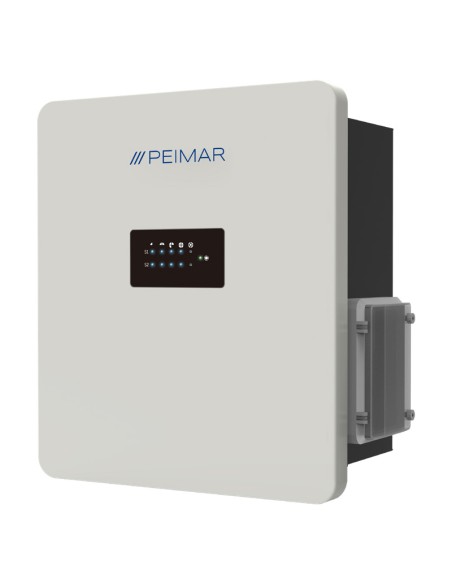

External BMS for PSI-X-BT SLAVE 5.8kWh Peimar batteries photovoltaic storage
PSI-X-PRL-BMS
€722.66
VAT included
10 %
€656.96 Vat excl.
The Peimar BMS is an indispensable solution for connecting PSI-X-BT series batteries in parallel.
External BMS for PSI-X-BT SLAVE 5.8kWh Peimar batteries
The Peimar BMS is an indispensable solution for connecting PSI-X-BT series batteries in parallel.
Main features
- Quick installation;
- Practical and silent;
- Larger storage capacity.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| General Information | |
| Dimensions (H x W x D) | 368 x 310 x 140 mm |
| Weight | 5.2 kg |
| Compatible inverters | Peimar single-phase hybrid inverters PSI-X1P (HY) Peimar three-phase hybrid inverters PSI-X3P (HY) |
| Available charge/discharge temperature range | 0 - 55° C |
| Charge/discharge temperature range at full load | 5 - 48° C |
| Interface | |
| Inverter side | CAN2.0 / RS485 |
| Battery side | RS485 |
| LED status control indicator | 3 LEDs |
| LED capacity indicator of the LotR | 2 x 4LED (25%, 50%, 75%, 100%) |
| Switching on/off | Button x 1 + Switch x 1 |
| Battery configuration with BMS | |
| Charging efficiency | 99% |
| Battery round trip efficiency | 95% |
| Recommended charging/discharging current | 25A |
| Maximum charge/discharge current | 35A |
| Number of cycles (90% DOD) | 6000 cycles |
