€37.01 Vat excl.
The converter Orion Tr Dc-Dc is used to convert the input voltage 18-35V in 12,5V Adjustable output for a maximum output of 10A.(120w)
 |

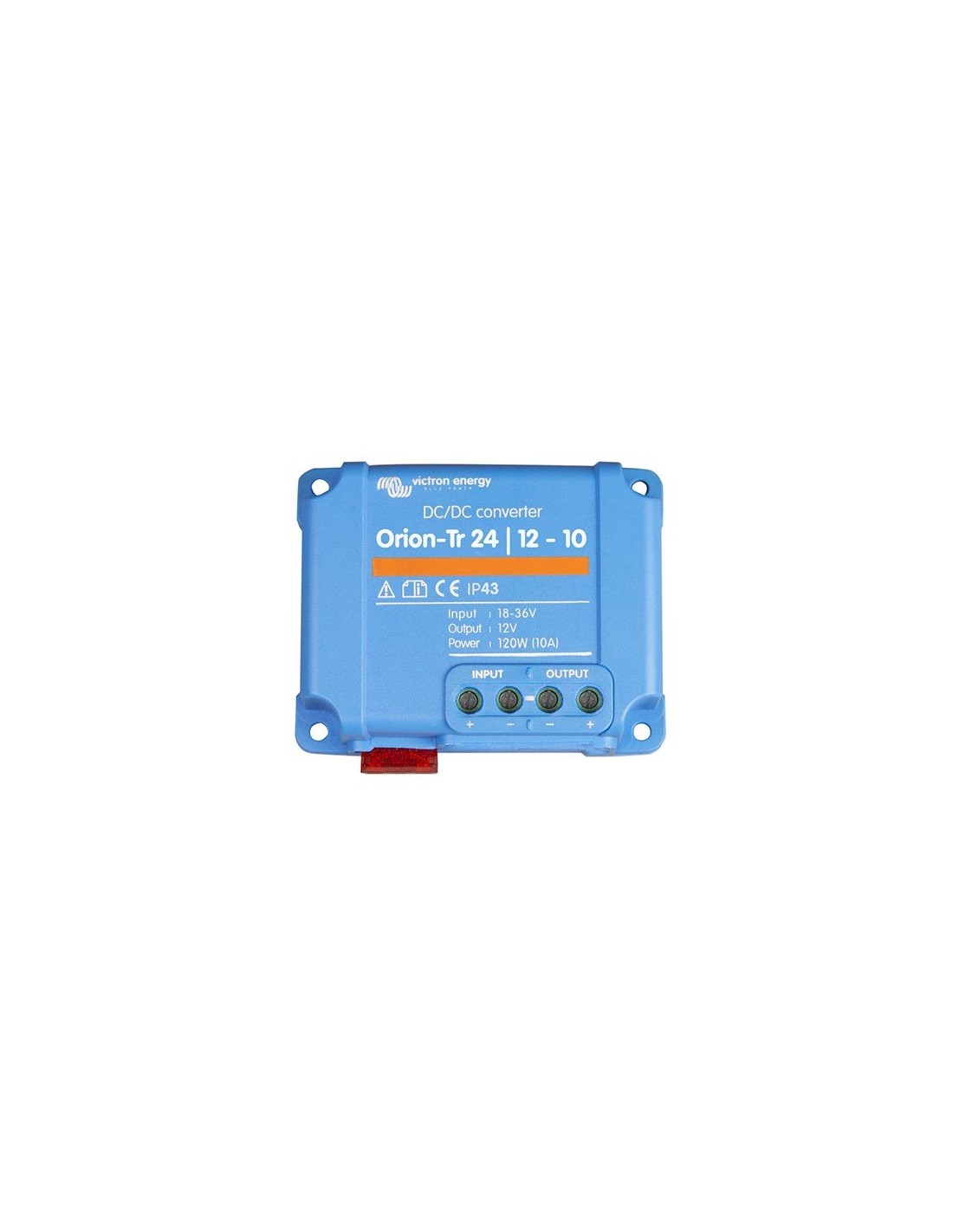

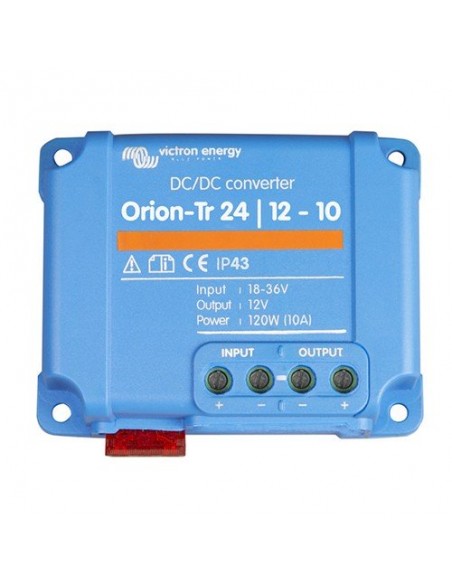

Converter Voltage DC-DC Orion-TR 24/12-10A 120W Victron Energy In. 18-35V |
|
The converter Orion Tr Dc-Dc is used to convert the input voltage 18-35V in 12,5V Adjustable output for a maximum output of 10A.(120w)
| Modell: ORI241210200R |
| Degree of protection: IP43 |
| Protection against overheating and reverse polarity: Yes |
| Wide range of input voltage: da 18V a 35V |
| galvanically isolated: No |
| Casing in blue color |
 |
2 Year Warranty |
| Input voltage range | 18-35V VDC |
| Stop Voltage | 16V |
| Starting voltage | 18V |
| Internal consumption | < 45 mA |
| DC output | 12,5V |
| Maximum output current | 10A |
| Operating Temperature Range | -20°C a 55°C |
| Efficiency | 97% |
| Weight | 200g |
| Dimensions (h x w x d) in mm | 73 x 94 x 37 mm |
First of all connect the power cable "negative" to one of the Orion negative terminals. The two negative terminals are connected together. Incorrect connection of the negative pole may cause output overvoltage and then connect the remaining cables. It is mandatory to enter an external 10A fuse input and output plus side.
 |
