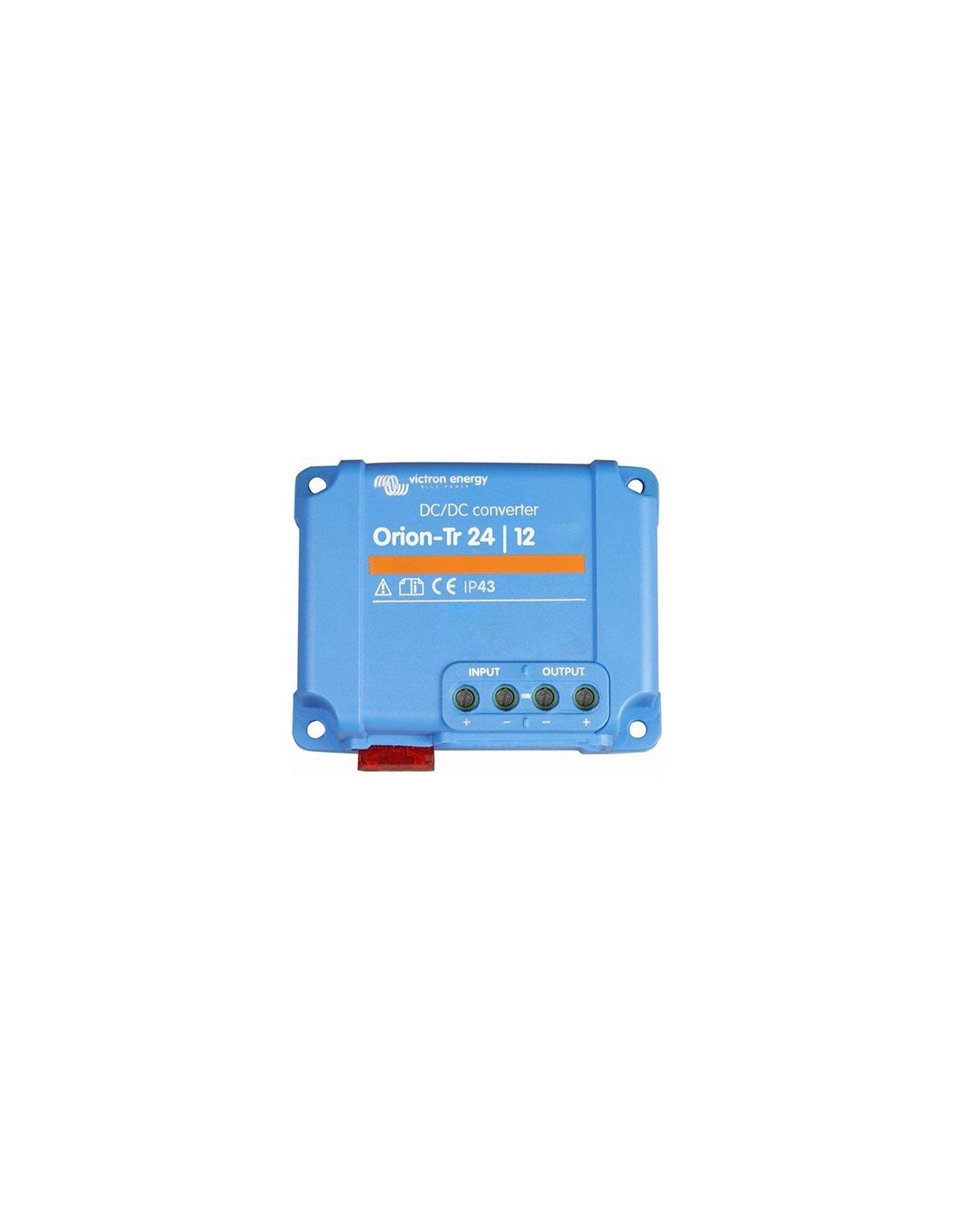

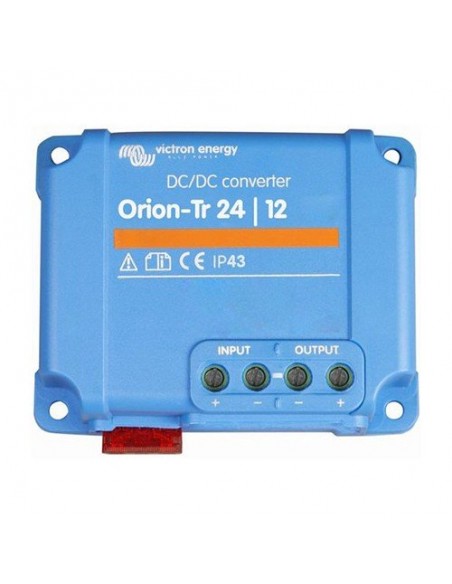

Converter / reducer Victron Orion TR DC-DC IP43 15A 180W
Converter / reducer Victron Orion TR DC-DC IP43 15A 180W

Converter Voltage DC-DC Orion-TR 24/12-15A 180W Victron Energy In. 18-35V

ORI241215200R
€47.08
VAT included 22 %

€38.59 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 18-35V in 12,5V Adjustable output for a maximum output of 15A.(180w)



Converter Voltage DC-DC Orion-TR 24/12-15A 180W Victron Energy In. 18-35V

The converter Orion Tr Dc-Dc is used to convert the input voltage 18-35V in 12,5V Adjustable output for a maximum output of 15A.(180w)

Features

Modell: ORI241215200R
Degree of protection: IP43
Protection against overheating and reverse polarity: Yes
Wide range of input voltage: da 18V a 35V
galvanically isolated: No
Casing in blue color

Warranty

2 Year Warranty

Certifications

Specifiche Elettriche e Meccaniche

Input voltage range 18-35V VDC
Stop Voltage 16V
Starting voltage 18V
Internal consumption < 45 mA
DC output 12,5V
Maximum output current 10A
Operating Temperature Range -20°C a 55°C
Efficiency 97%
Weight 250g
Dimensions (h x w x d) in mm 73 x 94 x 45 mm


Dimensioni


Assembly instructions

First of all connect the power cable "negative" to one of the Orion negative terminals. The two negative terminals are connected together. Incorrect connection of the negative pole may cause output overvoltage and then connect the remaining cables. It is mandatory to enter an external 15A fuse input and output plus side.




Downloads
  Data Sheet EN [LINK]
  Multilingual Product Manual [LINK]
  Certification of Conformity EN [LINK]

Assistance
  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
