Converter Voltage DC-DC Orion 20A 240W 18-35V Galvanic Isolation Victron Energy
Converter Voltage DC-DC Orion 20A 240W 18-35V Galvanic Isolation Victron Energy

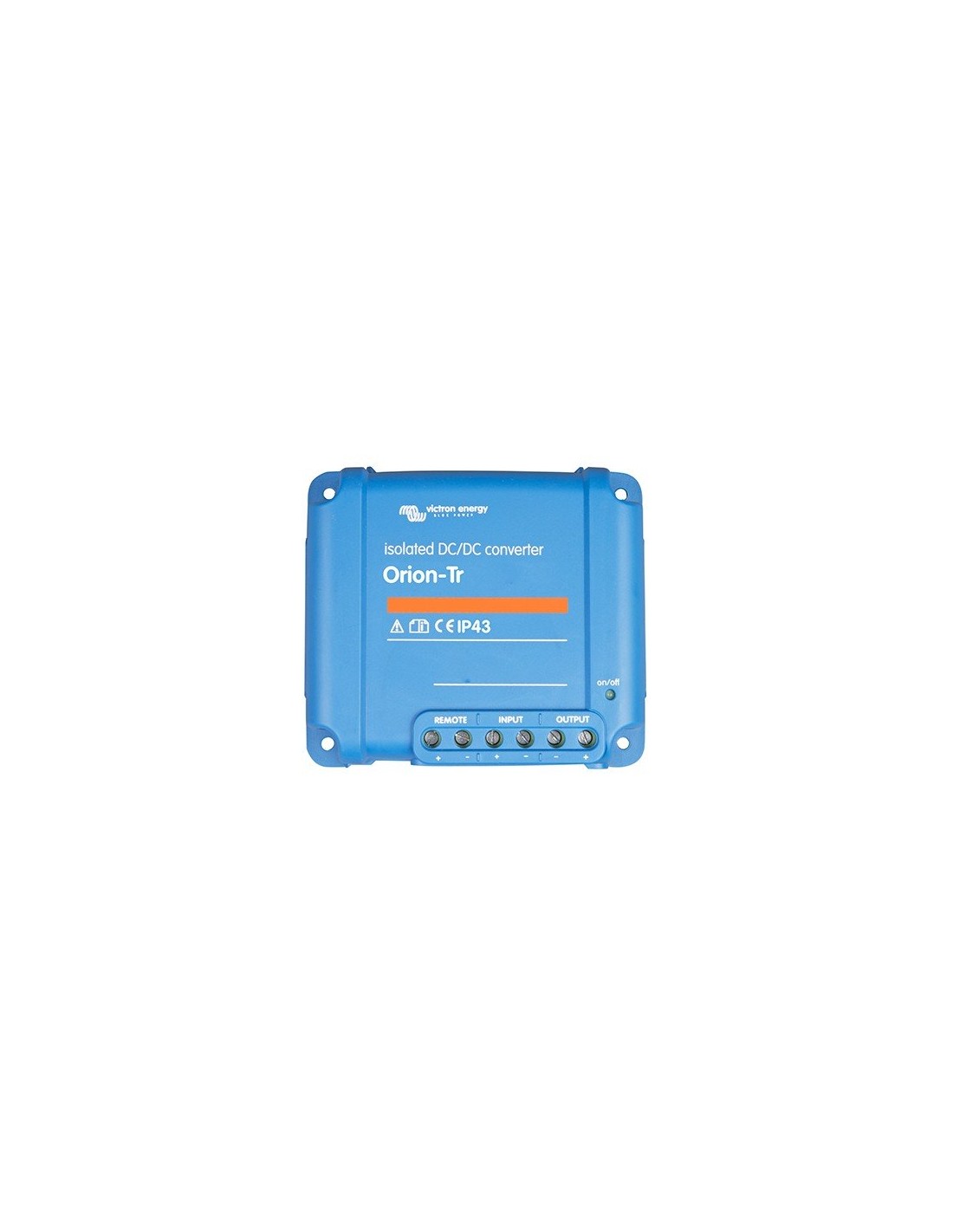

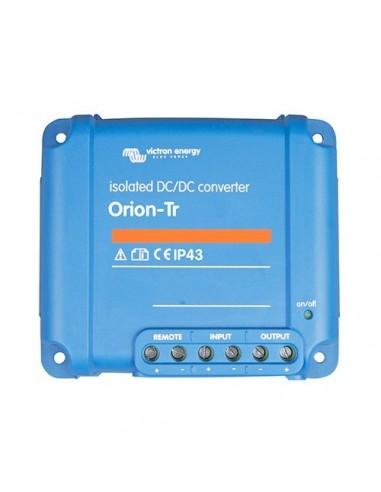

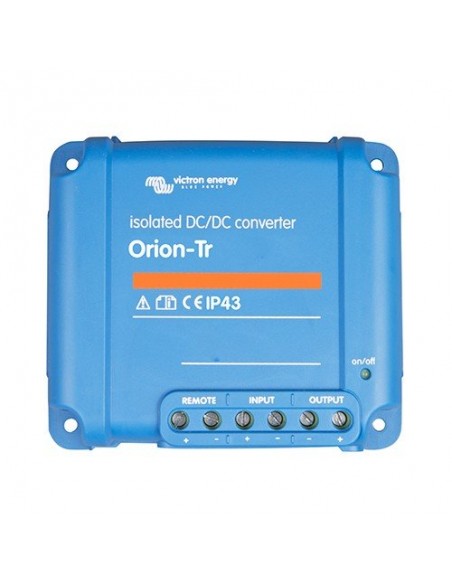

Converter Voltage DC-DC Orion-Tr 24/48 280W 6A 16-35V Galvanic Isolation Victron

ORI244828110
Last items in stock
€136.75
VAT included 22 %

€112.09 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 48.2V Adjustable output for a maximum output of 6A.(280w)



Converter Voltage DC-DC Orion Isolation 24/48 6A 280W In. 16-35V Victron Energy

The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 48.2V Adjustable output for a maximum output of 6A.(280w)

Features

Code Product: ORI244828110
Download Product Datasheet

Warranty

2 Year Warranty

Assembly instructions

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards

Screw terminals
No special tools needed for installation

Input fuse (not replaceable)
On 12V and 24V input models only



Dimensions





Downloads

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com
