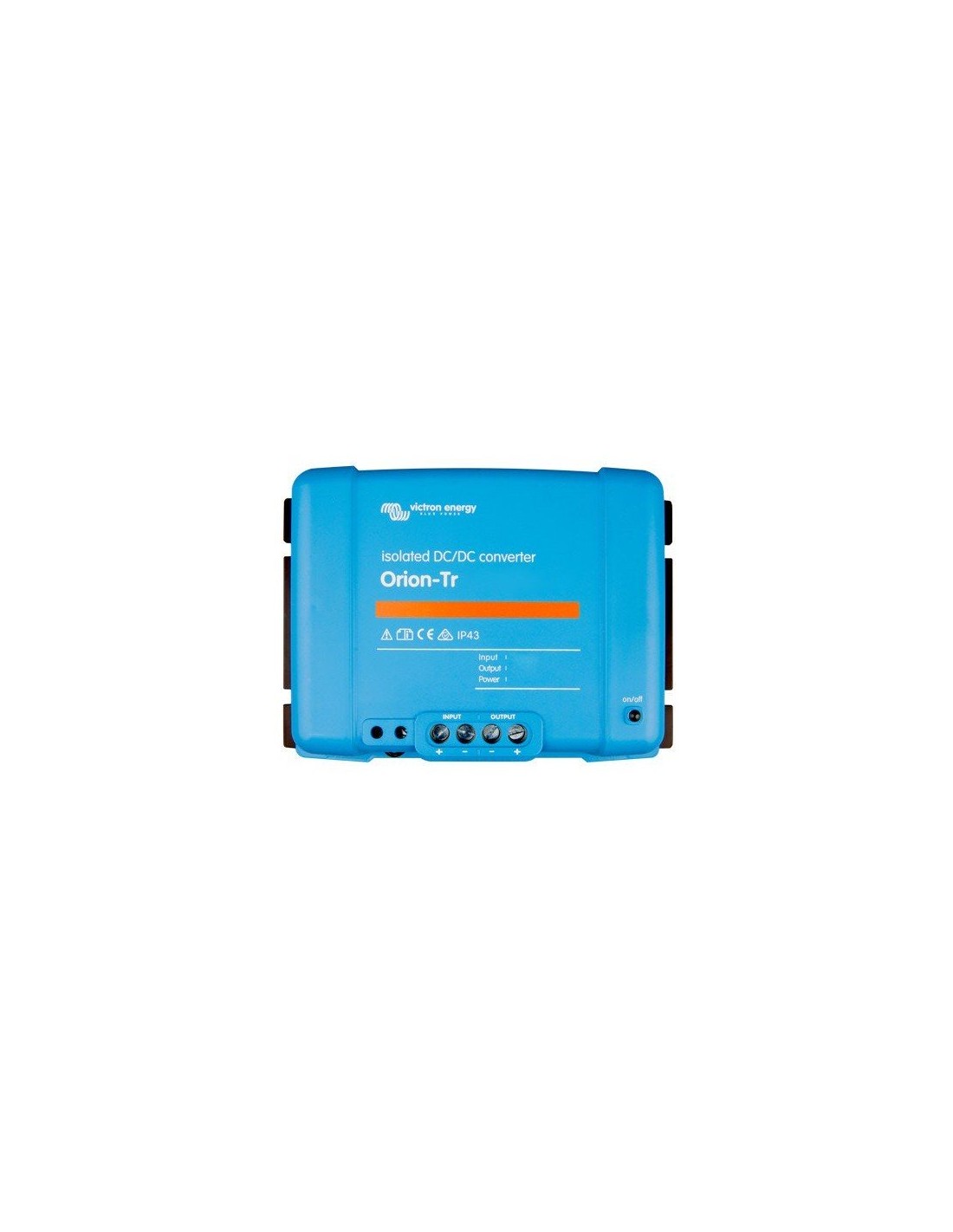

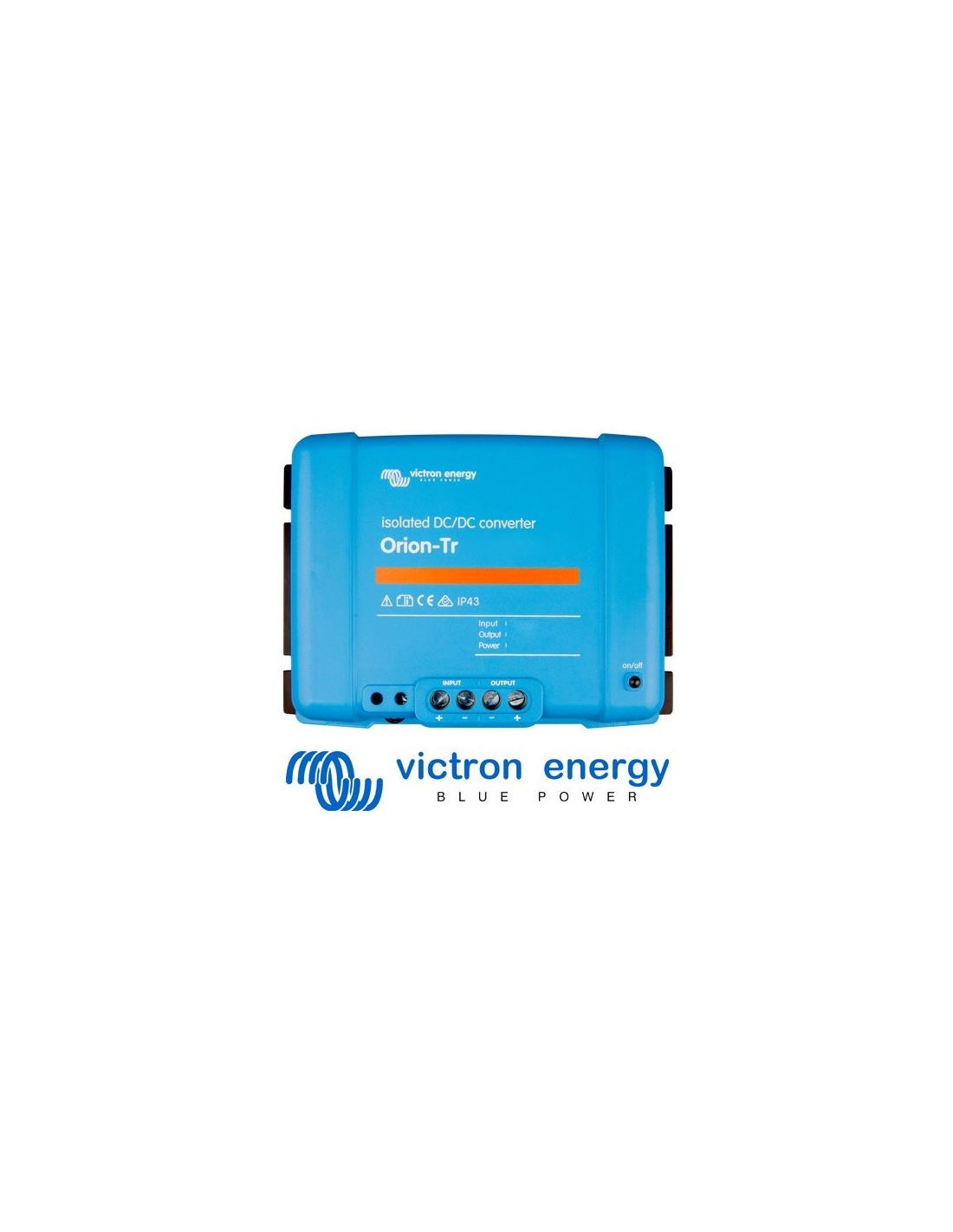

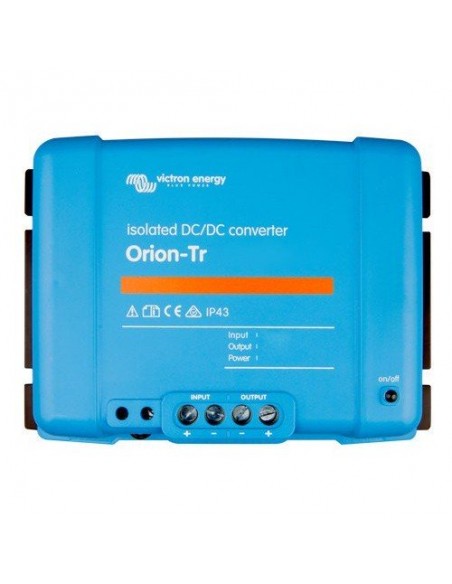

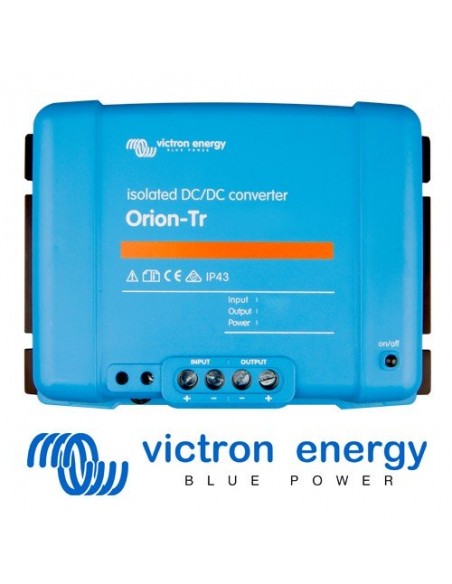

Converter Voltage DC-DC Orion-TR 12/24-15A 360W Victron Energy In.10-17V
ORI122441110
€262.31
VAT included
22 %
€215.01 Vat excl.
The remote on-off eliminates the need for a high current switch in the input wiring. The remote onoff can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0039 (0)882 228247 or write to [email protected]
 |
Orion-Tr DC-DC Converters 15A In. 10-17V 360W Galvanic isolation Victron Energy |
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote onoff can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards
Screw terminals
No special tools needed for installation
Input fuse (not replaceable)
On 12V and 24V input models only
Techinical Features
- Code Product: ORI122441110
- Input voltage range (V): 10-17
- Under voltage shutdown (V):7
- Under voltage restart (V): 7.5
- Nominal output voltage (V): 24,2
- Continuous output current (A): 15
- Max. Output current (A): 20
- Galvanic isolation200V dc between input, output and case
- Dimensions HxWxD in mm: 130x186x70
Downloads
Customer service
 |
0039 (0)882 22 82 47 | |
 |
[email protected] | |
- Product Code
- ORI122441110
- Dimensions
- 130x186x70 mm
- Weight
- 1.3kg
- Input voltage range (V)
- 10-17
- Under voltage shutdown (V)
- 7
- Under voltage restart (V)
- 7.5
- Output voltage (V)
- 24.2
- Continuous output current (A)
- 15
- Max. Output current (A)
- 20
