€121.92 Vat excl.
The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 12,2V Adjustable output for a maximum output of 20A.(240w)
 |

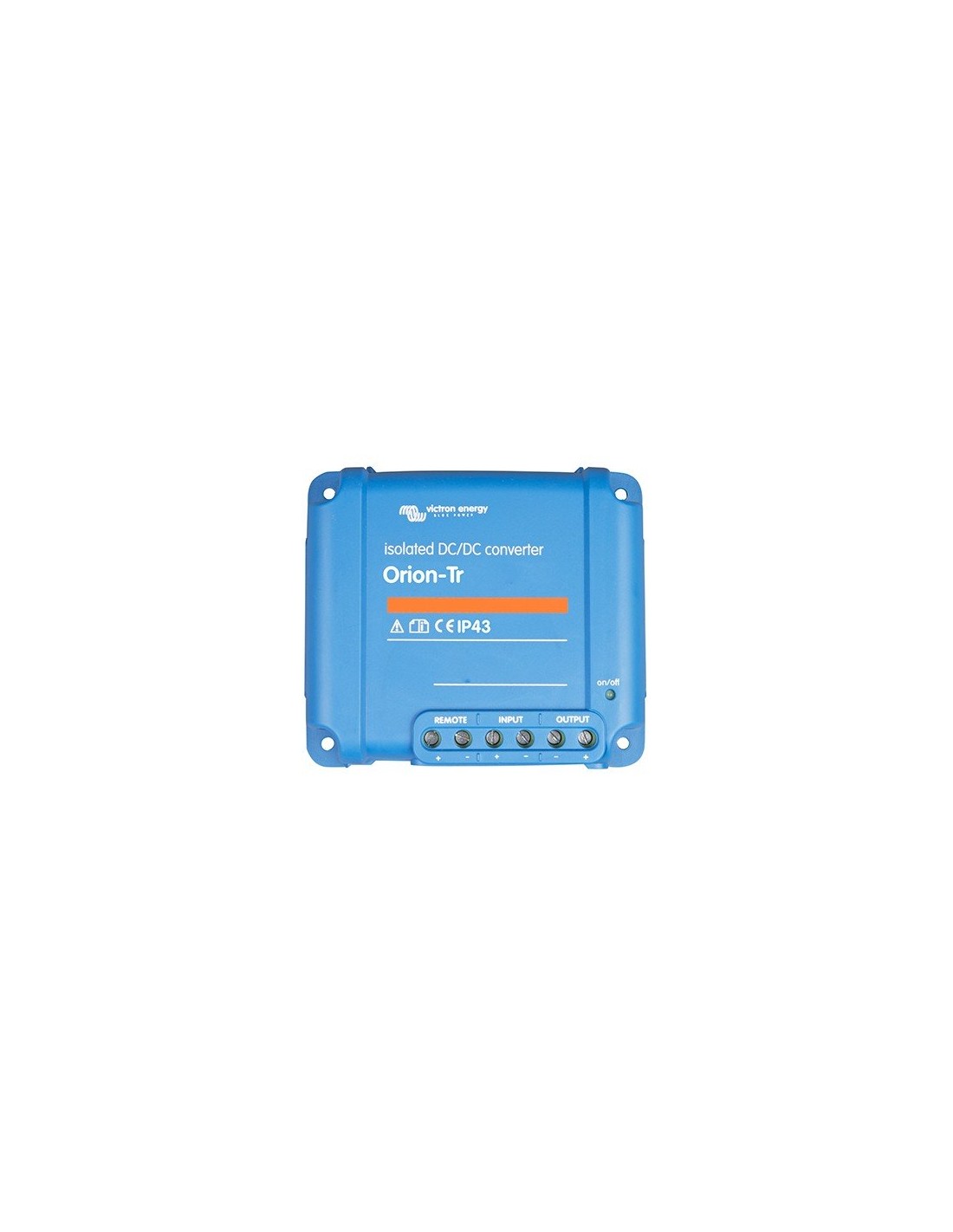

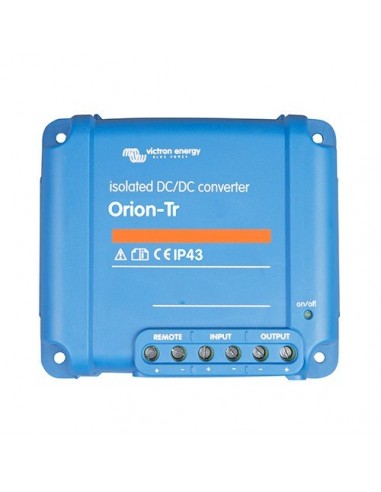

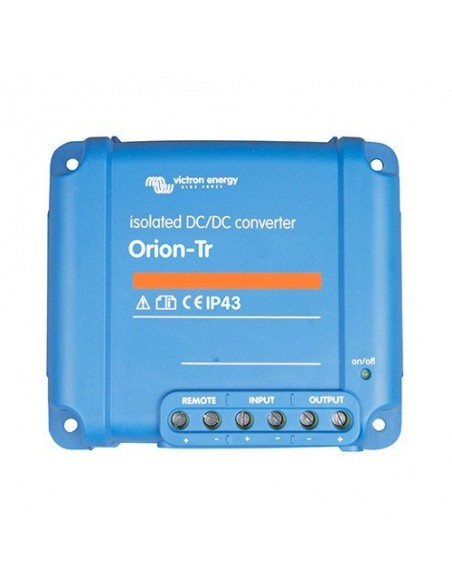

Converter Voltage DC-DC Orion 20A 240W In. 16-35V Galvanic Isolation Victron Energy |
|
The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 12,2V Adjustable output for a maximum output of 20A.(240w)
| Code Product: ORI241224110 |
| Degree of protection: IP43 |
| Protection against overheating and reverse polarity: Yes |
| Wide range of input voltage: da 18V a 35V |
| galvanically isolated: Si |
| Casing in blue color |
 |
2 Year Warranty |
| Input voltage range | 16-35V VDC |
| Stop Voltage | 14V |
| Starting voltage | 15V |
| Internal consumption | < 100 mA |
| DC output | 12,2V |
| Maximum output current | 20A |
| Operating Temperature Range | -20°C a 55°C |
| Efficiency | 88% |
| Weight | 1,3 Kg |
| Dimensions (h x w x d) in mm | 130 x 186 x 70 mm |
First of all connect the power cable "negative" to one of the Orion negative terminals. The two negative terminals are connected together. Incorrect connection of the negative pole may cause output overvoltage and then connect the remaining cables. It is mandatory to enter an external 20A fuse input and output plus side.
 |
