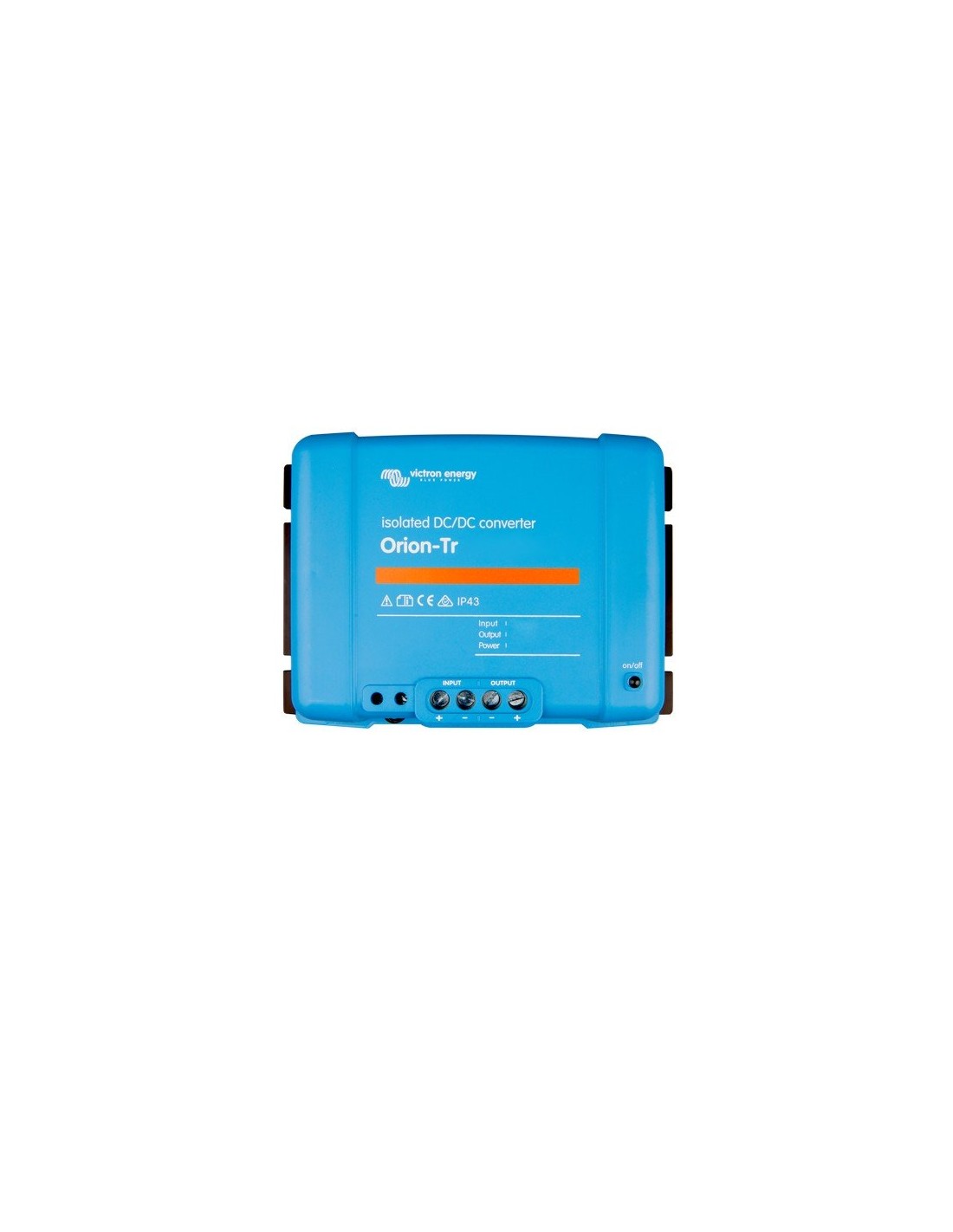

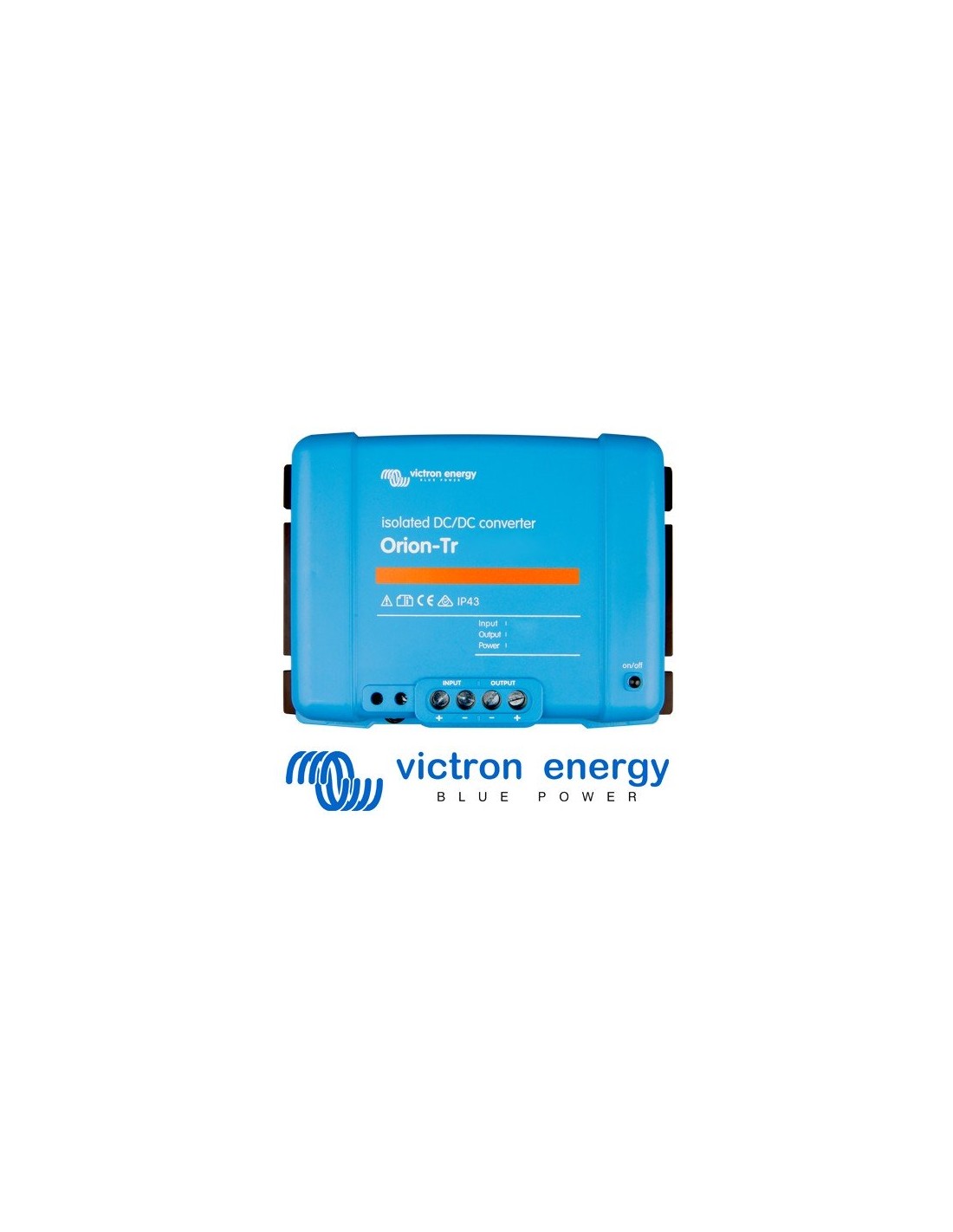

Converter Voltage DC-DC Orion 17A 400W In. 20-35V Galvanic Isolation Victron
ORI242441110
€241.00
VAT included
22 %
€197.54 Vat excl.
The converter Orion Tr Dc-Dc is used to convert the input voltage 20-35V in 24,2V Adjustable output for a maximum output of 17A.(400w)
 |
Converter Voltage DC-DC Orion 17A 400W In. 20-35V Galvanic Isolation Victron Energy |
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Technical Features
| Input voltage range | 20-35V VDC |
| Stop Voltage | 14V |
| Starting voltage | 15V |
| Internal consumption | < 80 mA |
| DC output | 24,2V |
| Maximum output current | 17A |
| Operating Temperature Range | -20°C a 55°C |
| Efficiency | 89% |
| Weight | 1.6 Kg |
| Dimensions (h x w x d) in mm | 130 x 186 x 70 mm |
Dimensions
Downloads
 |
Datasheet EN [link] |
Customer service
 |
0039 (0)882 22 82 47 | |
 |
[email protected] | |
- Product Code
- ORI242441110
- Input voltage range (V)
- 20-35V
- Under voltage shutdown (V)
- 14V
- Under voltage restart (V)
- 15V
- Output voltage (V)
- 24,2V
- Continuous output current (A)
- 17A
- Max. Output current (A)
- 25A
