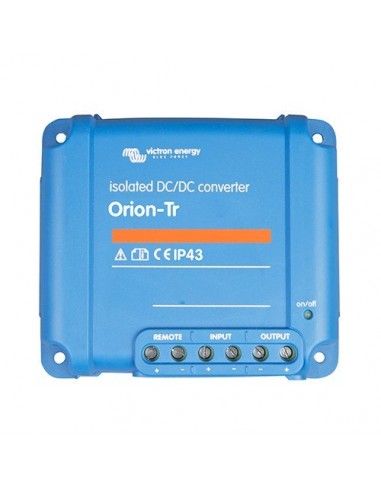

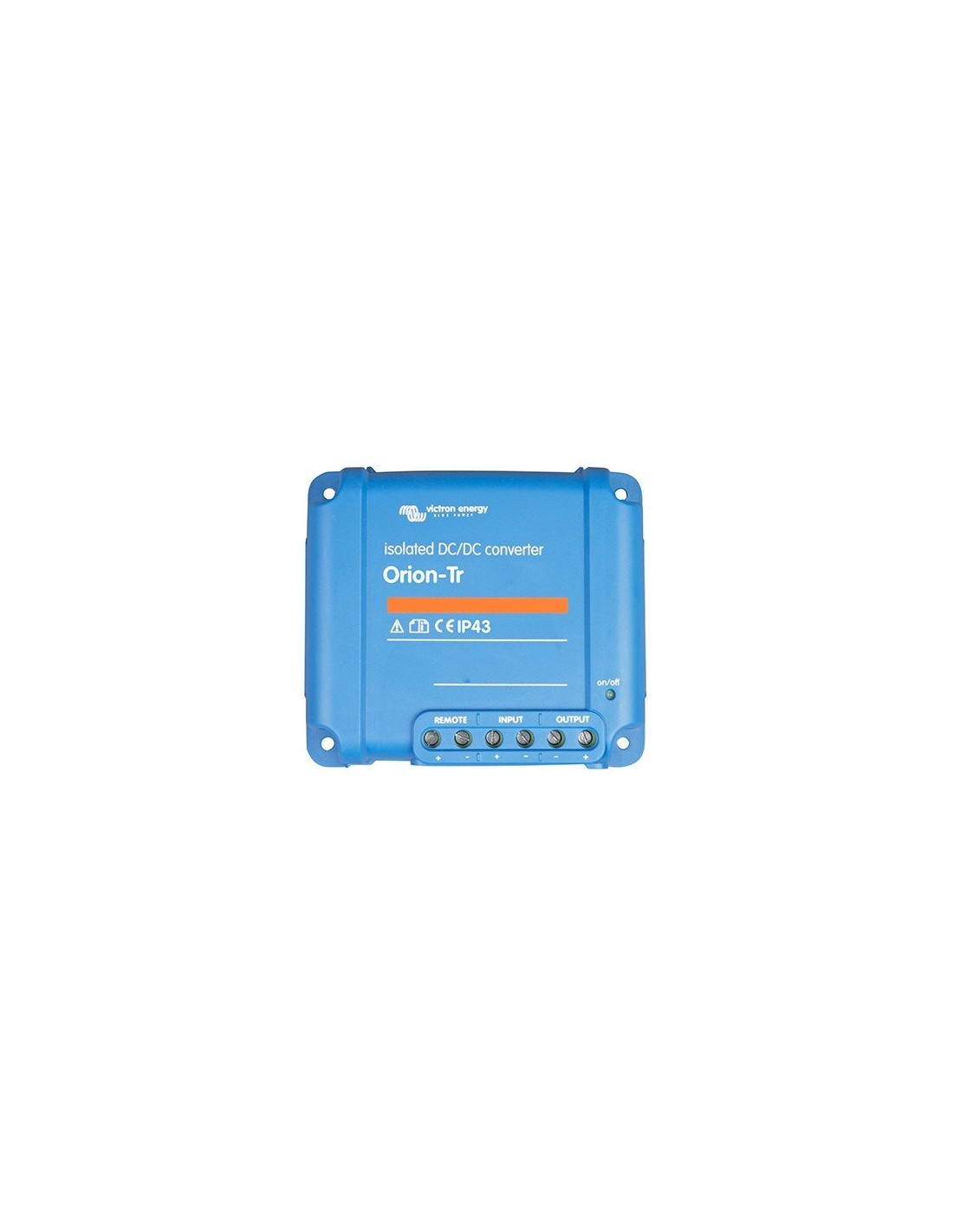

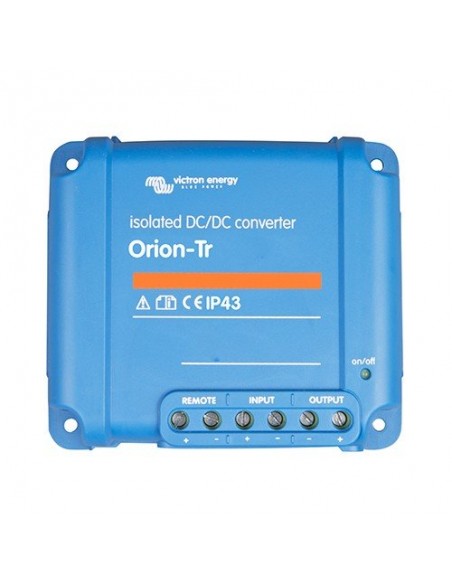

Converter Voltage DC-DC Orion 12A 280W In. 16-35V Galvanic Isolation Victron
Converter Voltage DC-DC Orion 12A 280W In. 16-35V Galvanic Isolation Victron

Converter Voltage DC-DC Orion 12A 280W In. 16-35V Galvanic Isolation Victron

ORI242428110
Last items in stock
€148.83
VAT included 22 %

€121.99 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 24,2V Adjustable output for a maximum output of 12A.(280w)



Converter Voltage DC-DC Orion 12A 280W In. 16-35V Galvanic Isolation Victron Energy

The converter Orion Tr Dc-Dc is used to convert the input voltage 16-35V in 24,2V Adjustable output for a maximum output of 12A.(280w)

Features

Code Product: ORI242428110
Degree of protection: IP43
Protection against overheating and reverse polarity: Yes
Wide range of input voltage: da 16V a 35V
galvanically isolated: Si
Casing in blue color

Warranty

2 Year Warranty

Certifications

Specifiche Elettriche e Meccaniche

Input voltage range 16-35V VDC
Stop Voltage 14V
Starting voltage 15V
Internal consumption < 100 mA
DC output 24,2V
Maximum output current 15A
Operating Temperature Range -20°C a 55°C
Efficiency 89%
Weight 1.3 Kg
Dimensions (h x w x d) in mm 130 x 186 x 70 mm


Dimensioni


Assembly instructions

First of all connect the power cable "negative" to one of the Orion negative terminals. The two negative terminals are connected together. Incorrect connection of the negative pole may cause output overvoltage and then connect the remaining cables. It is mandatory to enter an external 20A fuse input and output plus side.




Downloads

  Data Sheet EN [LINK]

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
