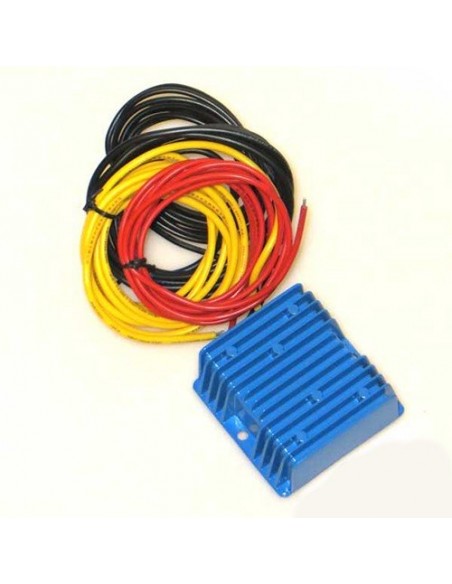

Converter / reducer Victron Orion DC-DC IP67 10A 120W
Converter / reducer Victron Orion DC-DC IP67 10A 120W

Converter Voltage DC-DC Orion 24/12-10A 120W Victron Energy IP67

ORI241210260
Last items in stock
€45.97
VAT included 22 %

€37.68 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 15-40V in 12V Adjustable output for a maximum output of 10A.(120w)



Converter Voltage DC-DC Orion 24/12-10A 120W Victron Energy IP67

The converter Orion Tr Dc-Dc is used to convert the input voltage 15-40V in 12V Adjustable output for a maximum output of 10A.(120w)

Features

Modell: ORI241210160
Degree of protection: IP67
Protection against overheating and reverse polarity: Yes
Wide range of input voltage: da 15V a 40V
Casing in blue color

Warranty

2 Year Warranty

Certifications

Specifiche Elettriche e Meccaniche

Input voltage range 15-40V VDC
Stop Voltage 13V
Starting voltage 14V
Internal consumption 20 mA
DC output 12V +/- 3%
Maximum output current 10A
Operating Temperature Range -20°C a 70°C
Efficiency 93%
Weight 300g
Dimensions (h x w x d) in mm 74 x 74 x 32 mm


Dimensioni


Assembly instructions:

The converter is completely encapsulated with an IP67 rating that is:

Waterproof, resistant to water and dust. Its die-cast casing and the electronics of its printed circuit board is completely covered with resin so as to protect it.




Downloads

  Data Sheet EN [LINK]
  Multilingual Product Manual [LINK]
  Certification of Conformity EN [LINK]

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
ORI241210260
8719076048435
