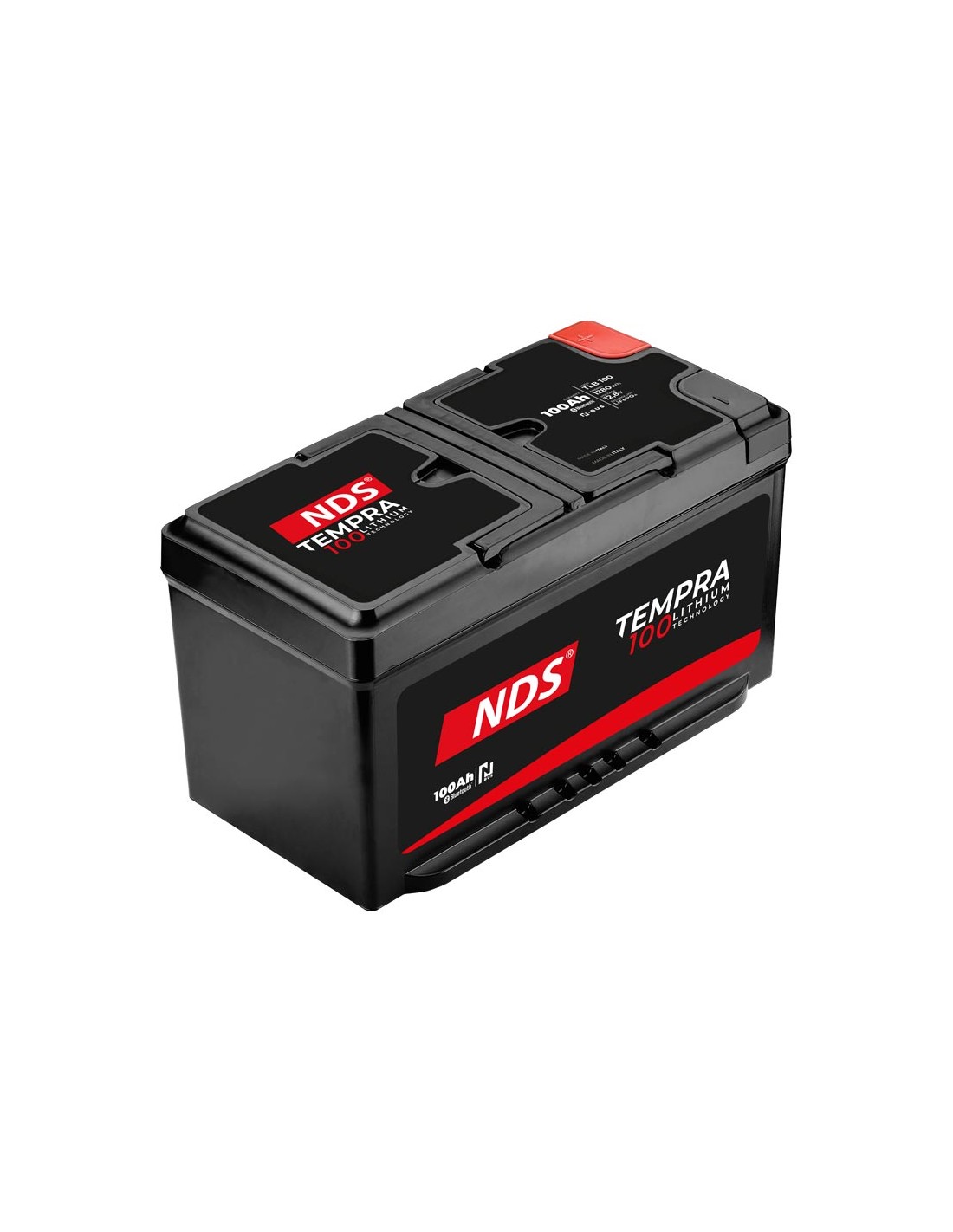

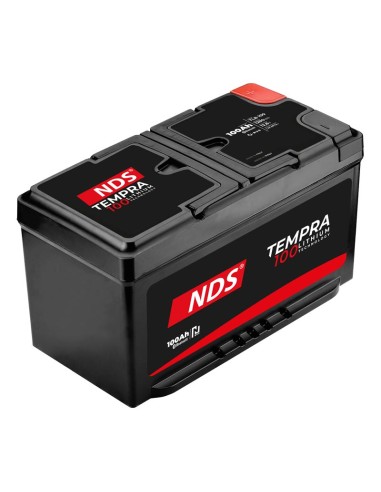

LiFePO4 quencing lithium battery NDS DOMETIC 100Ah 12.8Vdc
TEMPRA LITHIUM BATTERY is the new generation top of the range Lithium LiFePO4 battery, designed and produced entirely in Italy.
The TEMPRA battery has the best power-to-weight ratio on the market, achieved thanks to the new NDS HDP cells which allow you to concentrate a lot of power in a small space.
The safety systems of the new BMS also include optimal charge management, so it is possible to connect the TEMPRA battery to any charger, even if designed for lead batteries.
The charge management and the Smart Balance of the BMS make the cells always efficient and performing over time.
Main features
- Fast charge: the TEMPRA battery accepts super-fast recharges, up to 1C, just turn on the vehicle engine for 30 minutes to ensure a day of autonomy;
- Zero maintenance: internal chemistry and electronics combine to make this type of battery completely maintenance-free;
- 70% less weight: the high density HDP NDS cells with chemistry (LiFePO4), make the TEMPRA a concentrate of power;
- High number of cycles: it is possible to reach 3000 cycles with a depth of discharge of 80%, but by avoiding excessive discharges, they can reach up to 5000;
- Resistant to heavy loads: up to 4 hours with active air conditioning and up to 50% more autonomy than the classic lithium battery;
- Safe and reliable.
Technical features
Model | TLB 100 |
Nominal tension | 12.8Vdc |
Capacity | 100Ah |
Max maximum recommended discharge | 100A |
Maximum maximum discharge supported | 200A / 60sec |
Maximum charging current supported | 100A / 1C |
Operating temperature while charging | -10°C / +60°C |
Discharge operating temperature | -20°C / +60°C |
Weight | 12.8kg |
Dimension | 341 x 176 x 190mm |
- Capacity (Ah)
- 100Ah
- Nominal Voltage V
- 12.8V
- Overall dimension
- 341 x 176 x 190mm
- Typology
- Lithium
