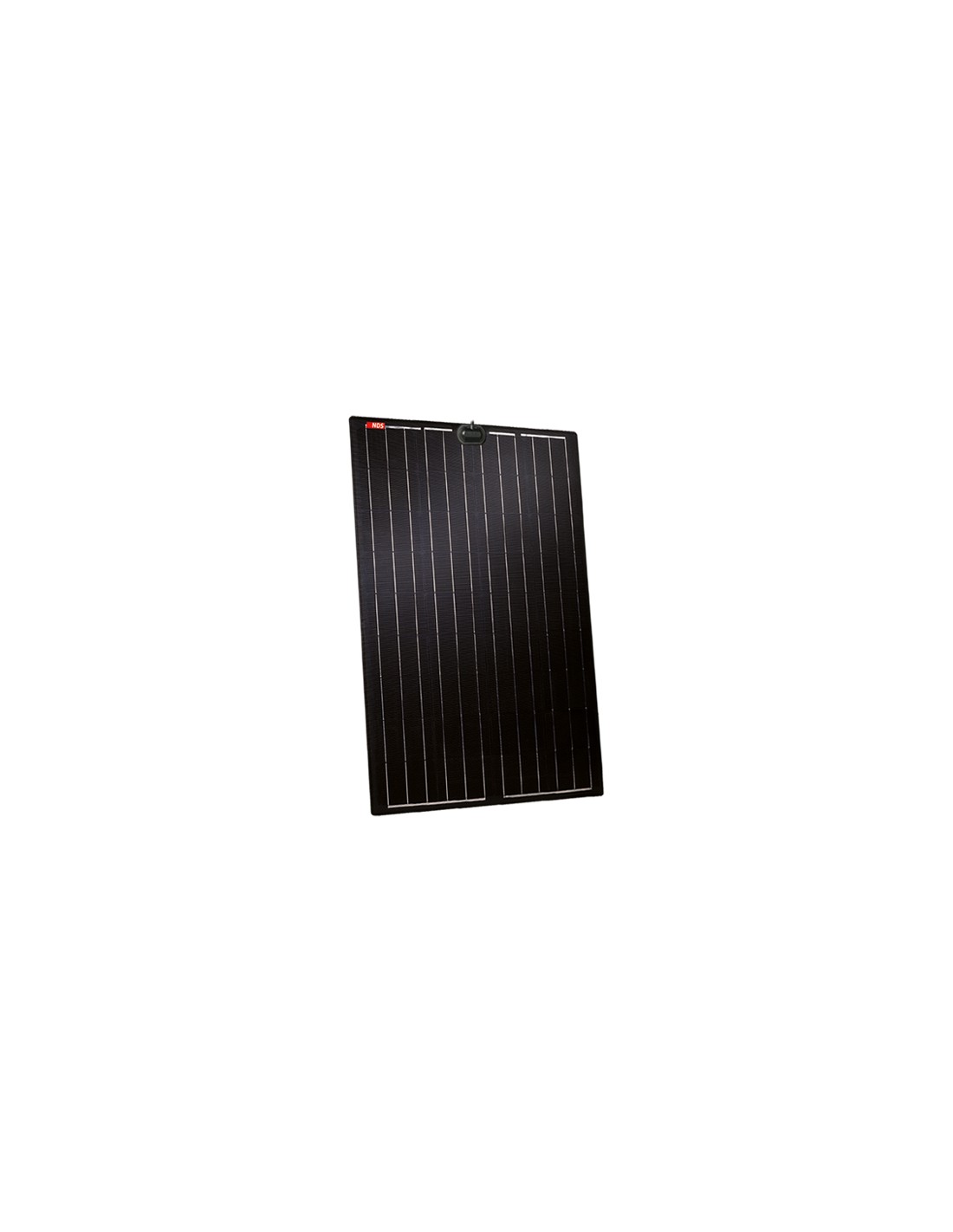

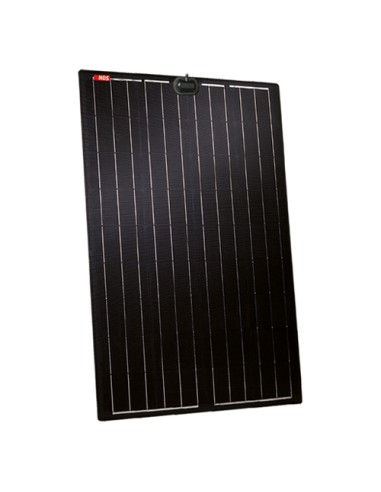

160W monocrystalline NDS Dometic Lighsolar photovoltaic solar panel camper
LSE160BF
€406.73
VAT included
10 %
€369.75 Vat excl.
LIGHTSOLAR is the range of solar panels, “Glass & Frameless” designed for applications where weight, thickness and resistance represent fundamental characteristics.
160W 12V monocrystalline NDS Dometic Lighsolar photovoltaic solar panel
Features
LIGHTSOLAR is the range of solar panels, “Glass & Frameless” designed for applications where weight, thickness and resistance represent fundamental characteristics. The cells of these monocrystalline panels are inserted in an exclusive multilayer architecture: the upper layer is a plastic polymer called ETFE which is highly resistant to corrosion and damage from atmospheric agents, so much so that it can be defined as self-repairing.
The surface of the panel, always exposed to scratches from tree branches, hail, sharp surfaces or other accidental impacts, is able to self-model itself, returning to its initial ideal shape for capturing the sun's rays.
In the lower part of the structure there is a PCB sheet to better contain and dissipate the heat generated by the cells and give the panel such strength as to make it perfect even in nautical applications, where it is possible to step on the panel.
Technical features
| TECHNICAL SPECIFICATIONS | |
| Number of cells | 36 |
| Nominal tension | 12V |
| P.Max | 160WP±3% |
| Open circuit voltage | 23.3V |
| Short circuit current | 8.72A |
| Max power voltage | 19.8V |
| Current Max power | 8.08A |
| Length 6m cable | 2×2.5mm² |
| Dimensions | 1253 x 673 x 4 mm |
| Weight | 5.82 Kg |
- Nominal Output (Pmax) W
- 160W
- Nominal Voltage V
- 12V
- Connector Type
- MC4 o connettori compatibili
- Type Panel
- Semi Flexible
- Cell type
- Monocrystalline
- Number of cells
- 36
- Dimensions
- 1253 x 673 x 4 mm
