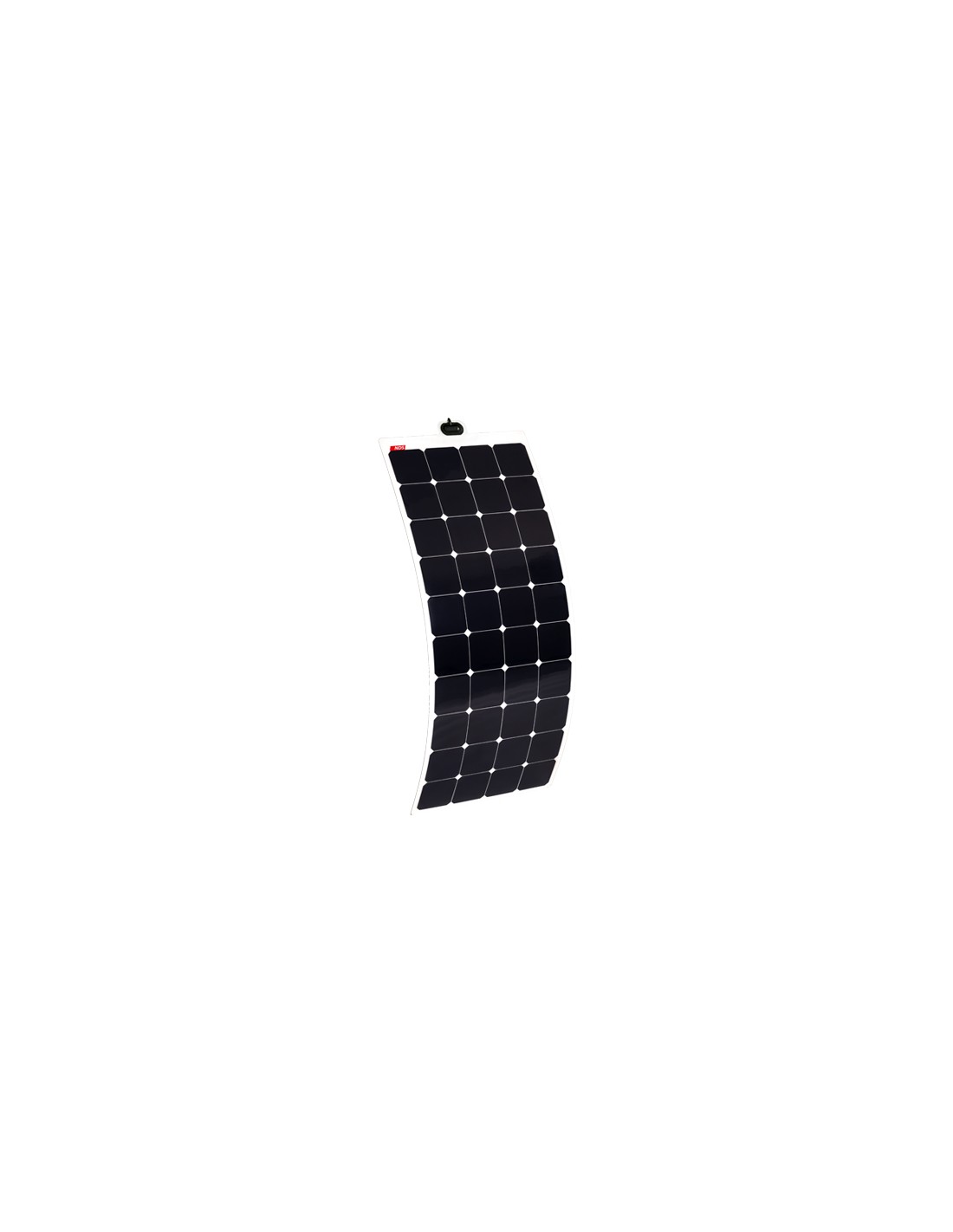

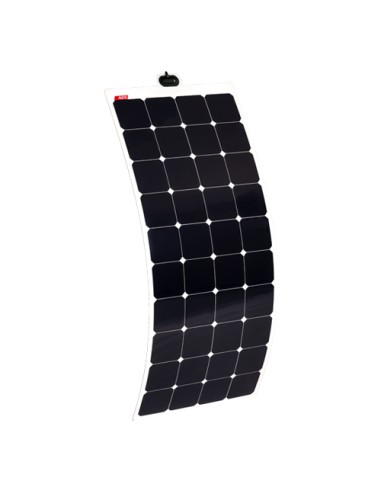

140W monocrystalline NDS Dometic Solarflex photovoltaic solar panel camper
SFS140WP
€457.88
VAT included
10 %
€416.25 Vat excl.
SOLARFLEXEVO adapts to non-linear surfaces thanks to a high flexibility index and provides maximum performance with the smallest possible size.
140W 12V monocrystalline NDS Dometic Solarflex photovoltaic solar panel
Features
SOLARFLEXEVO adapts to non-linear surfaces thanks to a high flexibility index and provides maximum performance with the smallest possible size.
SOLARFLEX EVO is the ideal choice in the Nautical and Camper sector, where the yield is optimal.
To guarantee the best results in the smallest possible space, the SOLARFLEXEVO range is built with high-efficiency quality cells.
The greater number of connections and the smaller distance between cells significantly increases the current flow. Greater resistance to micro fractures of the cells.
Each panel is equipped with a special Junction Box: home to the 3 meter long bipolar connection cable, with an external protective sheath resistant to any climatic condition.
Technical features
| TECHNICAL SPECIFICATIONS | |
| Number of cells | 40 |
| Nominal tension | 12V |
| P.Max | 140WP±3% |
| Open circuit voltage | 27V |
| Short circuit current | 6.21A |
| Max power voltage | 23.1V |
| Current Max power | 6.06A |
| Length 6m cable | 2×2.5mm² |
| Dimensions | 1360 x 540 x 2 mm |
| Weight | 2.8 Kg |
- Nominal Output (Pmax) W
- 140W
- Nominal Voltage V
- 12V
- Connector Type
- MC4 o connettori compatibili
- Type Panel
- Semi Flexible
- Cell type
- Monocrystalline
- Number of cells
- 40
- Dimensions
- 1360 x 540 x 2 mm
8370000027942
