€3,337.23 Vat excl.

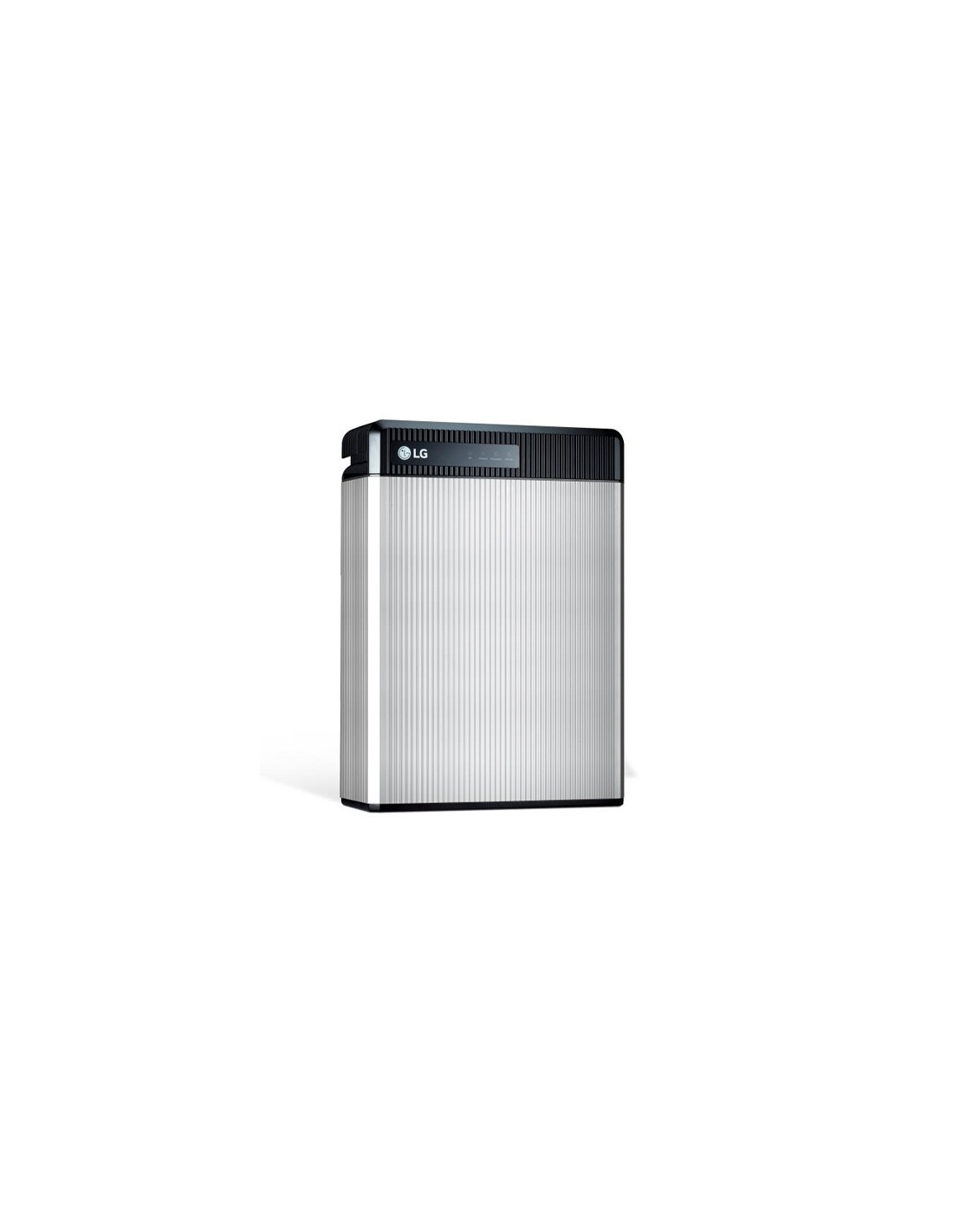

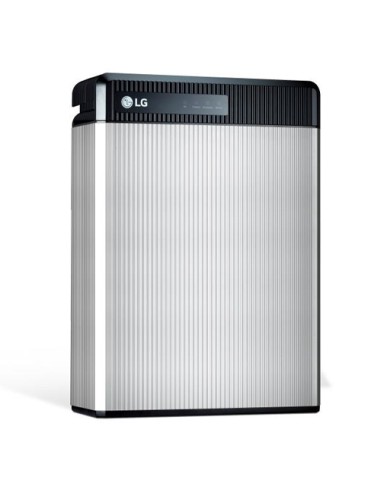

The RESU12 battery pack designed for photovoltaic systems is an easily adaptable energy storage solution.
The RESU12 battery pack designed for photovoltaic systems is an easily adaptable energy storage solution.
| Electrical Characteristics | |||
| Model | RESU12 | ||
| Total Energy Capacity | 13.1 kWh | ||
| Usable Energy Capacity | 11.7 kWh | ||
| Battery Capacity | 252 Ah | ||
| Nominal Voltage | 51.8 V | ||
| Voltage Range | 42.0~58.8 V | ||
| Max . Charge/Discharge Current | 119 A | ||
| Peak current | 166.7 A for 3 sec. | ||
| Max. Charge/Discharge Power | 5.0 kW | ||
| Peak power | 7.0 kWfor 3 sec. | ||
| Peak Power for backup mode | 11.0kW for 3 sec. | ||
| Battery Pack Round Trip Efficiency | >95% under specific conditions | ||
| Communication Interface | CAN 2.0B | ||
| DC Disconnect | Circuit Breaker, Contactor, Fuse | ||
| Operating and mechanical condition | |||
| Installation Location | Indoor / Outdoor (Stand / Wall Mounted) | ||
| Ingress Rating | IP55 | ||
| Operating Temperature | - 10 to 50 C | ||
| Operating Temperature (Recommended) | 15 to 30 C | ||
| Storage Temperature | From 30 to 60 C: : ~ 7 days From 20 to 45 C: ~ 6 moths |
||
| Humidity | 5% to 95% | ||
| Altitude | Max. 2,000m | ||
| Cooling Strategy | Natural Convection | ||
| Dimensions (W x H x D) | 452x 626 x 227mm | ||
| Weight | 98.5kg | ||
| Certifications | |||
| Safety | UL1642 CE / RCM / IEC 62619 / FCC / UL1973 |
||
| Emissions | IEC61000 6 1, IEC61000 6-3 | ||
| Transport | Class 9 | ||
