€2,675.81 Vat excl.

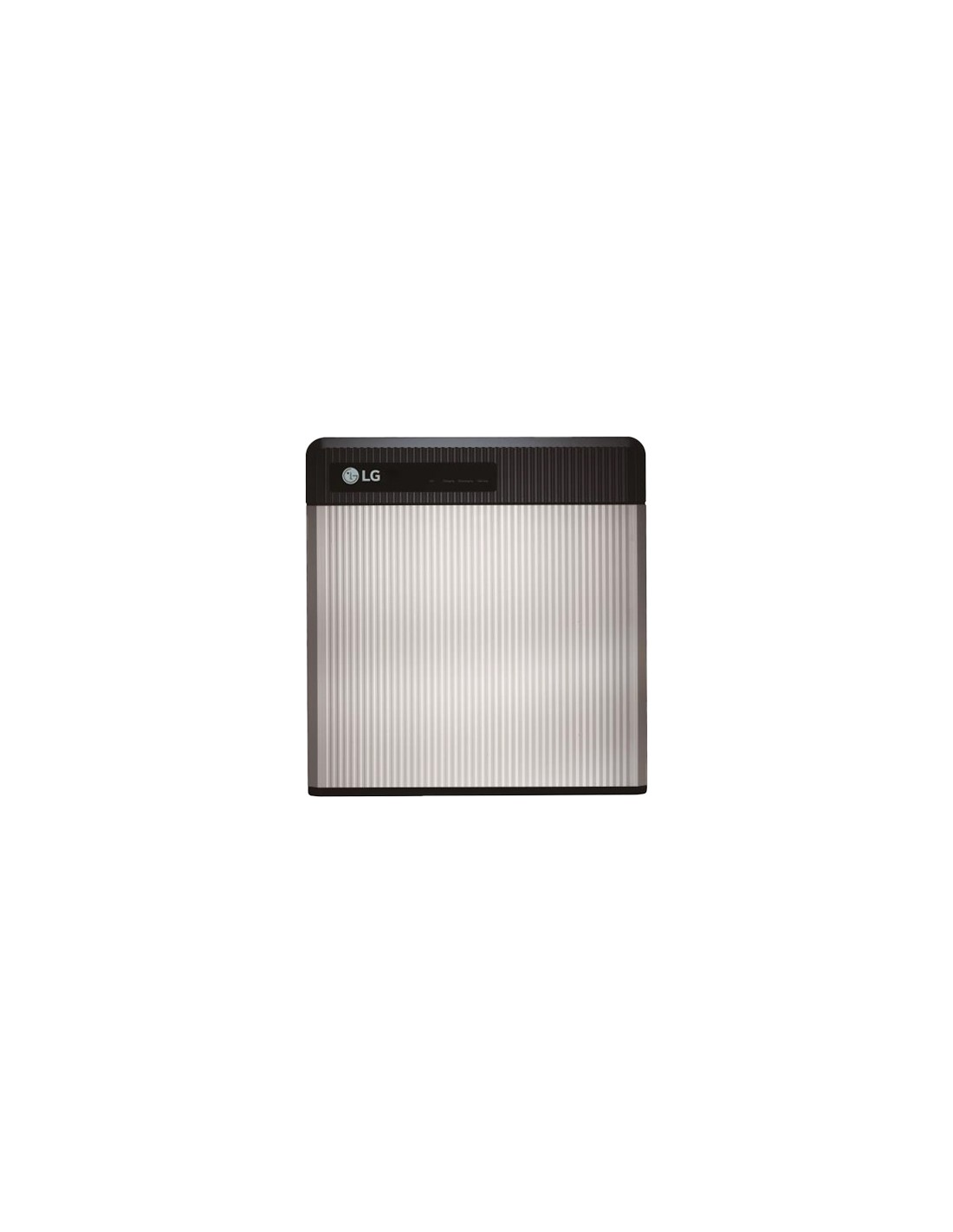

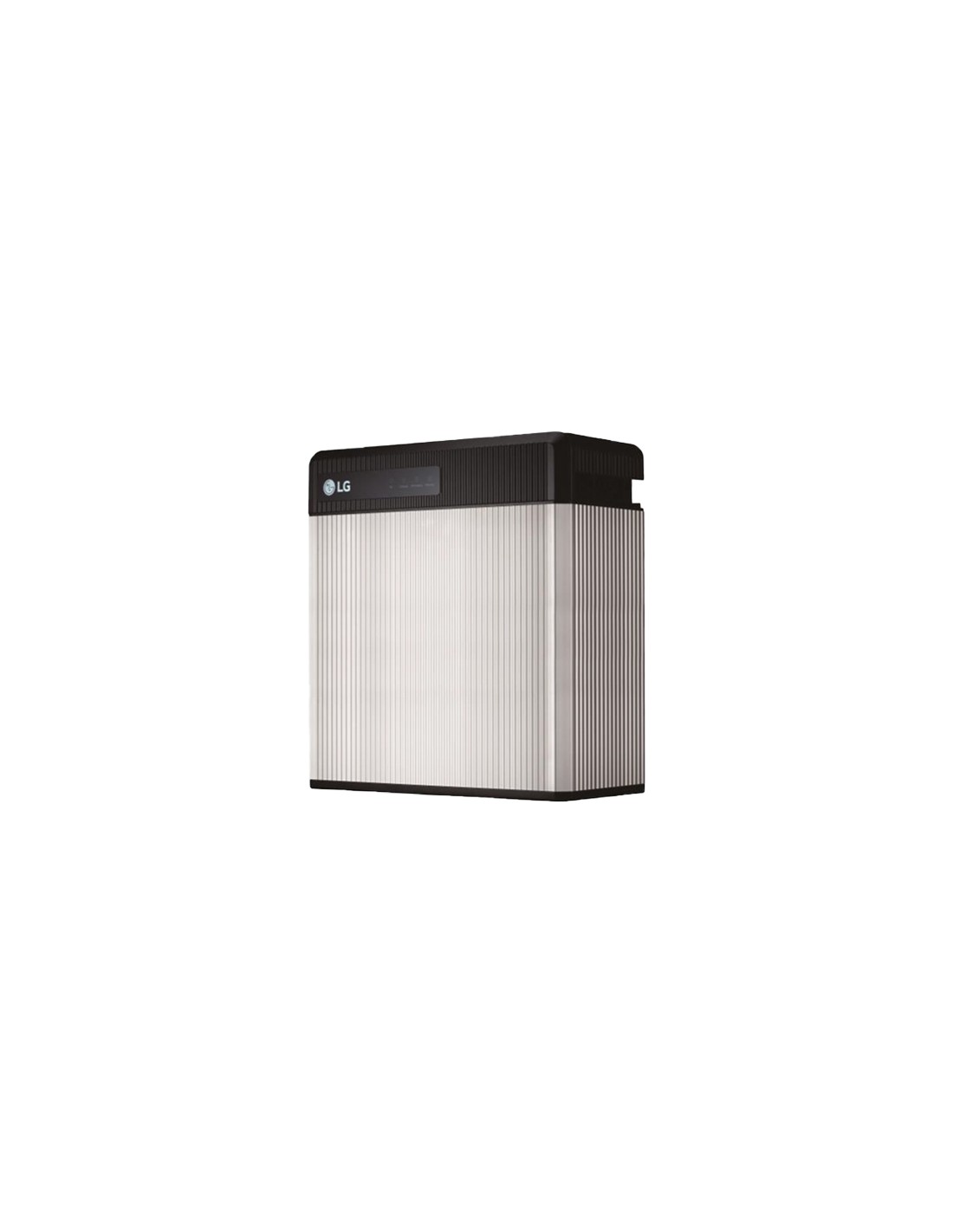

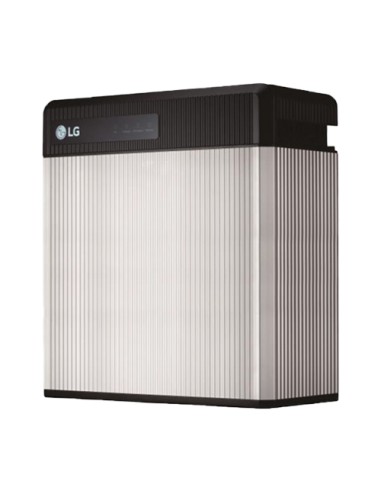

The RESU10 battery pack designed for photovoltaic systems is an easily adaptable energy storage solution.
The RESU10 battery pack designed for photovoltaic systems is an easily adaptable energy storage solution.
| Electrical Characteristics | |||
| Model | RESU10 | ||
| Total Energy Capacity | 9.8 kWh | ||
| Usable Energy Capacity | 8.8 kWh | ||
| Battery Capacity | 189 Ah | ||
| Nominal Voltage | 51.8 V | ||
| Voltage Range | 42.0~58.8 V | ||
| Max . Charge/Discharge Current | 119 A | ||
| Peak current | 166.7 A for 3 sec. | ||
| Max. Charge/Discharge Power | 5.0 kW | ||
| Peak power | 7.0 kWfor 3 sec. | ||
| Battery Pack Round Trip Efficiency | >95% under specific conditions | ||
| Communication Interface | CAN 2.0B | ||
| DC Disconnect | Circuit Breaker, Contactor, Fuse | ||
| Operating and mechanical condition | |||
| Installation Location | Indoor / Outdoor (Stand / Wall Mounted) | ||
| Ingress Rating | IP55 | ||
| Operating Temperature | - 10 to 45 C | ||
| Operating Temperature (Recommended) | 15 to 30 C | ||
| Storage Temperature | From 30 to 60 C: : ~ 7 days From 20 to 45 C: ~ 6 moths |
||
| Humidity | 5% to 95% | ||
| Altitude | Max. 2,000m | ||
| Cooling Strategy | Natural Convection | ||
| Dimensions (W x H x D) | 452x 484 x 227mm | ||
| Weight | 75kg | ||
| Certifications | |||
| Safety | UL1642 CE/ RCM / FCC TUV (IEC 62619 ) / UL1973 |
||
| Emissions | IEC61000 6 1, IEC61000 6 3 | ||
| Transport | Class 9 | ||
