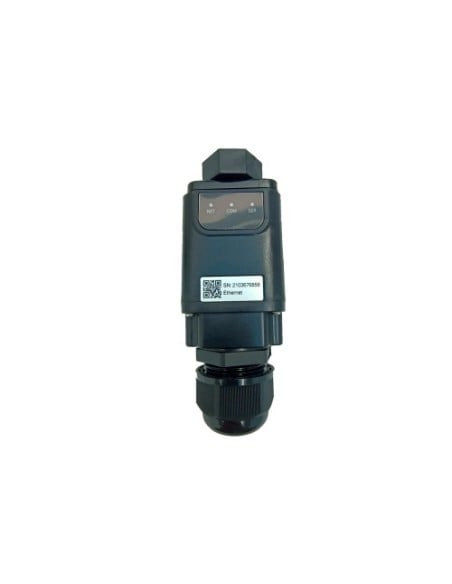

USB Ethernet Kit for Azzurro Inverter Single Phase Three Phase and Hybrid

USB Ethernet Kit for Azzurro Inverter Single Phase Three Phase and Hybrid

USB Ethernet Kit for Azzurro Inverter Single Phase Three Phase and Hybrid

Reference ZSM-ETH-USB

€67.21

VAT included 10 %

€61.10 Vat excl.

The ZCS Azzurro monitoring systems are the ideal solution for the complete control and display of all the important parameters of any PV system. The wide range of options makes it possible to meet any requirement: from basic solutions to more complete and complex monitoring solutions.

Azzurro – USB Ethernet system

Monitoring Systems

The ZCS Azzurro monitoring systems are the ideal solution for the complete control and display of all the important parameters of any PV system. The wide range of options makes it possible to meet any requirement: from basic solutions to more complete and complex monitoring solutions. The most complete monitoring solutions allow connecting external devices and a separate power supply unit for monitoring not only the inverters, but also the consumption of the entire system at all hours of the day and night.

SIMPLE AND RELIABLE

Communication protocols with automatic inverters
Possibility to monitor up to 31 inverters

EASY INSTALLATION

Plug-and-play installation
Easy to access and easy to configure

For more details, download the following documents:

Datasheet: [Download]

TECHNICAL FEATURES

General data
Installation	On the mechanics of the inverter (dedicated slot)
Communication with inverter	USB
Number of inverters that can be connected	1
Power Supply	Internal by inverter
Optional buffer battery	No
Configuration	No configuration required
Connection with APP/Portal	Ethernet
Other communication ports	No
Additional features	No
List of compatible inverters	3000TL-V3/ 3000TLM-V3/ 3680TLM-V3/ 4000TLM-V3/ 4600TLM-V3/ 5000TLM-V3/ 6000TLM-V3/ 3.3 KTL-V3/ 6.6 KTL-V3/ 8.8KTL-V3/ 11KTL-V3/12KTL-V3/ 15000TLV3/ 17000TL-V3/ 20000TL-V3/ 22000TL-V3/ 24000TL-V3/ 80KTL-LV/100KTL-LV/110KTL-LV/ 100KTL-HV/125KTL-HV/136KTL-HV/ 3PH HYD 5000 ZSS/ 3PH HYD 6000 ZSS/ 3PHHYD 8000 ZSS/3PH HYD 10000 ZSS/3PH HYD 15000 ZSS/3PH HYD 20000 ZSS/ 1PH HYD/ 3000 ZSS HP/ 1PH HYD 4000 ZSS HP/ 1PH HYD 5000 ZSS HP/ 1PH HYD 6000 ZSSHP/ 25-50 KTL-V3/ 60-80 KTL V3/ 100-110 KTL V4/ 250-255 KTL HV/ 1 PH HYD 3000 ZP1

Customer service

0882 22 82 47

[email protected]

Communication: USB

EAN13 8370000013266
