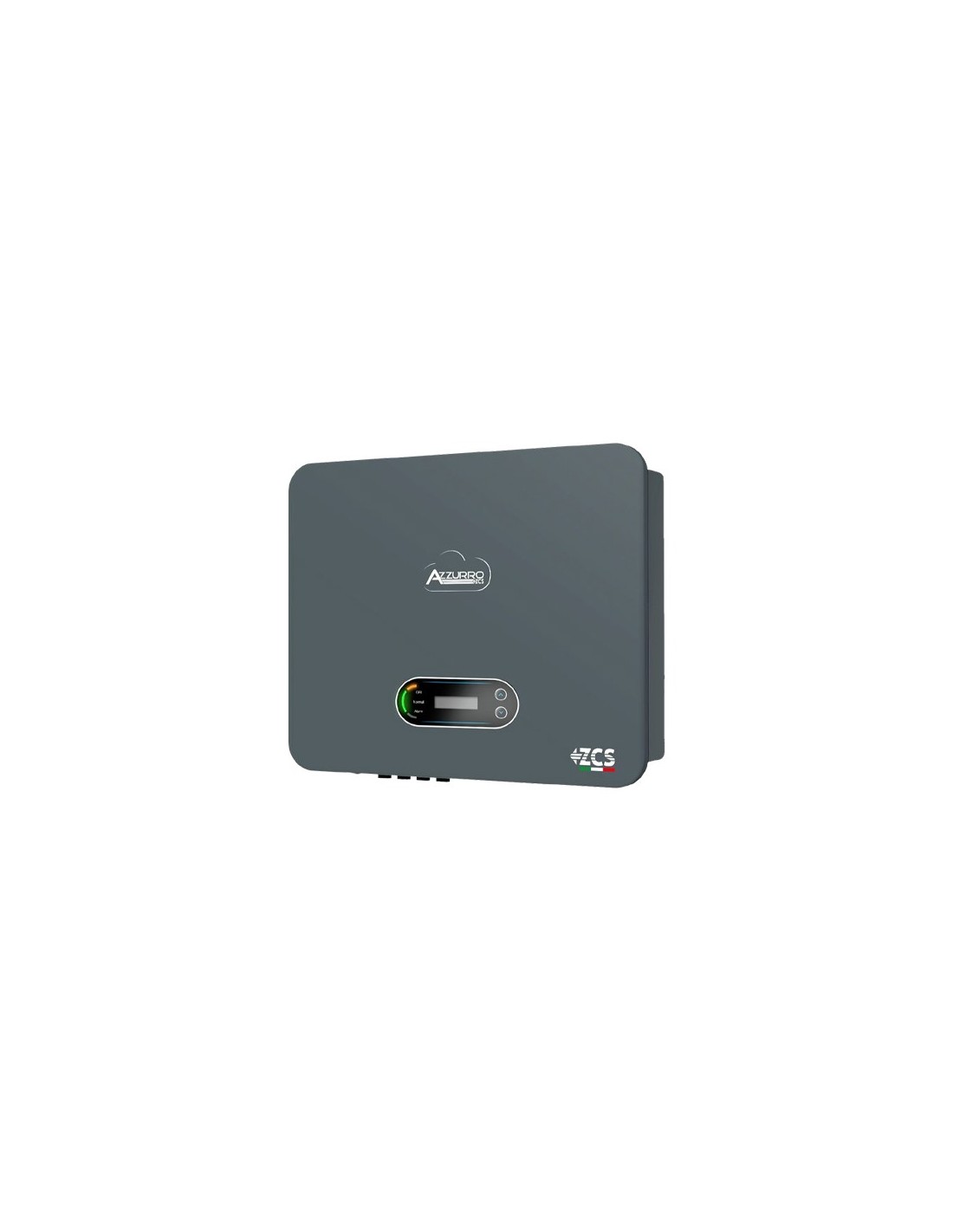

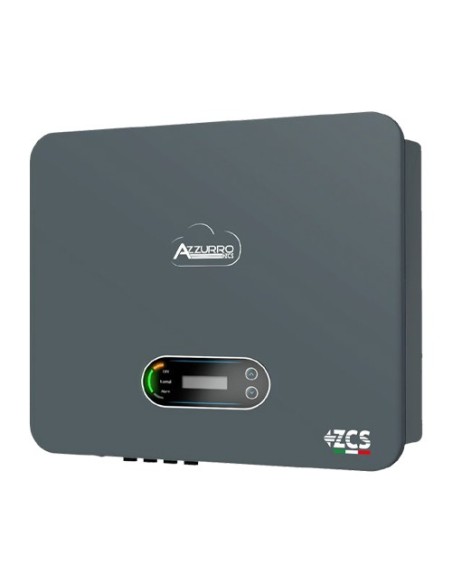

Three phase string inverter 80kW ZZ3-80KTL-V3-S Zucchetti 6 MPPT DC switch
ZZ3-80KTL-V3-S
€4,271.72
VAT included
10 %
€3,883.38 Vat excl.
The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.
They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.
Three phase string inverter 80kW ZZ3-80KTL-V3-S Zucchetti 6 MPPT
The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.
They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.
Key Benefits
- Maximum efficiency 98.7%;
- Up to 6 independent MPPT with double input section;
- Updates and diagnostics via USB;
- 10-year ZCS warranty;
- "Zero Entry" function in the network;
- Reactive power management capability;
- Wide input operating range from 180V to 1000V also suitable for installations with small strings.
For more details, download the following documents:
- Datasheet inverter: [Download]
- User Manual inverter: [Download]
TECHNICAL FEATURES
| DC input data | |
| Typical DC power | 96000 Wp |
| Maximum DC power on each MPPT | 24000 Wp |
| Independent MPPTs/Strings each MPPT | 6/2 |
| Maximum DC voltage | 1100V |
| Start-up voltage | 200V |
| Nominal DC voltage | 620V |
| MPPT range in DC | 180V-1000V |
| DC voltage range at full load | 550-1000V |
| Maximum DC input current each MPPT | 32A |
| Maximum absolute DC input current each MPPT | 40A |
| AC output data | |
| Rated AC Power | 80000W |
| Maximum AC Power | 88000W |
| Maximum AC current each phase | 133.3A |
| Connection type/Rated grid voltage | Three-phase 3PH/N/PE 220V/230V/240V (PH-N); 380V/400V/415V (PH-PH) or Three Phase 3PH/PE 380V/400V/415V (PH-PH) |
| Efficiency | |
| Maximum efficiency | 98.7% |
| MPPT efficiency | >99.9% |
| Weighted efficiency (EURO) | 98.2% |
| Consumption at night | <1W |
| Protections | |
| Internal interface protection | No |
| Safety protections | Anti islanding, RCMU, Ground Fault Monitoring |
| Reverse polarity protection DC | Yes |
| DC circuit breaker | Integrated |
| Integrated dischargers | AC/DC: Type 2 standard |
| Standard | |
| EMC | EN 61000-6-1/2/3/4, |
| Safety standard | IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2 |
| Network connection standard | Certificates and connection standards available on www.zcsazzurro.com |
| Communication | |
| Comunication interfaces (optional) | Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB, Bluetooth |
| General information | |
| Topology | Transformless |
| Environmental protection class | IP65 |
| Noise level | < 60dB @ 1mt |
| Weight | 50Kg |
| Cooling system | Forced convection by fans |
| Dimensions (H*W*L) | 687 x 561 x 275 mm |
| Display | LCD |
- MPPT number
- 6
- Typology
- Three-phase
- Inverter power
- 80kW
- Manufacturer Inverter
- ZCS Azzurro
