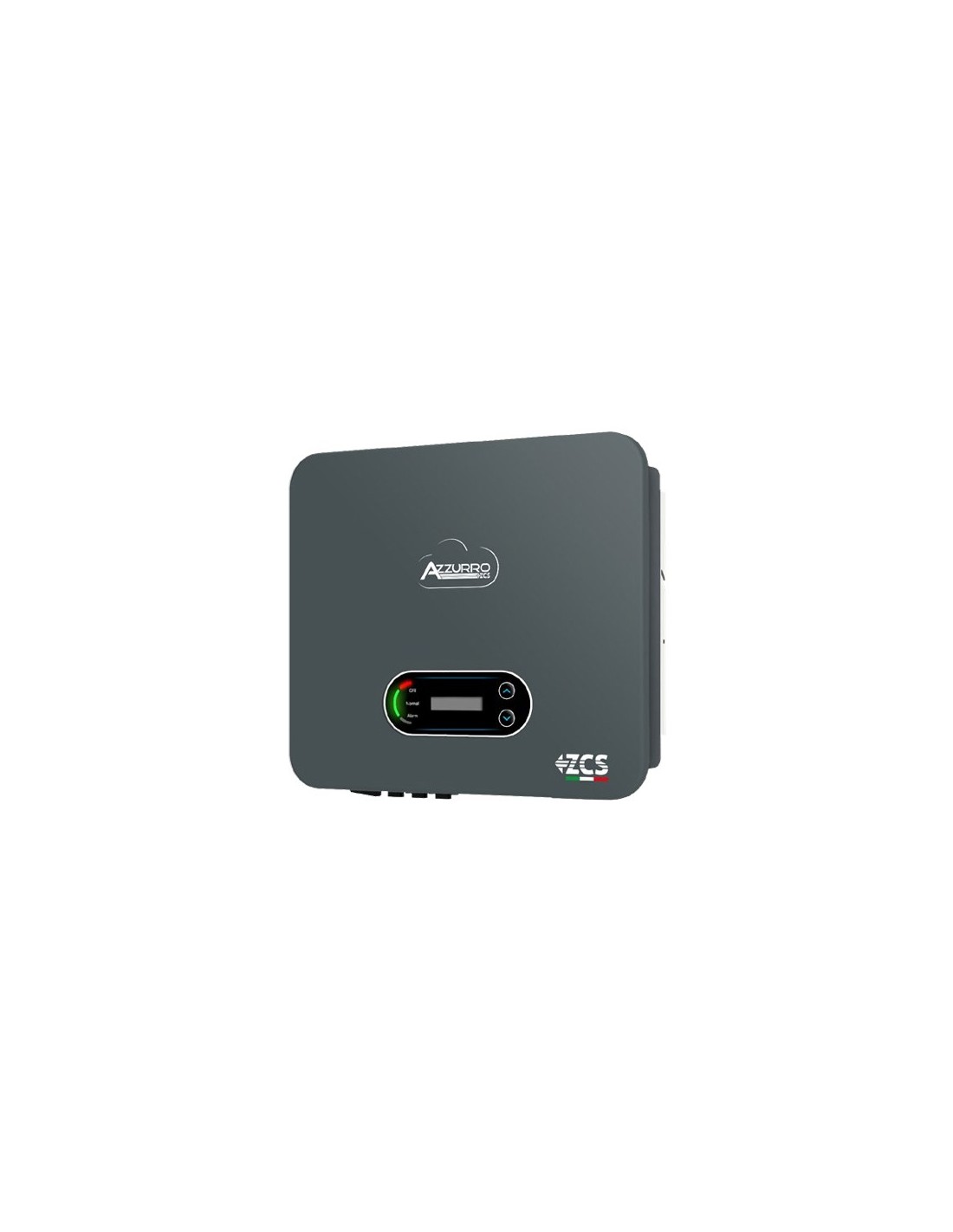

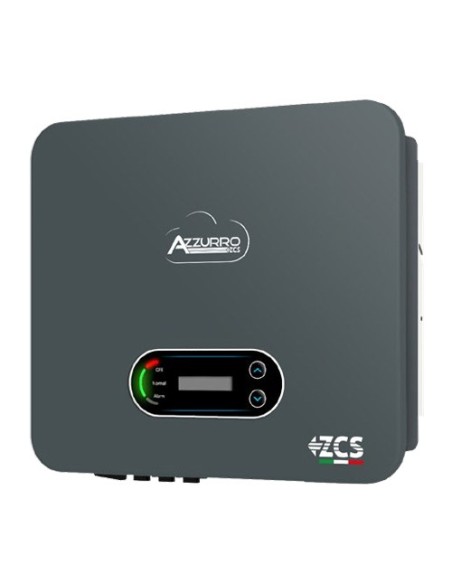

Three phase string inverter 12kW ZZ3-12KTL-V3-S Zucchetti 2 MPPT DC switch
Three phase string inverter 12kW ZZ3-12KTL-V3-S Zucchetti 2 MPPT DC switch

Three phase string inverter 12kW ZZ3-12KTL-V3-S Zucchetti 2 MPPT DC switch

ZZ3-12KTL-V3-S
€1,227.37
VAT included 10 %

€1,115.79 Vat excl.

The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.

They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.



Three phase string inverter 12kW ZZ3-12KTL-V3-S Zucchetti 2 MPPT

The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.

They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.

Key Benefits

  • Maximum yield 98.5%;
  • Dual input section with independent MPPTs;
  • Updates and diagnostics via USB;
  • “Zero Grid Feed-in” functionality;
  • Possibility to manage reactive power;
  • Wide operating input range from 140V to 1000V also suitable for smallsized string systems.

For more details, download the following documents:

TECHNICAL FEATURES

DC input data
Typical DC power  14400W
Maximum DC power on each MPPT 6850W
Independent MPPTs/Strings each MPPT 2/2
Maximum DC voltage 1100V
Start-up voltage 160V
Nominal DC voltage 650V
MPPT range in DC 140V-1000V
DC voltage range at full load 420V-850V
Maximum DC input current each MPPT 30A/15A
Maximum absolute DC input current each MPPT 45A/22.5A
AC output data
Rated AC Power 12000W
Maximum AC Power 13200VA
Maximum AC current each phase 20A
Connection type/Rated grid voltage Three-phase 3PH/N/PE 220V/230V/240V (PH-N); 380V/400V/415V (PH-PH) or Three-phase 3PH/PE 380V/400V/415V (PH-PH)
Efficiency
Maximum efficiency 98.5%
MPPT efficiency >99.9%
Weighted efficiency (EURO) 98%
Consumption at night <1W
Protections
Internal interface protection No
Safety protections Anti islanding, RCMU, Ground Fault Monitoring
Reverse polarity protection DC Yes
DC circuit breaker Integrated
Integrated dischargers AC/DC MOV: Type 2 standard
Standard
EMC EN 61000-6-1/2/3/4,
Safety standard IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2
Network connection standard Certificates and connection standards available on www.zcsazzurro.com
Communication
Comunication interfaces (optional) Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB, Bluetooth
General information
Topology Transformless
Environmental protection class IP65
Noise level < 40dB @ 1mt
Weight 18Kg
Cooling system Natural convection
Dimensions (H*W*L) 430 x 385 x 182mm
Display LCD


Customer service

0882 22 82 47
[email protected]

MPPT number
2
Typology
Three-phase
Inverter power
12kW
Manufacturer Inverter
ZCS Azzurro
8370000039488
