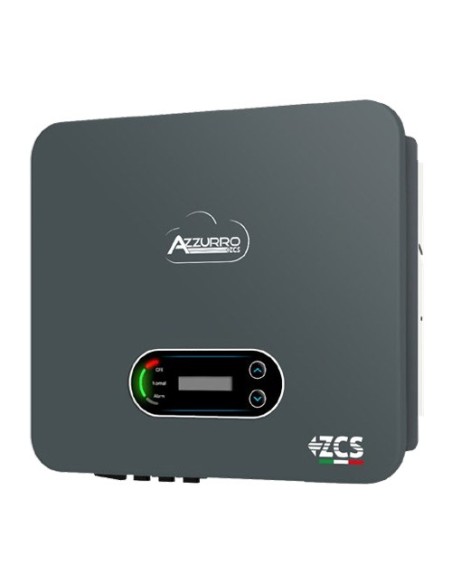

Three phase string inverter 11kW ZZ3-11KTL-V3-S Zucchetti 2 MPPT DC switch

Three phase string inverter 11kW ZZ3-11KTL-V3-S Zucchetti 2 MPPT DC switch

Three phase string inverter 11kW ZZ3-11KTL-V3-S Zucchetti 2 MPPT DC switch

Reference ZZ3-11KTL-V3-S

Last items in stock

€1,172.09

VAT included 10 %

€1,065.54 Vat excl.

The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.

They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.

Three phase string inverter 11kW ZZ3-11KTL-V3-S Zucchetti 2 MPPT

The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.

They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.

Key Benefits

Maximum yield 98.5%;
Dual input section with independent MPPTs;
Updates and diagnostics via USB;
“Zero Grid Feed-in” functionality;
Possibility to manage reactive power;
Wide operating input range from 140V to 1000V also suitable for smallsized string systems.

For more details, download the following documents:

Datasheet inverter: [Download]
User Manual inverter: [Download]

TECHNICAL FEATURES

DC input data
Typical DC power	13200W
Maximum DC power on each MPPT	6200W
Independent MPPTs/Strings each MPPT	2/1
Maximum DC voltage	1100V
Start-up voltage	160V
Nominal DC voltage	650V
MPPT range in DC	140V-1000V
DC voltage range at full load	420V-850V
Maximum DC input current each MPPT	15A
Maximum absolute DC input current each MPPT	22.5A
AC output data
Rated AC Power	10000W
Maximum AC Power	11000VA
Maximum AC current each phase	16.7A
Connection type/Rated grid voltage	Three-phase 3PH/N/PE 220V/230V/240V (PH-N); 380V/400V/415V (PH-PH) or Three-phase 3PH/PE 380V/400V/415V (PH-PH)
Efficiency
Maximum efficiency	98.5%
MPPT efficiency	>99.9%
Weighted efficiency (EURO)	98%
Consumption at night	<1W
Protections
Internal interface protection	Yes
Safety protections	Anti islanding, RCMU, Ground Fault Monitoring
Reverse polarity protection DC	Yes
DC circuit breaker	Integrated
Integrated dischargers	AC/DC MOV: Type 2 standard
Standard
EMC	EN 61000-6-1/2/3/4,
Safety standard	IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2
Network connection standard	Certificates and connection standards available on www.zcsazzurro.com
Communication
Comunication interfaces (optional)	Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB, Bluetooth
General information
Topology	Transformless
Environmental protection class	IP65
Noise level	< 40dB @ 1mt
Weight	18Kg
Cooling system	Natural convection
*Dimensions (HWL)*	430 x 385 x 182mm
Display	LCD

Customer service

0882 22 82 47

[email protected]

MPPT number: 2
Typology: Three-phase
Inverter power: 11kW
Manufacturer Inverter: ZCS Azzurro

EAN13 8370000002451
