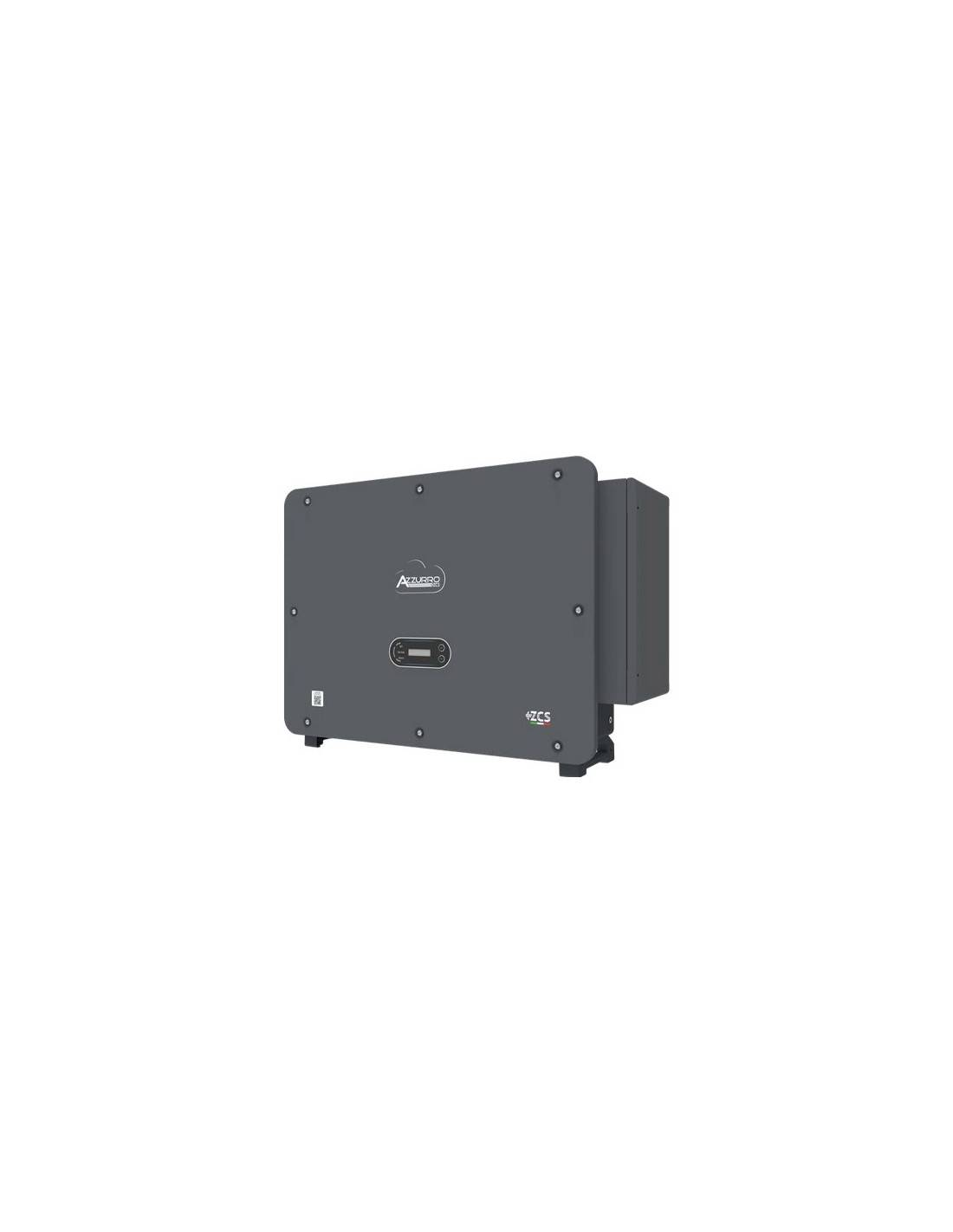

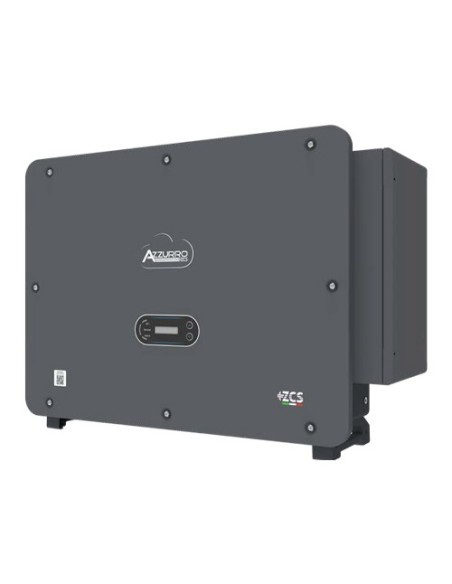

Three phase string inverter 100kW ZZ3-100KTL-HV Zucchetti 10 MPPT DC switch
ZZ3-100KTL-HV
€6,051.19
VAT included
10 %
€5,501.08 Vat excl.
The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.
They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.
Three phase string inverter 100kW ZZ3-100KTL-HV Zucchetti 10 MPPT
The three-phase ZCS Azzurro inverters are the best solution for medium-sized photovoltaic systems, for commercial or industrial applications.
Thanks to the advanced ZCS technology, the three-phase Azzurro series inverters are efficient, versatile and performing.
They are easy to configure, safe and robust and able to adapt to any type of requirement both on new systems and in retrofit on existing systems.
Key Benefits
- Maximum efficiency 98.6%;
- Degree of protection IP66;
- Integrated Arc Fault Circuit Interruption and String Fault Monitoring;
- Forced convection with controlled speed cooling;
- PID Recovery function available;
- Class II surge protective devices (AC and DC);
- 10-year ZCS warranty;
- Operating range from 180V to 1000v and up to 10 independent MPPT channels for better configuration flexibility.
For more details, download the following documents:
- Datasheet inverter: [Download]
- User Manual inverter: [Download]
TECHNICAL FEATURES
| DC input data | |
| Typical DC power | 120000W |
| Maximum DC power on each MPPT | 20000W |
| Independent MPPTs/Strings each MPPT | 10/2 |
| Maximum DC voltage | 1100V |
| Start-up voltage | 200V |
| Nominal DC voltage | 680V |
| MPPT range in DC | 180V-1000V |
| DC voltage range at full load | 550V-850V |
| Maximum DC input current each MPPT | 26A |
| Maximum absolute DC input current each MPPT | 40A |
| AC output data | |
| Rated AC Power | 100000W |
| Maximum AC Power | 110kVA |
| Maximum AC current each phase | 128A |
| Connection type/Rated grid voltage | Three-phase 3PH/PE 288 (PH-N); 500V (PH-PH) |
| Efficiency | |
| Maximum efficiency | 98.8% |
| MPPT efficiency | >99.9% |
| Weighted efficiency (EURO) | 98.5% |
| Consumption at night | <1W |
| Protections | |
| Internal interface protection | No |
| Safety protections | Anti islanding, RCMU, Ground Fault Monitoring |
| Reverse polarity protection DC | Yes |
| DC circuit breaker | Integrated |
| Integrated dischargers | AC/DC: Type 2 standard |
| Standard | |
| EMC | EN 61000-6-2/4, EN 61000-3-11/12 |
| Safety standard | IEC 62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30) |
| Network connection standard | Certificates and connection standards available on www.zcsazzurro.com |
| Communication | |
| Comunication interfaces (optional) | Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB, Bluetooth |
| General information | |
| Topology | Transformless |
| Environmental protection class | IP66 |
| Noise level | < 60dB @ 1mt |
| Weight | 72Kg |
| Cooling system | Forced convection by fans |
| Dimensions (H*W*L) | 1051 x 660 x 340 mm |
| Display | led indicators + bluetooth + app |
- MPPT number
- 10
- Typology
- Three-phase
- Inverter power
- 100kW
- Manufacturer Inverter
- ZCS Azzurro
