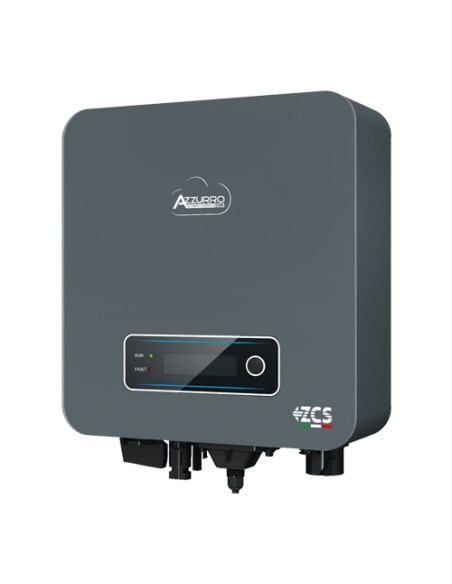

Single phase string inverter 3kW ZCS Azzurro ZZ1 TL MPPT with disconnector
ZZ1-3000TL-V3-S
Last items in stock
€462.79
VAT included
10 %
€420.72 Vat excl.
ZCS AZZURRO, THE INVERTER THAT LOOKS AT THE FUTURE
Azzurro is the latest generation inverter that combines and integrates ZCS “IT” and “smart” intelligence with the most advanced electronic technology to create a new concept of photovoltaic inverters.
Azzurro – single-phase string inverter 3000TL-V3-S
The ZCS Azzurro single-phase inverters are the ideal solution for small photovoltaic systems in residential or commercial buildings.
The 3kW inverter is characterized by its small size, which makes it handy and easy to install. Thanks to the wide input range, it is simple to configure and adapts to every type of need both on new systems and in retrofit on existing systems.
The graphic or alphanumeric display (depending on the model) allows you to consult the inverter data, while Wi-Fi connectivity allows remote monitoring anytime and anywhere.
Features
- Maximum performance 97.7%;
- Single MPPT channel;
- Fast and safe installation with all required parts included;
- Ultra compact;
- Wide input operating range from 50V to 550V.
For more details, download the following documents:
- User Manual inverter: [Download]
- Datasheet inverter: [Download]
Technical features
DC input data (photovoltaic) | |
Maximum DC Power | 3300W |
No. of independent MPPTs / No. of strings per MPPT | 1/1 |
Maximum DC input voltage | 550V |
Start-up voltage | 70V |
Rated Input voltage | 360V |
MPPT DC voltage range | 50V-550V |
DC voltage range at full load | 275V-500V |
Maximum input current for each MPPT | 12A |
Maximum absolute current for each MPPT | 15A |
AC Output data | |
Rated AC power | 3000W |
Maximum AC Power | 33000VA |
Maximum AC current | 14.5A |
Connection type/Rated voltage | Single-phase L/N/PE / 220V, 230V, 240V |
Efficiency | |
Maximum efficiency | 97.7% |
MPPT efficiency | >99.9% |
Consumption at night | <1W |
Standard | |
EMC | EN 61000-6-1/3, EN 61000-3-2/3/11/12 |
Safety standard | IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2 |
Communication | |
Communication interfaces | Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB |
Additional inputs or connections | Input for current sensor connection |
General information | |
Environmental protection class | IP65 |
Noise level | < 25dB @ 1m |
Weight | 6.3Kg |
Cooling | Natural convection |
Dimensions (H x L x D) | 321 x 260 x 131 mm |
Display | LCD |
- MPPT number
- 1
- Typology
- Single-phase
- Inverter power
- 3.0kW
- Manufacturer Inverter
- ZCS Azzurro
8370000013853
