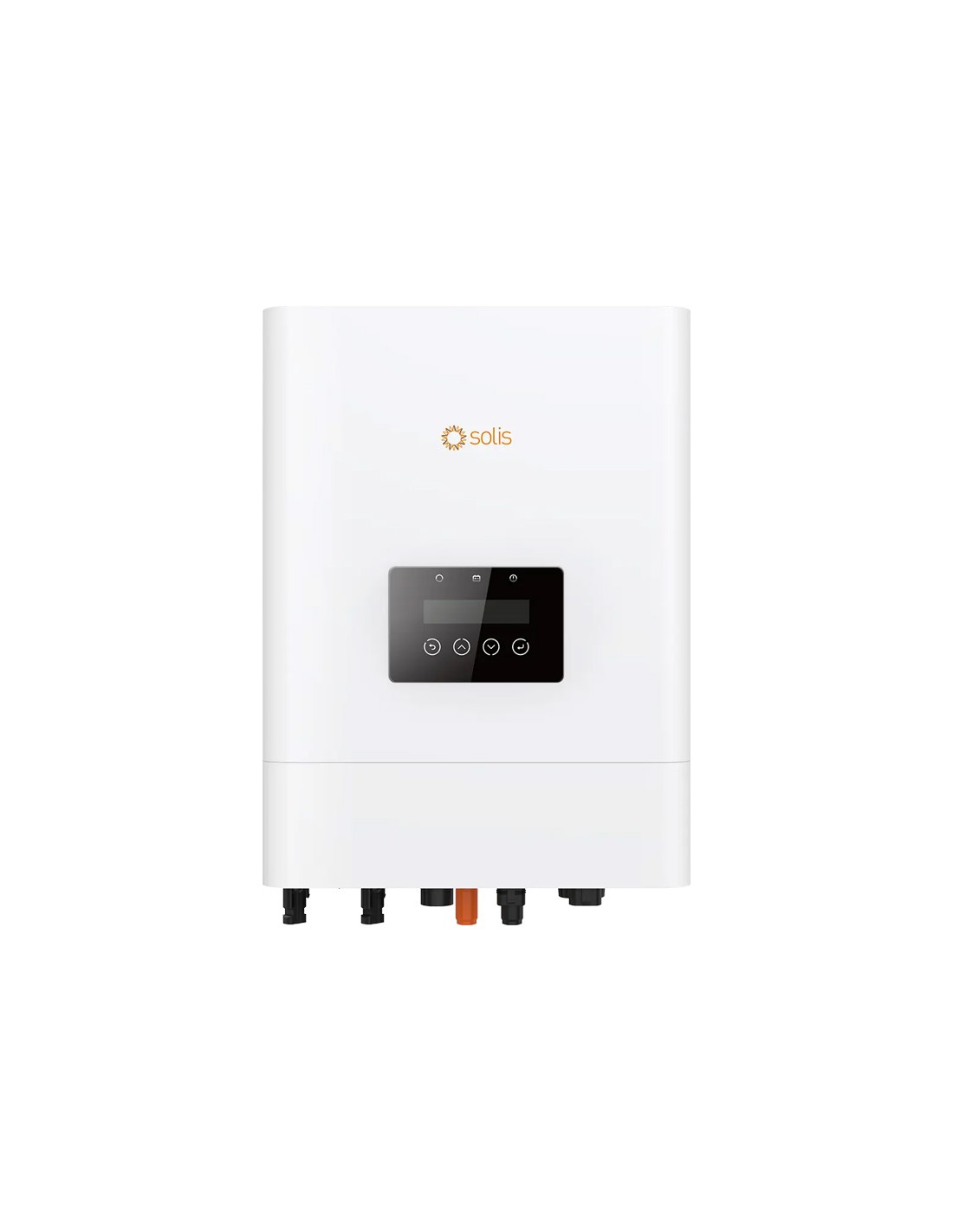

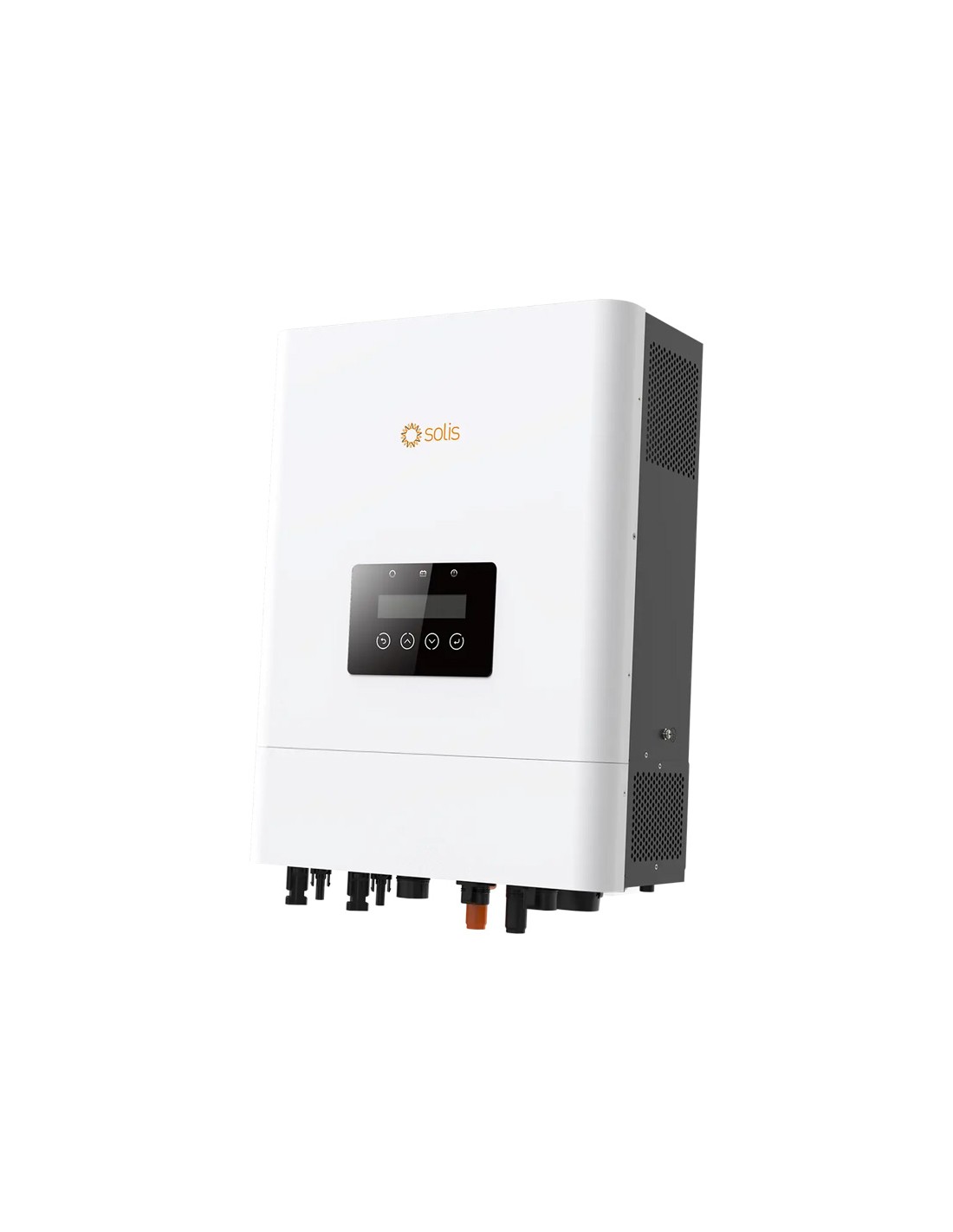

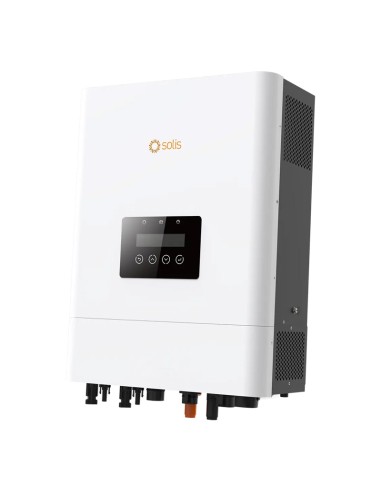

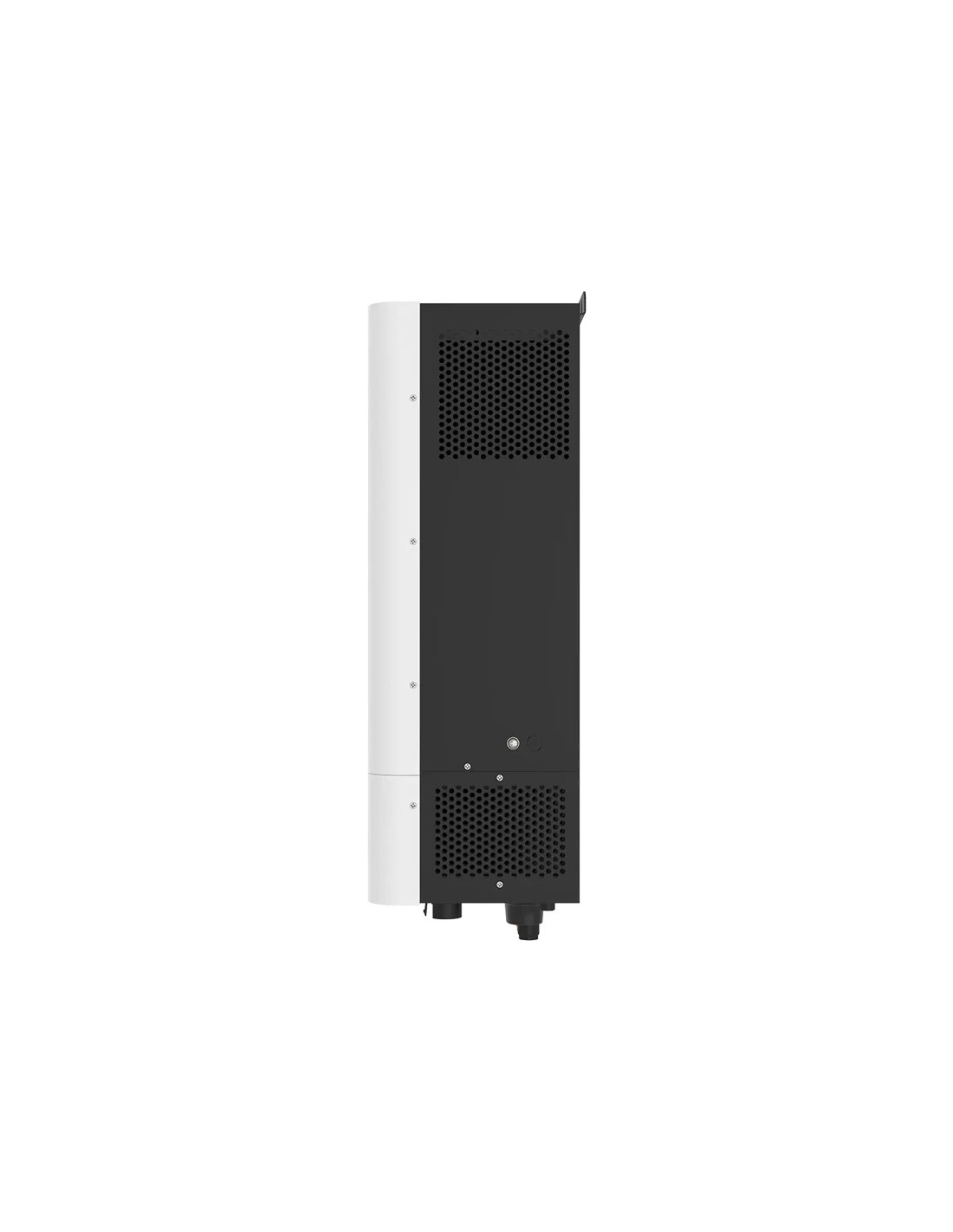

Off-Grid single phase inverter 5kW Solis S6 EO1P5K 1 MPPT
S6-EO1PK-48-EU series off-grid energy storage inverters are suitable for off-grid areas or areas with unstable power grids. The product supports fast charging and can realize single-phase or three-phase grid to form a high-power energy storage system.
At the same time, it is compatible with generator to provide diversified power supply. The product is easy to install, integrates multiple protections and fault monitoring to ensure the safety of the battery and device.
Main features
- 10 seconds of 200% overload;
- Multiple inverters can work together to form a micro-grid;
- Supports dual backup ports for intelligent control of critical and non-critical loads;
- Supports six different battery charge and discharge settings to reduce electricity bill;
- Supports general setting options for lithium batteries, suitable for non-communicating batteries;
- Compatible with generator to extend the backup time in the event of a power outage.
For more details, download the following documents:
Technical features:
| DC Input (PV Side) |
| Recommended maximum PV input power |
6.5kW |
| Maximum absolute voltage |
500 V |
| Startup voltage |
90 V |
| MPPT voltage range |
90 - 430 V |
| Maximum input current |
16 A / 16 A |
| Maximum short-circuit current |
40 A |
| Maximum PV charging current |
100 A |
| MPPT number / Maximum number of strings |
1 / 2 |
| Battery |
| Battery type |
Lithium-ion / Lead-acid |
| Nominal battery voltage |
40 - 60 V |
| Maximum charge / discharge power |
5 kW / 5 kW |
| Maximum charge / discharge current |
100 A |
| Communication |
CAN |
| Inverter Output |
| Nominal output power |
5 kVA / 5kW |
| Operating phase |
L/N/PE |
| Nominal grid voltage |
230 V ± 1% |
| Nominal grid frequency |
50 Hz / 60 Hz ± 0.1% |
| Peak power |
10 kVA |
| Maximum output current |
25 A |
| Output voltage waveform |
Sine wave |
| Typical transfer time |
10 ms, Maximum 20 ms |
| THDv (@linear load) |
< 3% |
| Peak efficiency (PV-AC) |
96.6% |
| AC Charger (grid port and generator port) |
| Maximum input power |
7kW |
| Nominal input voltage |
L/N/PE, AC 230 V |
| Optional input voltage range |
90 - 280 V |
| AC frequency range |
50 Hz / 60 Hz |
| Maximum input current |
30 A |
| Maximum AC charging current |
80 A |
| Protection |
| Overvoltage protection on output |
Yes |
| Overcurrent protection on output |
Yes |
| Short-circuit protection |
Yes |
| Overload protection |
Yes |
| Temperature protection |
Yes |
| AFCI 2.0 integrated |
Optional |
| General Data |
| Dimensions (W × H × D) |
340 × 495 × 170 mm |
| Weight |
14.1 kg |
| Topology |
High-frequency no isolation |
| Relative humidity |
5% - 95% (Non-condensing) |
| Operating temperature range |
-10 ~ +60°C |
| Storage temperature range |
-25 ~ +60°C |
| Protection class |
IP21 |
| Maximum operating altitude |
2000 m |
| Parallelability |
6 units |
| Safety standards |
IEC 62109, IEC 61000, 55011 |
| Features |

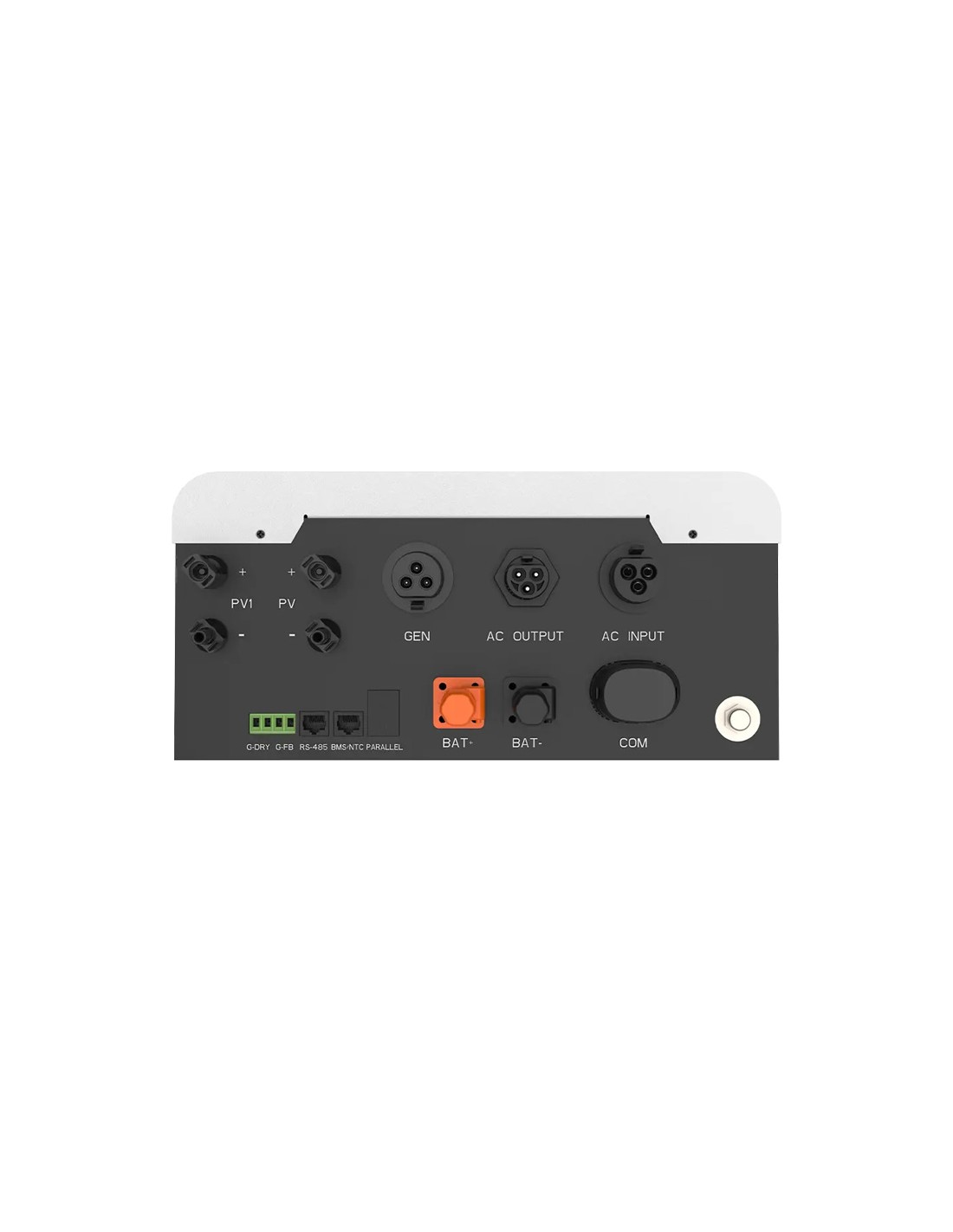

| PV Connection |
MC4 Quick Connector |
| Battery Connection |
Terminal Connectors |
| AC Connection |
Terminal Block |
| Display |
7.0" LCD Display + Bluetooth + App |
| Communication |
CAN, BMS, dry contact, Bluetooth, Optional: Wi-Fi |
