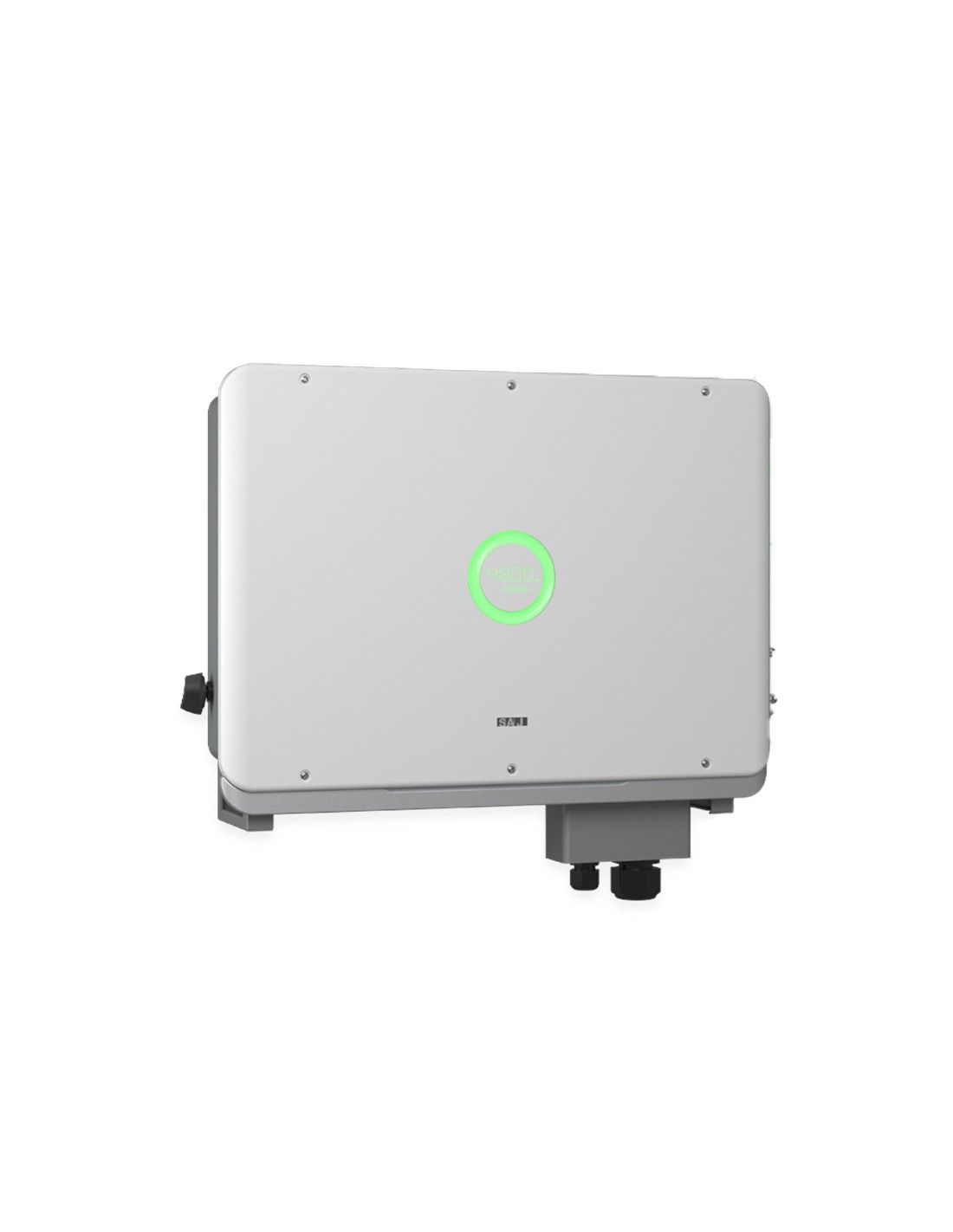

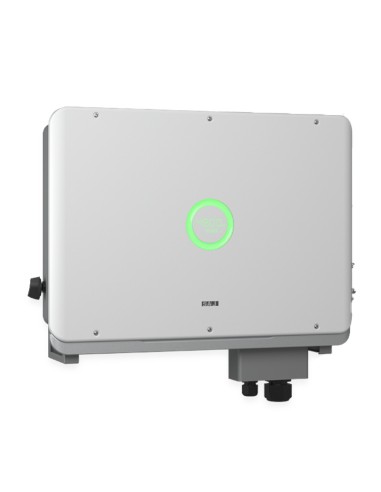

Three-phase string inverter SAJ 6kW R6-6K-T2 double MPPT solar photovoltaic

Three-phase string inverter SAJ 6kW R6-6K-T2 double MPPT solar photovoltaic

Name: Three-phase string inverter SAJ 6kW R6-6K-T2 double MPPT solar photovoltaic
Brand: Saj
SKU: R6-6K-T2
Price: 883.96 EUR
Availability: InStock

Reference R6-6K-T2

€883.96

VAT included 10 %

€803.60 Vat excl.

The R6 series is SAJ's family of grid connected inverters for residential rooftop installations.

Three-phase string inverter SAJ 6kW R6-6K-T2 double MPPT

The R6 series is SAJ's family of grid connected inverters for residential rooftop installations. Lightweight and compact, R6 is easy to install. It supports 16A current to match the main PV panels on the market. With a fanless design, R6 runs in a low noise level to provide a better user experience.
R6 series supports 24-hour load monitoring solution for intelligent energy management.

Features

AFCI (optional);
Built-in AC DC SPD;
String current up to 16A;
110% AC overloading;
Max. Efficiency 98.5%;
24/7 load monitoring (optional).

For more details, download the following documents:

Datasheet: [Download]

Technical features

DC Input
Model	R6-6K-T2
Maximum PV Array Power @STC	9000Wp
Maximum Voltage	1100V
MPPT Voltage Range	160~950V
Nominal Input Voltage	600V
Start-up Voltage	180V
Minimum Input Voltage	150V
Maximum Input Current	16A
Maximum Short-Circuit Current (DC)	19.2A
Number of MPPTs	2
Number of Strings per MPPT	1/1
AC Output (Grid)
Nominal AC Output Power	6000W
Maximum AC Output Power	6600VA
Nominal AC Output Current	8.7A
Maximum Output Current	10A
Nominal AC Voltage / Range	220/380, 230/400, 240/415, 180-280/312-485V
Nominal AC Grid Frequency	50,60 / 45-55,55-65 Hz
Total Harmonic Distortion (THD)	<2%
Efficiency
Maximum Efficiency	98.50%
Euro Efficiency	98.20%
Protections
Internal Overvoltage Protection	Integrated
DC Insulation Resistance Detection	Integrated
Grid Monitoring	Integrated
AC Short Circuit Protection	Integrated
Interface
DC Connections	MC4
AC Connections	Plug-in Connector
Display	LED+(Bluetooth/Wi-Fi+APP)
Communication Mode	Wi-Fi/GPRS/4G (Optional)
General Data
Operating Temperature Range	-40°C to +60°C
Cooling	Natural Convection
Noise [dBA]	<35
Ambient Humidity	0-100% non-condensing
Ingress Protection	IP 65
*Dimensions [HWD]*	391 x 532 x 190 mm
Weight	15 kg
Certifications	IEC62109-1/2, IEC61000-6-1/2/3/4, EN50438, C10/11, IEC62116, IEC61727, RD1699, UNE 206006, UNE 206007, CEI 0-16, CEI O-021, AS4777.2, NBR16149, NBR 16150, VDE-AR-N 4015, VDE 0126-1-1
