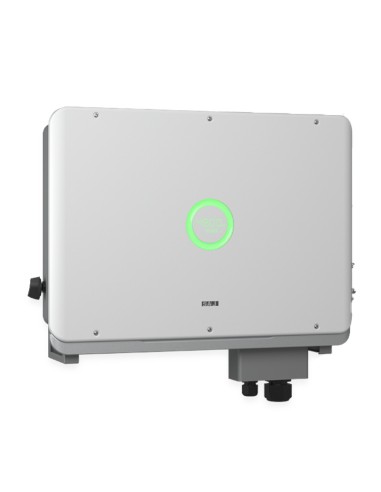

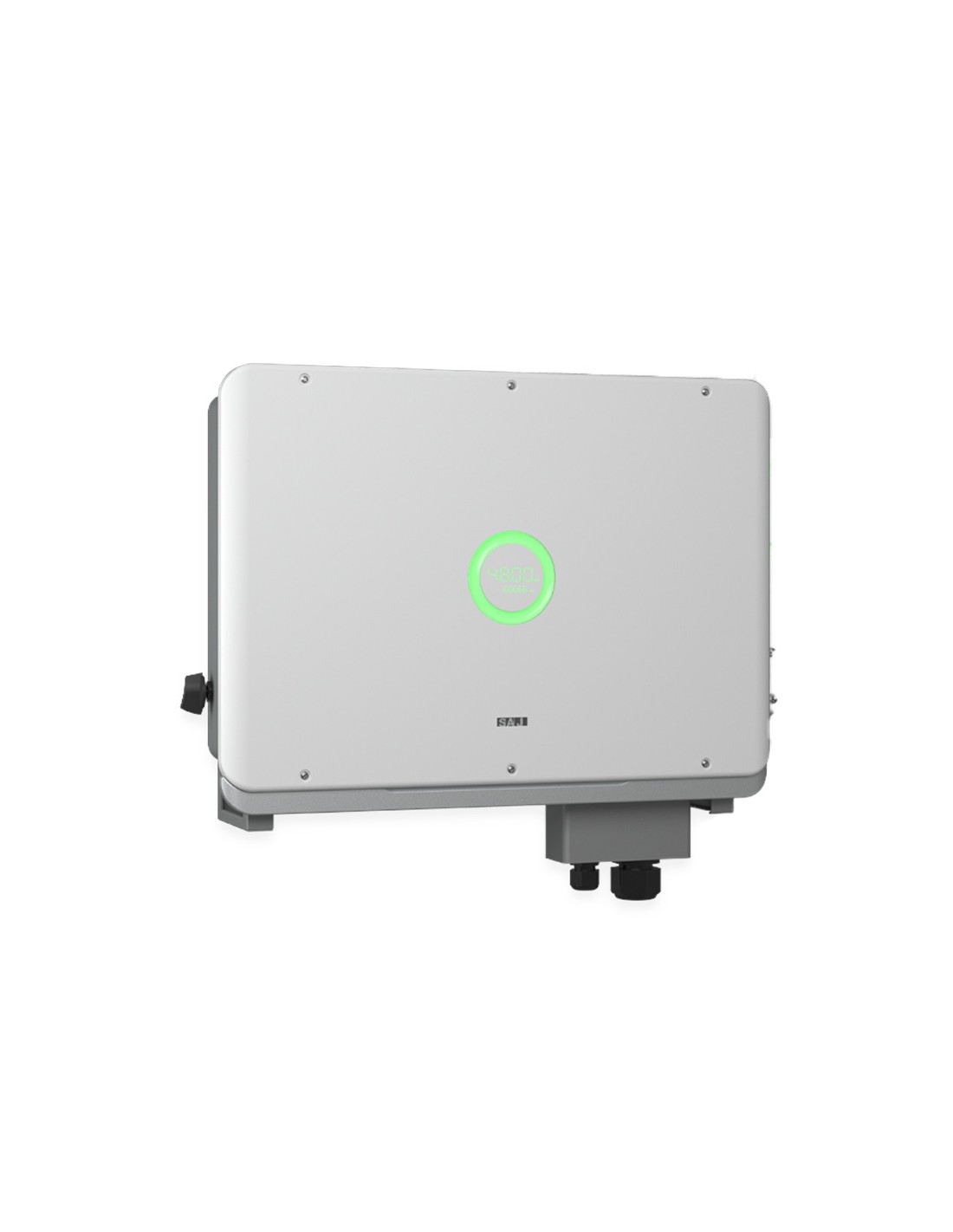

Three-phase string inverter SAJ 20kW R6-20K-T2-32 double MPPT photovoltaic
R6-20K-T2-32
€1,153.46
VAT included
10 %
€1,048.60 Vat excl.
The R6 series is SAJ's family of grid connected inverters for residential rooftop installations.
Three-phase string inverter SAJ 20kW R6-20K-T2-32 double MPPT
The R6 series is SAJ's family of grid connected inverters for residential rooftop installations. Lightweight and compact, R6 is easy to install. It supports 16A current to match the main PV panels on the market. With a fanless design, R6 runs in a low noise level to provide a better user experience.
R6 series supports 24-hour load monitoring solution for intelligent energy management.
Features
- AFCI (optional);
- Built-in AC DC SPD;
- String current up to 16A;
- 110% AC overloading;
- Max. Efficiency 98.8%;
- 24/7 load monitoring (optional).
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| DC Input | |
| Model | R6-20K-T2-32 |
| Max. PV Array Power @STC | 30000Wp |
| Max. DC Voltage | 1100V |
| MPPT Voltage Range | 180~1000V |
| Rated DC Voltage | 600V |
| Start Voltage | 200V |
| Min. DC Voltage | 180V |
| Max. DC Input Current | 32A |
| Max. DC Short Circuit Current | 38.4A |
| No. of MPPTs | 2 |
| No. of Strings per MPPT | 2/2 |
| AC Output (Grid) | |
| Rated AC Power | 20000W |
| Max. Apparent AC Power | 22000VA |
| Rated Output Current @230Vac | 29A |
| Max. Output Current | 33.3A |
| Rated AC Voltage / Range | 220/380, 230/400, 240/415, 180-280/312-485V |
| Nominal AC Output Frequency / Range | 50,60 / 45-55,55-65 Hz |
| Power Factor | 0.8 leading ~ 0.8 lagging |
| Total Harmonic Distortion (THDi) | <3% |
| Max. Efficiency | 98.8% |
| Euro Efficiency | 98.5% |
| Protections | |
| Internal Overvoltage Protection | Integrated |
| DC Insulation Resistance Detection | Integrated |
| Grid Monitoring | Integrated |
| AC Short Circuit Protection | Integrated |
| Interface | |
| DC Connections | MC4/H4 |
| AC Connections | Plug-in Connector |
| Display | LED+APP |
| Communication Mode | Wi-Fi/Ethernet/4G (Optional) |
| General Data | |
| Operating Temperature Range | -40°C to +60°C (45°C to 60°C with derating) |
| Cooling | Intelligent Fan Cooling |
| Ambient Humidity | 0-100% Non-condensing |
| Ingress Protection | IP65 |
| Dimensions [H*W*D] | 409 x 558 x 234.5 mm |
| Weight | 22.5 kg |
| Certifications | IEC 62109-1/2, IEC 61000-6-1/2/3/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, CEI 0-16, CEI O-021, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 |
- MPPT number
- 2
- Typology
- Three-phase
- Inverter power
- 20kW
