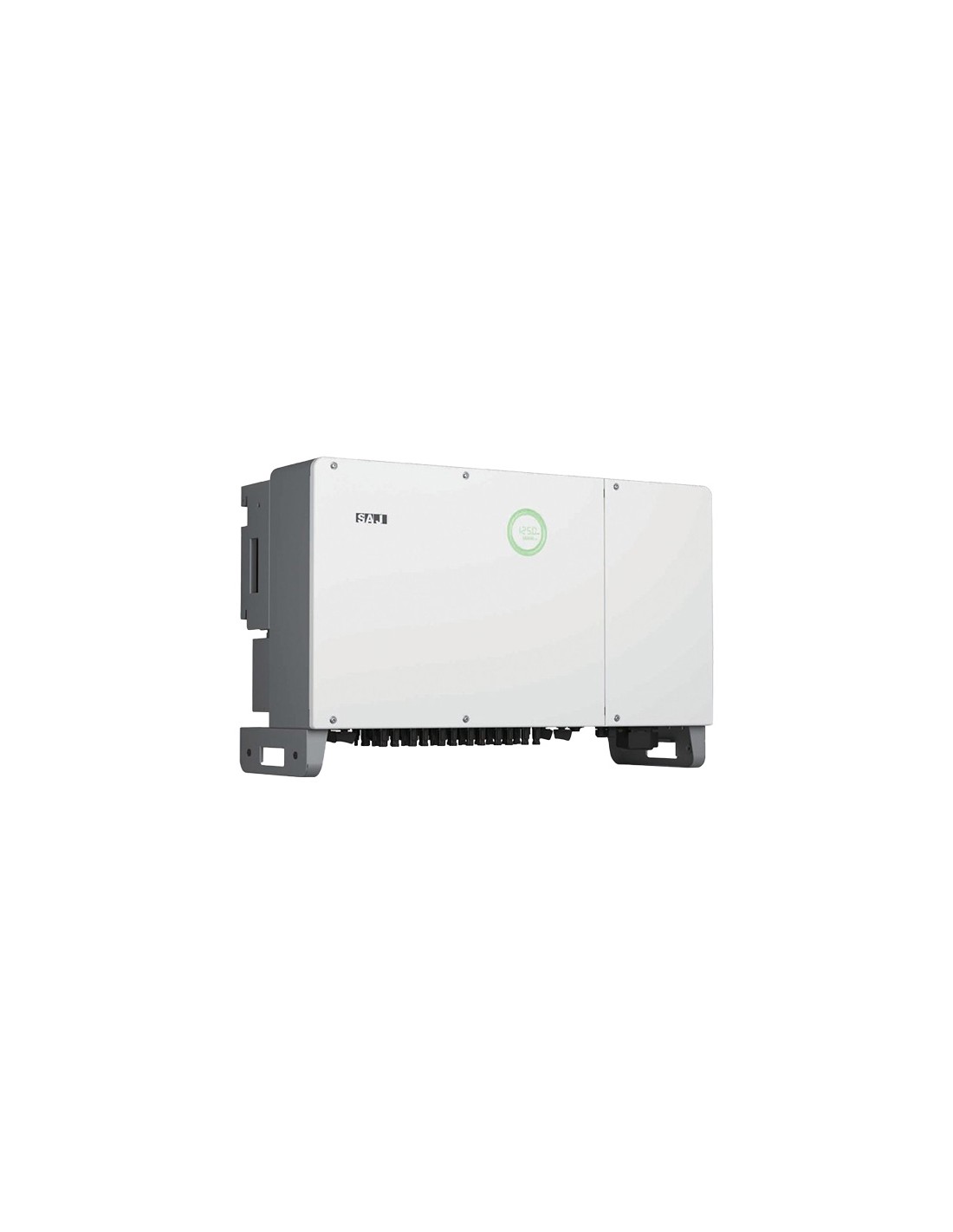

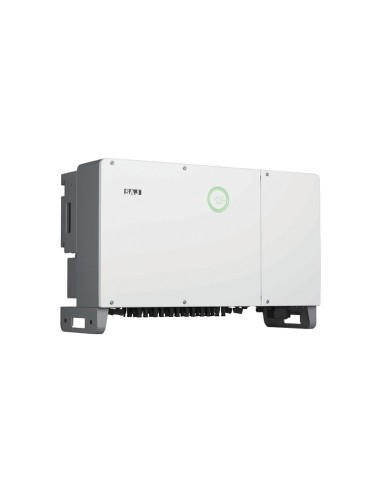

Three Phase String Inverter SAJ 110kW C6-110K-T12 - 12 MPPT Photovoltaic
C6-110K-T12
€4,590.74
VAT included
10 %
€4,173.40 Vat excl.
C6 series is SAJ's grid-connected inverter family.
Three Phase String Inverter SAJ 110kW C6-110K-T12 - 12 MPPT
C6 series supports 24-hour load monitoring solution for smart energy management.
Its features make it safe and reliable and easy and smart to use.
Features
- Type II surge protection, both DC and AC side SAFE AND RELIABLE;
- AFCI (Arc Interruption Circuit Breaker) protection;
- IP66 protection grades and C5 anti-corrosion class;
- Intelligent cooling fan (IP68);
- 24/7 load monitoring;
- Easy upgrade;
- String current up to 15A;
- Maximum efficiency 98.8%;
- 12 MPPT
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| DC Input | |
| Model | C6-110K-T12 |
| Max.PV Array Power [KWp]@STC | 165kWp |
| Maximum Voltage | 1100V |
| MPPT Voltage Range | 180~1000V |
| Nominal Input Voltage | 600V |
| Start-up Voltage | 200V |
| Minimum Input Voltage | 180V |
| Maximum Input Current [A] | 12*30 |
| Maximum Short-Circuit Current [A] | 12*45 |
| Number of MPPTs | 12 |
| Number of Strings per MPPT | 2 |
| AC Output (Grid) | |
| Nominal AC Output Power | 110kW |
| Max.Apparent Power | 121kVA |
| Rated Output Current [A]@230Vac | 158.8A |
| Maximum Output Current | 174.6A |
| Rated AC Voltage/Range [V] | 3+N+PE,230/400 |
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Total Harmonic Distortion (THDi) | <3% |
| Efficiency | |
| Maximum Efficiency | 98.80% |
| Euro Efficiency | 98.50% |
| Protections | |
| Internal Overvoltage Protection | Integrated |
| DC Insulation Resistance Detection | Integrated |
| Grid Monitoring | Integrated |
| AC Short Circuit Protection | Integrated |
| Interface | |
| DC Connections | MC4 |
| AC Connections | OT/DT Terminal(Max.240mm²) |
| Display | LED+APP |
| Communication Mode | Wi-Fi/Ethernet/4G/PLC(Optional) |
| General Data | |
| Operating Temperature Range | -40℃ to +60℃ (45℃ to 60℃ with derating) |
| Cooling | Intelligent Fan cooling |
| Noise [dBA] | <60 |
| Ambient Humidity | 0-100% non-condensing |
| Ingress Protection | IP66 |
| Dimensions [H*W*D] | 660*1045*361 mm |
| Weight | 98kg |
| Certifications | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, AS 4777.2, NBR 16149, NBR 16150 VDE-AR-N 4105, VDE 0126-1-1 |
- MPPT number
- 12
- Typology
- Three-phase
- Inverter power
- 110kW
