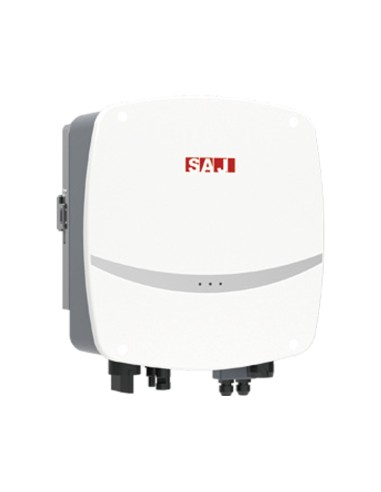

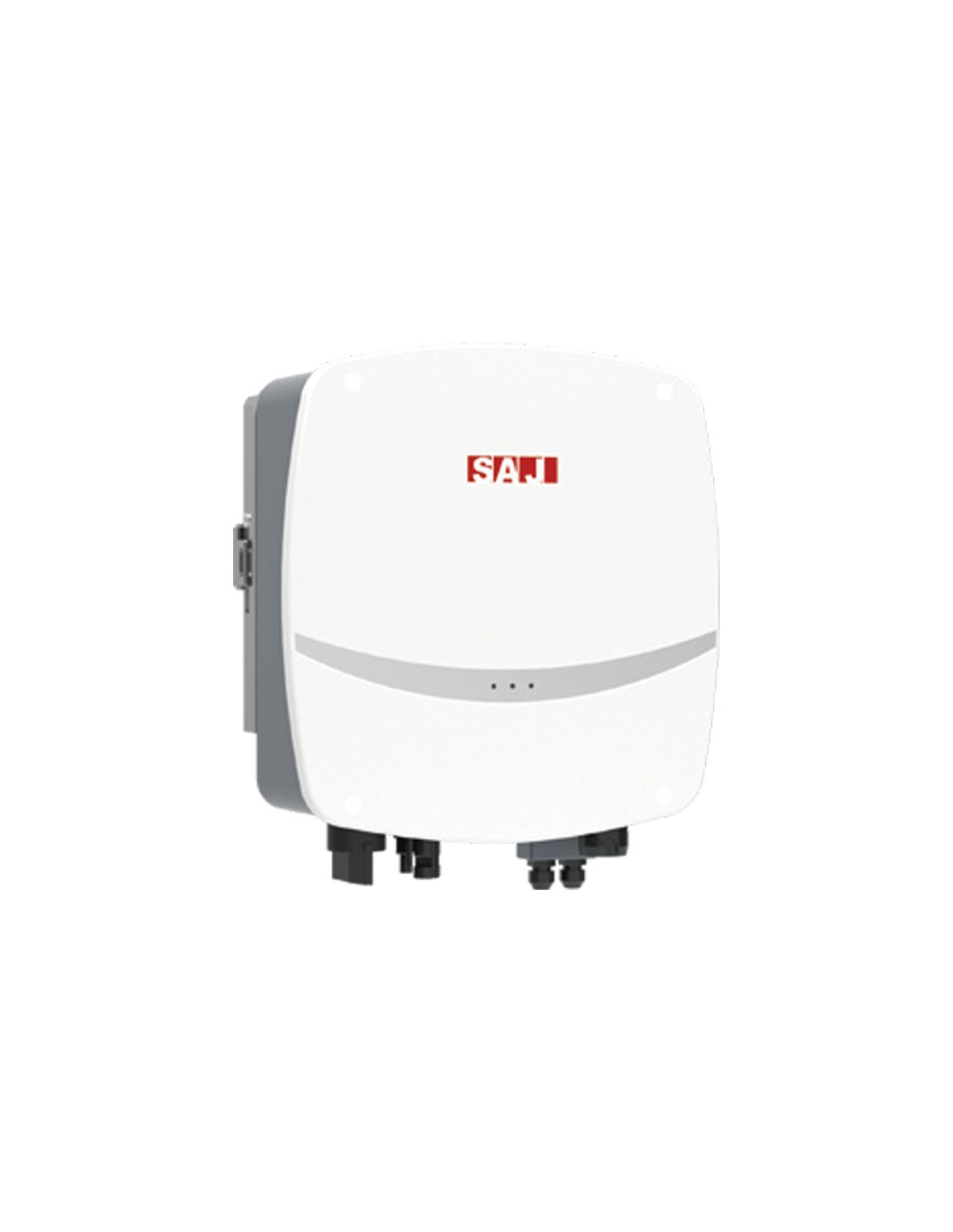

Three-phase string inverter SAJ 10kW R5-10K-T2 double MPPT DC switch

Three-phase string inverter SAJ 10kW R5-10K-T2 double MPPT DC switch

Name: Three-phase string inverter SAJ 10kW R5-10K-T2 double MPPT DC switch
Brand: Saj
SKU: R5-10K-T2-15
Price: 1091.97 EUR
Availability: InStock

Reference R5-10K-T2-15

€1,091.97

VAT included 10 %

€992.70 Vat excl.

The R5 series is SAJ's family of grid connected inverters for residential rooftop installations.

Three-phase string inverter SAJ 10kW R5-10K-T2 double MPPT DC switch

The R5 series is SAJ's family of grid connected inverters for residential rooftop installations. Lightweight and compact, R5 is easy to install. It supports 15A current to match the main PV panels on the market. With a fanless design, R5 runs in a low noise level to provide a better user experience.
R5 series supports 24-hour load monitoring solution for intelligent energy management.

Features

Lightning protection, high-precision leakage monitoring;
Remote maintenance and configuration;
APP connection, all real-time data;
Low standby power, high efficiency, high output;
Silent, negligible acoustic impact;
Smart, active and immediate response to network requests.

For more details, download the following documents:

Datasheet: [Download]

Technical features

DC Input
Model	R5-10K-T2
Max. PV Array Power @STC	15000Wp
Max. DC Voltage	1100V
MPPT Voltage Range	160~950V
Rated DC Voltage	600V
Start Voltage	180V
Min. Input Voltage	150V
Max. Input Current	15A
Max. DC Short Circuit Current	18A
No. of MPPT	2
No. of Strings per MPPT	1/1
AC Output [On-grid]
Rated AC Power	10000W
Max. Apparent Power	11000VA
Rated AC Output Current	14.5A
Max. AC Output Current	16.7A
Nominal AC Voltage/ Range	220/380, 230/400, 240/415, 180-280/312-485V
Nominai AC Grid Frequency/ Range	50,60 I 45-55,55-65 Hz
[THDi]	<2%
Efficiency
Max. Efficiency	98.6%
Euro Efficiency	98.3%
Max. Battery Charging Efficiency	>99.5%
Protection
Internal Over-voltage Protection	Integrated
DC lnsulation Resistance Detection	Integrated
Grid Monitoring	Integrated
AC Short Circuit Current Protection	Integrated
Interface
DC Connection	MC4
AC Connection	Plug-in Connector
Display	LED+(Bluetooth/Wi-Fi+APP)
Communication	Wi-Fi/GPRS/4G(Optional)
General Data
Operating Temperature Range	-40°C to +60°C
Cooling Method	Natural convection
Noise [dBA]	<25
Ambient Humidity	0%~100% non-condensing
Ingress Protection	IP 65
*Dimensions [HWD]*	429 x 418 x 177mm
Weight	19kg
Certifications	IIEC62109-1/2, IEC61000-6-1/2/3/4, EN50438, C10/C11, IEC62116, IEC61727, RD1699, UNE 206006, UNE 206007, CEI 0-21, CEI 0-16, NBR 16149, NBR 16150, G98, G99
