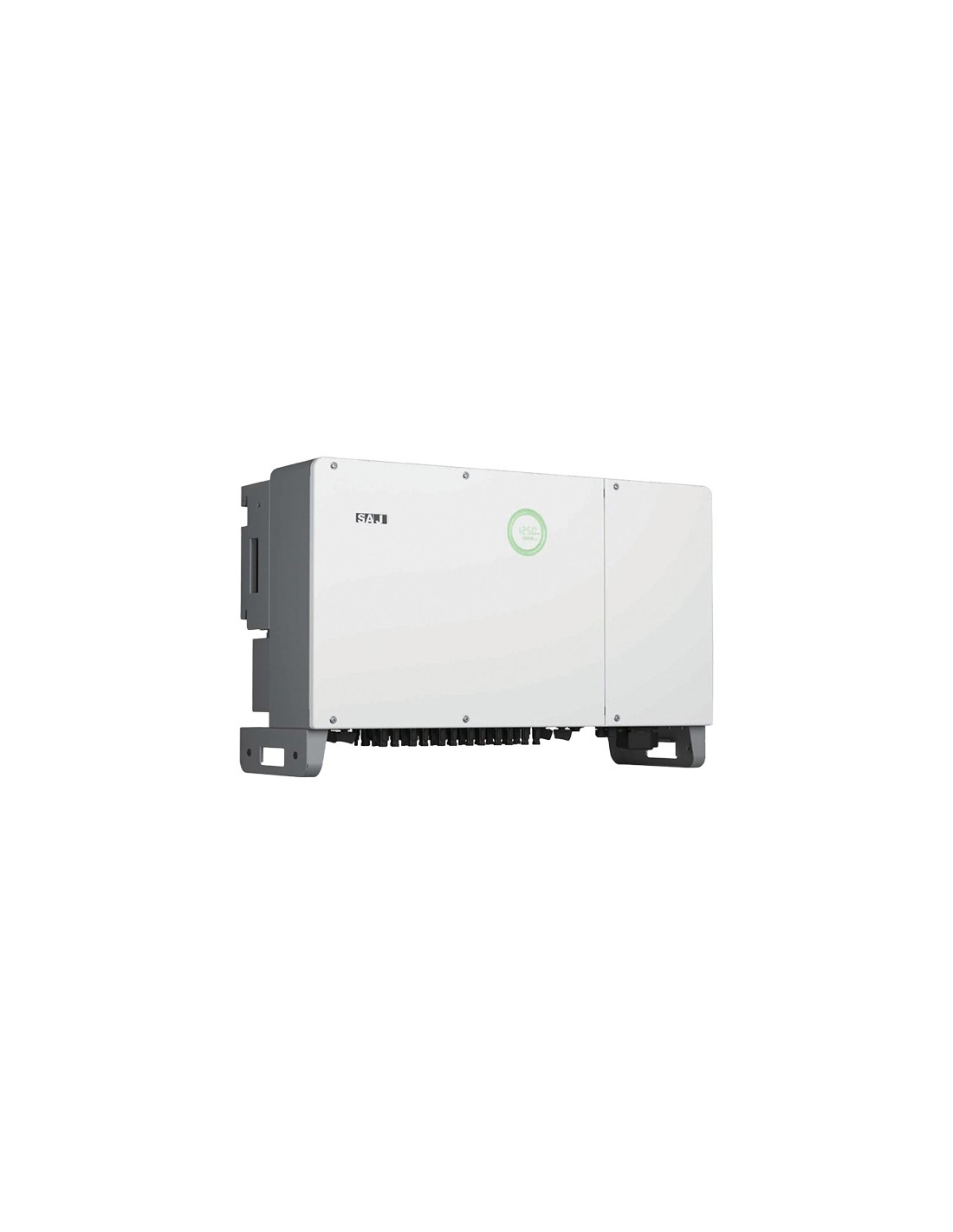

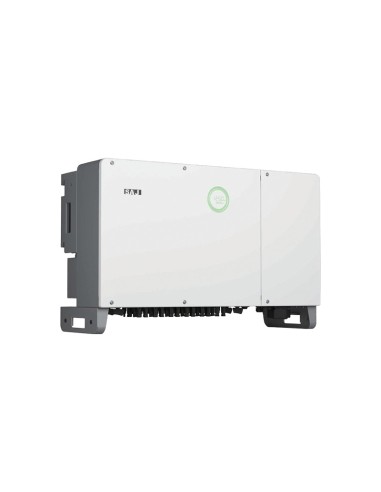

Three Phase String Inverter SAJ 100kW C6-100K-T9 - 9 MPPT Photovoltaic

Three Phase String Inverter SAJ 100kW C6-100K-T9 - 9 MPPT Photovoltaic

Name: Three Phase String Inverter SAJ 100kW C6-100K-T9 - 9 MPPT Photovoltaic
Brand: Saj
SKU: C6-100K-T9
Price: 4304.3 EUR
Availability: InStock

Reference C6-100K-T9

€4,304.30

VAT included 10 %

€3,913.00 Vat excl.

C6 series is SAJ's grid-connected inverter family.

Three Phase String Inverter SAJ 100kW C6-100K-T9 - 9 MPPT

C6 series supports 24-hour load monitoring solution for smart energy management.
Its features make it safe and reliable and easy and smart to use.

Features

Type II surge protection, both DC and AC side SAFE AND RELIABLE;
AFCI (Arc Interruption Circuit Breaker) protection;
IP66 protection grades and C5 anti-corrosion class;
Intelligent cooling fan (IP68);
24/7 load monitoring;
Easy upgrade;
String current up to 15A;
Maximum efficiency 98.8%;
9 MPPT

For more details, download the following documents:

Datasheet: [Download]

Technical features

DC Input
Model	C6-100K-T9
Max.PV Array Power [KWp]@STC	150kWp
Maximum Voltage	1100V
MPPT Voltage Range	180~1000V
Nominal Input Voltage	600V
Start-up Voltage	200V
Minimum Input Voltage	180V
Maximum Input Current [A]	9*30
Maximum Short-Circuit Current [A]	9*45
Number of MPPTs	9
Number of Strings per MPPT	2
AC Output (Grid)
Nominal AC Output Power	100kW
Max.Apparent Power	110kVA
Rated Output Current [A]@230Vac	144.3A
Maximum Output Current	158.8A
Rated AC Voltage/Range [V]	3+N+PE,230/400
Rated Output Frequency/Range [Hz]	50,60/45～55,55～65
Total Harmonic Distortion (THDi)	<3%
Efficiency
Maximum Efficiency	98.80%
Euro Efficiency	98.50%
Protections
Internal Overvoltage Protection	Integrated
DC Insulation Resistance Detection	Integrated
Grid Monitoring	Integrated
AC Short Circuit Protection	Integrated
Interface
DC Connections	MC4
AC Connections	OT/DT Terminal(Max.240mm²)
Display	LED+APP
Communication Mode	Wi-Fi/Ethernet/4G/PLC(Optional)
General Data
Operating Temperature Range	-40℃ to +60℃ (45℃ to 60℃ with derating)
Cooling	Intelligent Fan cooling
Noise [dBA]	<60
Ambient Humidity	0-100% non-condensing
Ingress Protection	IP66
*Dimensions [HWD]*	6601045361 mm
Weight	93kg
Certifications	EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, AS 4777.2, NBR 16149, NBR 16150 VDE-AR-N 4105, VDE 0126-1-1
