Single-phase string inverter SAJ 1kW R5-1K-S1 MPPT DC switch photovoltaic

Single-phase string inverter SAJ 1kW R5-1K-S1 MPPT DC switch photovoltaic

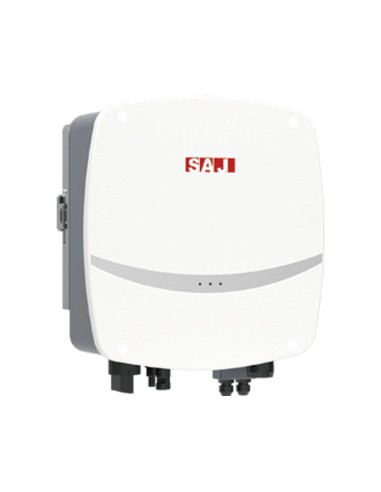

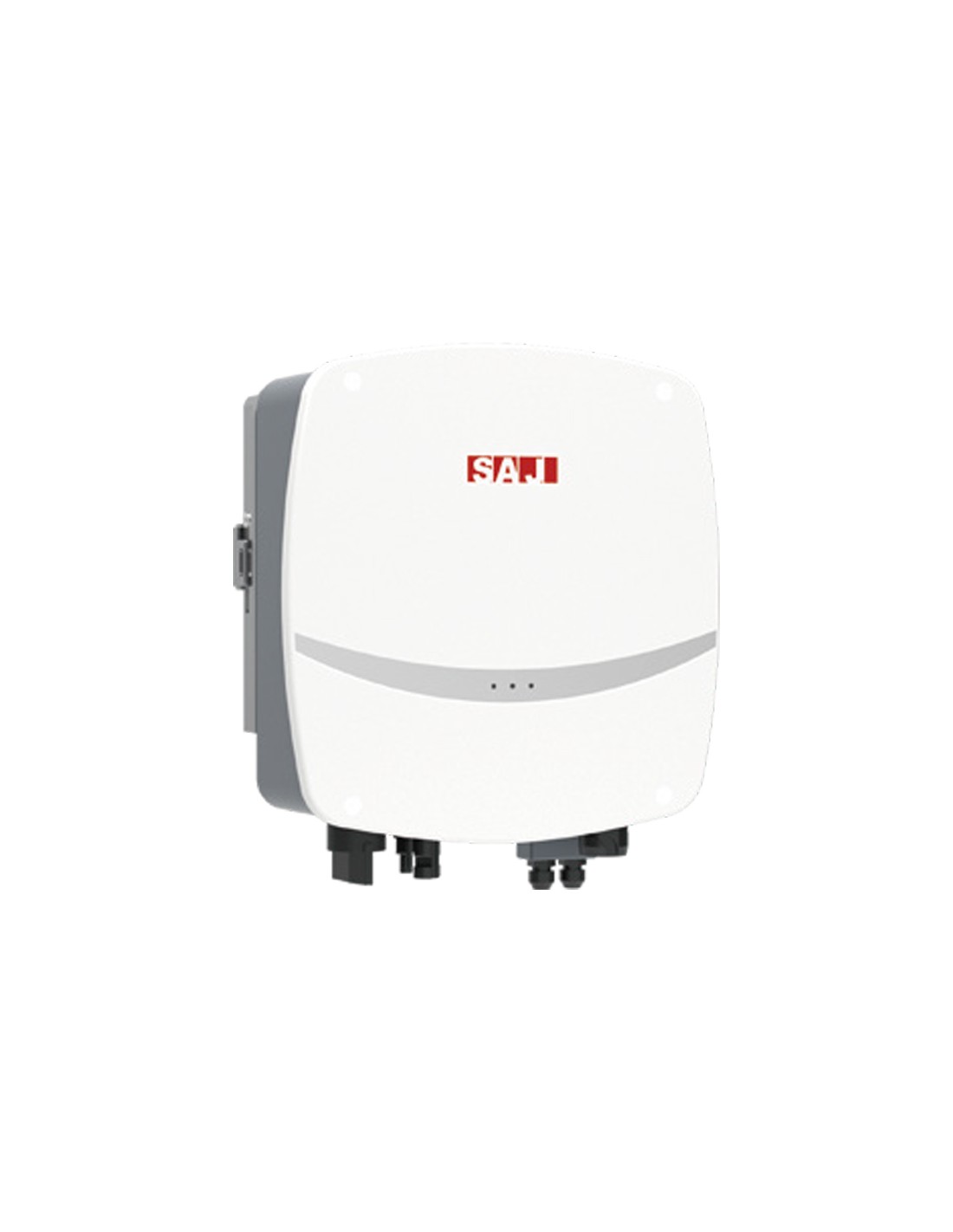

Name: Single-phase string inverter SAJ 1kW R5-1K-S1 MPPT DC switch photovoltaic
Brand: Saj
SKU: R5-1K-S1-15
Price: 346.5 EUR
Availability: InStock

Reference R5-1K-S1-15

€346.50

VAT included 10 %

€315.00 Vat excl.

The R5 series is SAJ's family of grid connected inverters for residential rooftop installations.

Single-phase string inverter SAJ 1kW R5-1K-S1 MPPT DC switch

The R5 series is SAJ's family of grid connected inverters for residential rooftop installations. Lightweight and compact, R5 is easy to install. It supports 15A current to match the main PV panels on the market. With a fanless design, R5 runs in a low noise level to provide a better user experience.
R5 series supports 24-hour load monitoring solution for intelligent energy management.

Features

Compact and lightweight;
Data available in real time via APP;
Maintenance that can be performed remotely;
Silent, negligible acoustic impact;
External communication module with display;
Very high reliability, design with redundancy.

For more details, download the following documents:

Datasheet: [Download]

Technical features

DC Input
Model	R5-1K-S1-15
Max. PV Array Power @STC	1500Wp
Max. DC Voltage	450V
MPPT Voltage Range	40~425V
Rated DC Voltage	360V
Start Voltage	40V
Min. Input Voltage	40V
Max. Input Current	15A
Max. DC Short Circuit Current	18A
No. of MPPT	1
No. of Strings per MPPT	1
AC Output [On-grid]
Rated AC Power	1000W
Max. Apparent Power	1100VA
Rated AC Output Current	4.4A
Max. AC Output Current	5.0A
Nominal AC Voltage/ Range	220,230,240/180-280V
Nominai AC Grid Frequency/ Range	50,60 I 45-55,55-65 Hz
[THDi]	<2%
Efficiency
Max. Efficiency	97.3%
Euro Efficiency	96.7%
Max. Battery Charging Efficiency	>99.9%
Protection
Internal Over-voltage Protection	Integrated
DC lnsulation Resistance Detection	Integrated
Grid Monitoring	Integrated
AC Short Circuit Current Protection	Integrated
Interface
DC Connection	MC4
AC Connection	Plug-in Connector
Display	LED+(Bluetooth/Wi-Fi+APP)
Communication	Wi-Fi/GPRS/4G(Optional)
General Data
Operating Temperature Range	-40°C to +60°C
Cooling Method	Natural convection
Noise [dBA]	<25
Ambient Humidity	0%~100% non-condensing
Ingress Protection	IP 65
*Dimensions [HWD]*	302 x 289 x 142mm
Weight	7.2kg
Applicable Standard	EN 62109-1/2, EN 61000-6-1/2/3/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI O-021, AS 4777.2, NBR 16149, NBR 16150 VDE-AR-N 4105, VDE 0126-1-1
