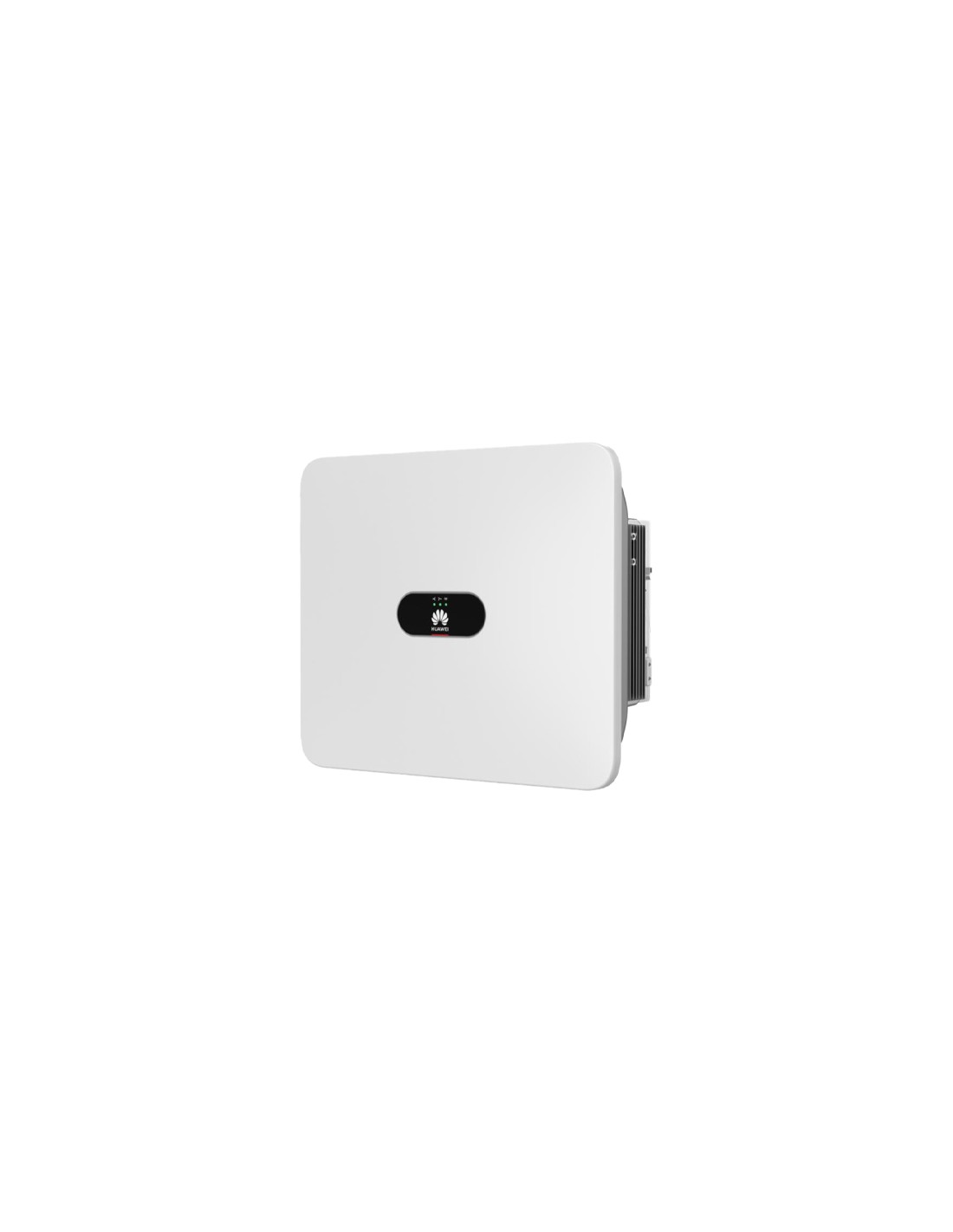

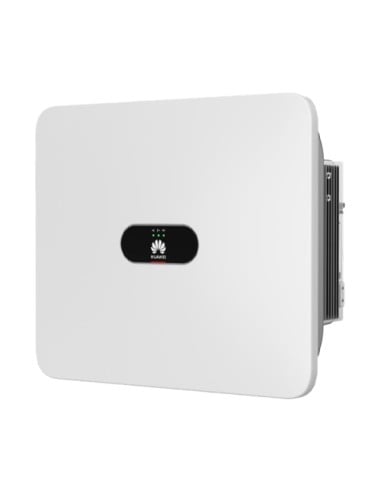

Three-phase string inverter 20kW Huawei SUN2000-20KTL-M5 solar photovoltaic
SUN2000-20KTL-M5
Last items in stock
€1,354.30
VAT included
10 %
€1,231.18 Vat excl.
- Active Safety: AI Powered Arcing Protection;
- Higher Yields: up to 30% More Energy with Optimizer;
- Flexible Communication: WLAN, Fast Ethernet, 4G Communication Supported.
Three-phase string inverter 20kW Huawei SUN2000-20KTL-M5 solar photovoltaic
Features
- Active Safety: AI Powered Arcing Protection;
- Higher Yields: up to 30% More Energy with Optimizer;
- Flexible Communication: WLAN, Fast Ethernet, 4G Communication Supported.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| Input | |
| Recommended max. PV power | 30,000 Wp |
| Max. input voltage | 1,100 V |
| Max. input current per MPPT | 30 A (two string) / 20 A (single string) |
| Max. short-circuit current | 40 A |
| Start-up voltage | 200 V |
| MPPT Operating voltage range | 200 V ~ 1000 V |
| Rated input voltage | 600 V |
| Max. number of inputs | 4 |
| Number of MPP trackers | 2 |
| Output | |
| Rated output power | 20,000 W |
| Max. apparent power | 22,000 VA |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415Vac, 3W + N + PE |
| Rated AC grid frequency | 50 Hz / 60 Hz |
| Max. output current | 33.6A/380Vac 31.9A/400Vac 30.8A/415Vac |
| Adjustable power factor | 0.8 capac ... 0.8 indut |
| Features & Protection | |
| Overvoltage Category | PV Ⅱ/AC Ⅲ |
| Input-side disconnection device | Yes |
| Anti-islanding protection | Yes |
| AC over-current protection | Yes |
| DC reverse-polarity protection | Yes |
| String fault detection | Yes |
| DC surge protection | TYPE II |
| AC surge protection | CLASS II |
| Standard compliance | |
| Safety | EN/IEC 62109-1, EN/IEC 62109-2 |
| Grid connection standards | G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC61727, IEC62116 |
| Optimizer compatibility | |
| DC MBUS compatible optimizer | SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, MERC-1300W-P, MERC-1100W-P |
| General data | |
| Display | LED Indicators; Integrated WLAN + FusionSolar App |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional) |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) |
| Cooling | Raffreddamento ad aria intelligente |
| Degree of protection | IP 66 |
| Dimensions (W x H x D) (incl. mounting plate) | 546 x 460 x 228mm (21.5 x 18.1 x 9.0 inch) |
| Weight (with mounting plate) | 21kg (46.4 lb) |
- Product Code
- SUN2000-20KTL-M5
- MPPT number
- 2
- Typology
- Three-phase
- Inverter power
- 20kW
