Inverter/chargers MultiPlus-II 3000VA 24V 2400W Victron 24/3000/70-32

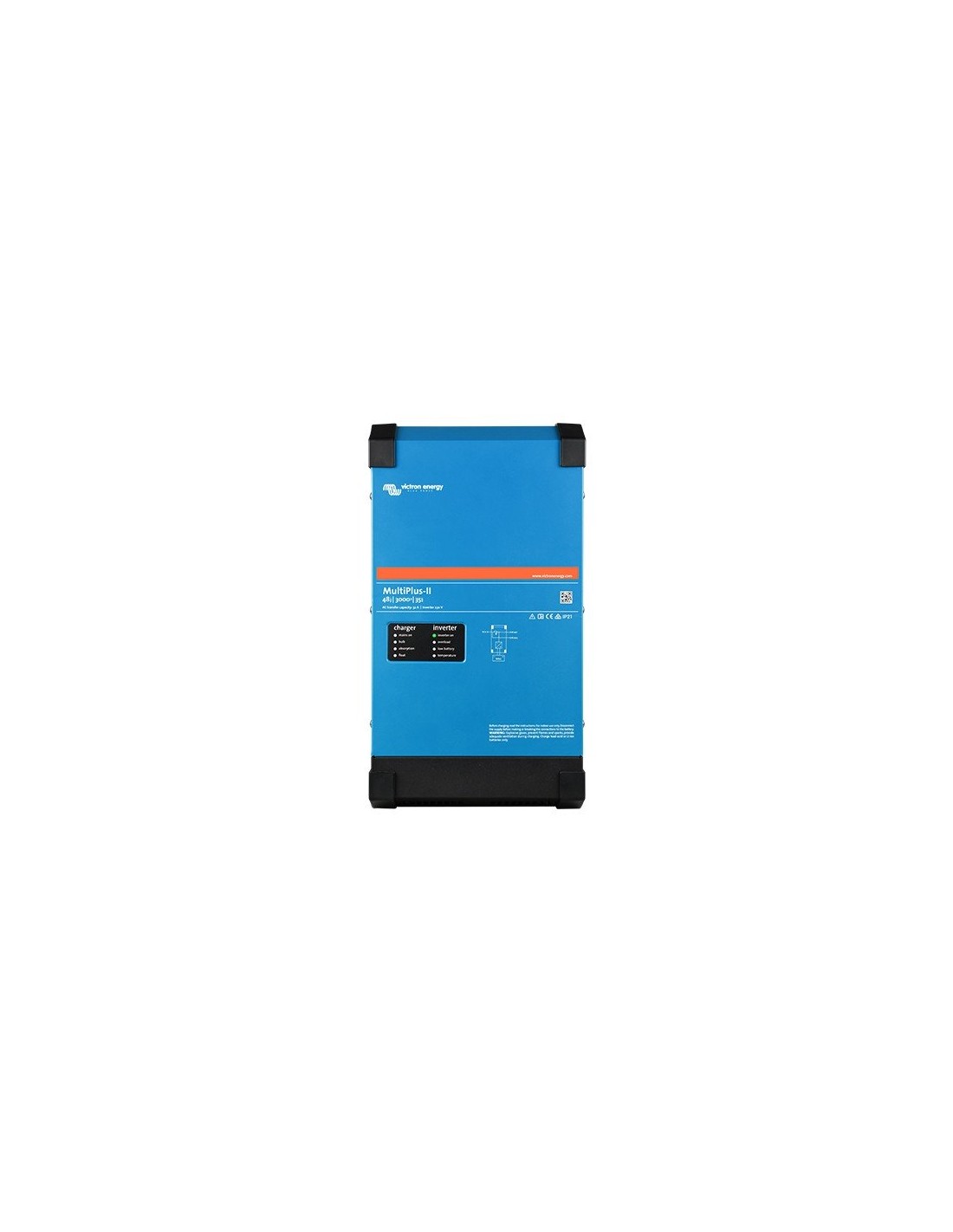

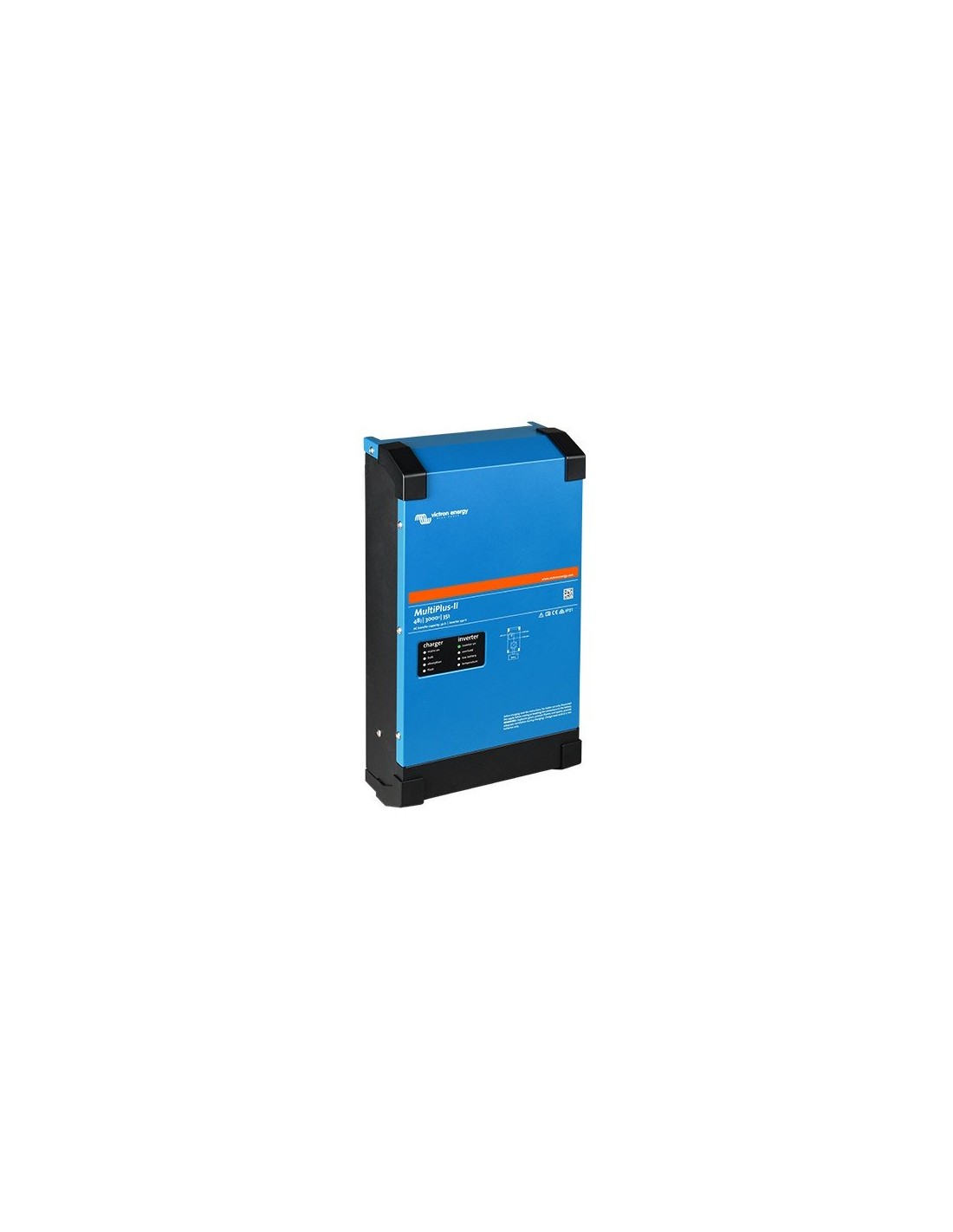

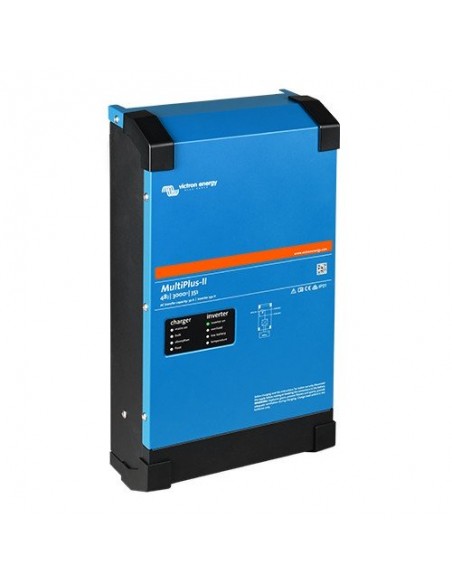

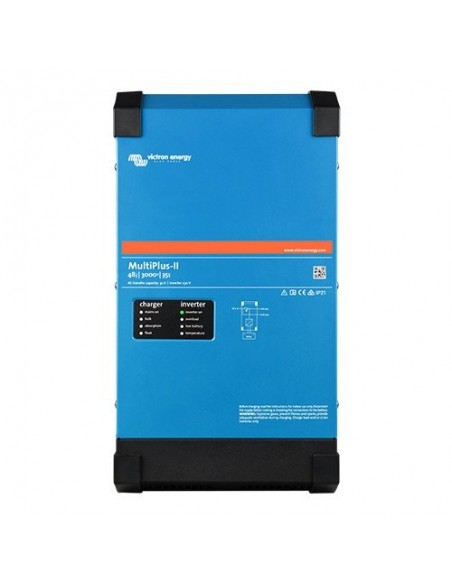

Name: Inverter/chargers MultiPlus-II 3000VA 24V 2400W Victron 24/3000/70-32
Brand: Victron Energy
SKU: PMP242305010
Price: 1054.1 EUR
Availability: InStock

Reference PMP242305010

€1,054.10

VAT included 10 %

€958.27 Vat excl.

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding.

Inverter/charger 3000VA 24V 2400W Victron Energy

MultiPlus II 24/3000/70-32

A MultiPlus, plus ESS (Energy Storage System) functionality
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 32A. It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerControl and PowerAssist - Boosting the capacity of grid or generator power
A maximum generator or grid current can be set. The Multi will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur.

The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

For examples and more detailed information see the ESS Design & installation manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads.

This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems.

There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...

Display to Control and Monitoring Color Control GX Victron Energy (not included, but is purchasable separately)

The Color Control GX (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

N.B.: the product is not included in the kit, but it can be purchased separately.

VE.Bus MK3-USB connection interface Victron Energy Inverter (not included, but is purchasable separately)

MK3-USB interface allows configuration of all devices Victron VE.Bus through the use of a computer..

Use the MK3-USB to connect the following products to a computer for configuration:

Multi; MultiGrid; MultiPlus; Quattro; ECOmulti; EasySolar; EasyPlus

N.B.: the product is not included in the kit, but it can be purchased separately.

Downloads

	Datasheet EN [link]

	Multilanguage User Manual [link]

Customer service

	0039 (0)882 22 82 47

	[email protected]

Product Code: PMP242305010

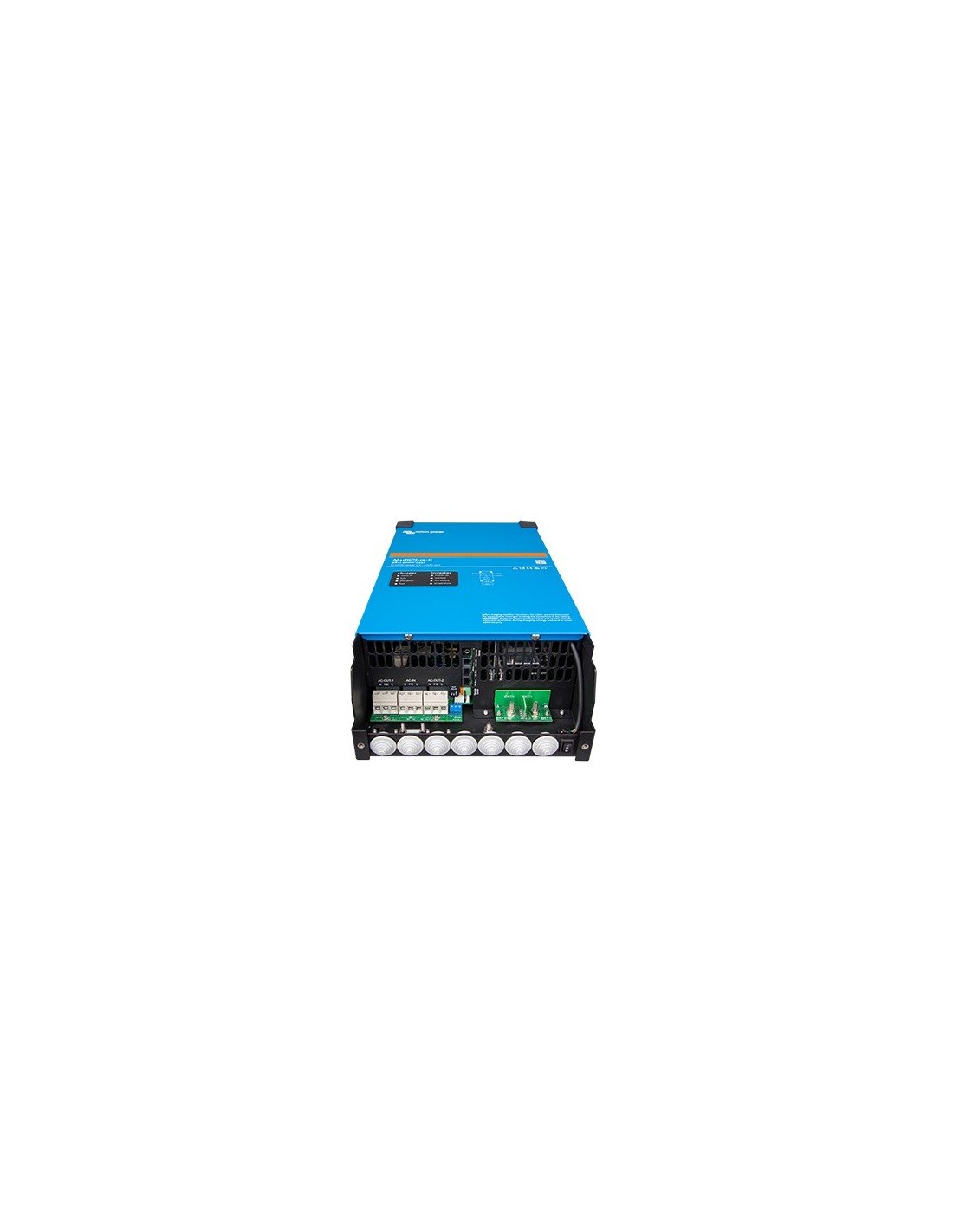

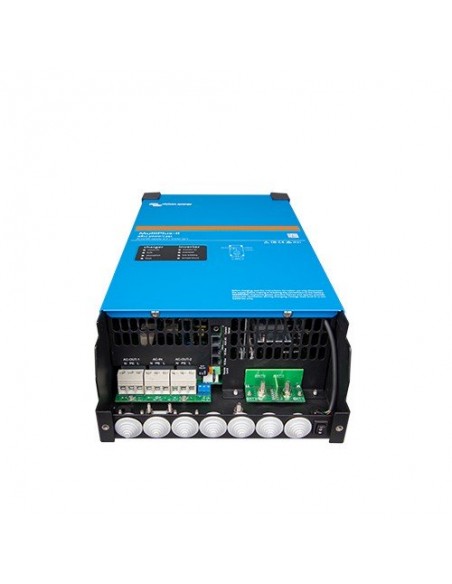

230 V AC-connection: Screw terminals 13 mm2 (6 AWG)
Model: Multiplus
PowerControl: Yes
PowerAssist: Yes
Transfer switch (A): 32A
Output: Output voltage: 230 VAC ± 2% - Frequency: 50 Hz ± 0,1%
AC Input: Input voltage range: 187-265 VAC - Input frequency: 45 – 65 Hz
Battery temperature sensor: VE.Bus Smart Dongle (optional)
Auxiliary output (5): Yes (32 A) Directly connected to the AC input
Programmable relay: Yes
Protection: Output short circuit - overload - battery voltage too high - battery voltage too low - temperature too high - 230 VAC on inverter output - input voltage ripple too high
VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration
General purpose com. port: Yes, 2x
Remote on-off: Yes
Battery-connection: Two M6 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive Directive: IEC 62040-1, AS 620401.1
Anti-islanding: VDE-AR-N 4105, TOR-D4, AS/NZS 4777.2, NRS 097-2-1, UTE C15-712-1, C10/11, RD 1699-RD 413, G59/3-2, G83/2
Dimensions (D x W x H): (H x W x D) : 499 x 268 x 141 mm
Net Weight: 18Kg
Rated Power VA: 3000VA
Rated Power W: 2400
Battery Voltage V: 24 V
