INVERTER/CARICABATTERIE VICTRON ENERGY SERIE EASYSOLAR MODELLO 24/1600/40 24V 1200W

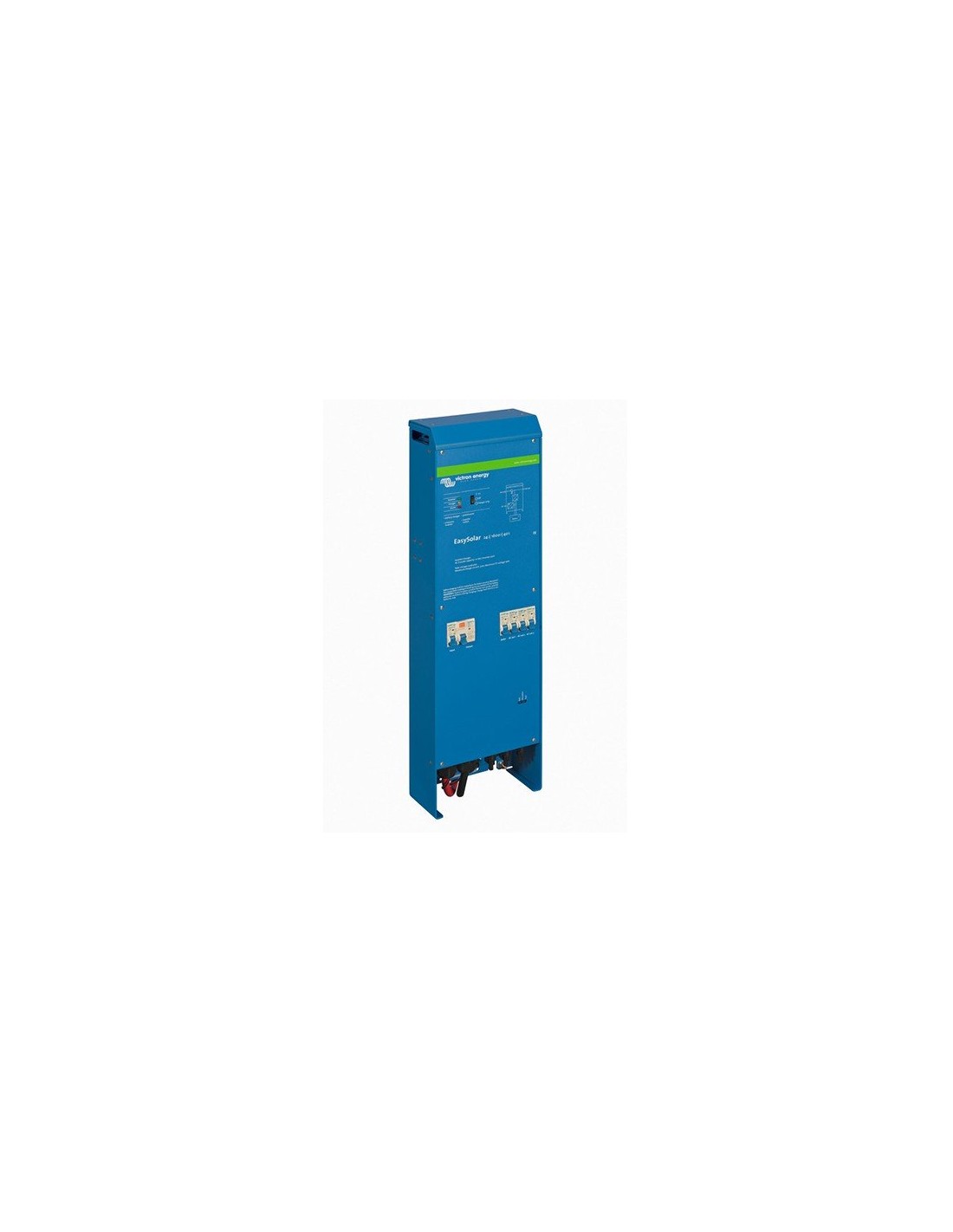

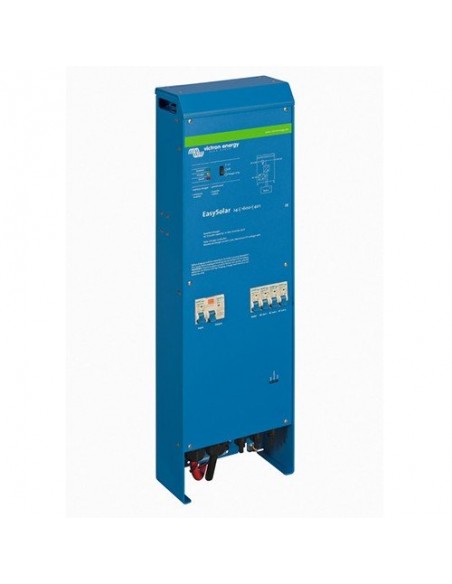

Inverter/charger 1300W 24V 1600VA Victron Energy EasySolar 1xMPPT 100/50

Name: Inverter/charger 1300W 24V 1600VA Victron Energy EasySolar 1xMPPT 100/50
Brand: Victron Energy
SKU: CEP241621010
Price: 1250.87 EUR
Availability: InStock

Reference CEP241621010

€1,250.87

VAT included 10 %

€1,137.15 Vat excl.

All-in-one solar power solution
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

Inverter Easy Solar 1300W 24V 1600VA

24/1600/40-16 MPPT100/50

The Solar Charge Controller: BlueSolar MPPT 100/50
Up to three strings of PV panels can be connected with three sets of (PV-ST01) PV connectors.

The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT Charge Controller and the MultiPlus Compact Inverter/Charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

Technical Features

Product Code: CEP241621010
		Download Product Datasheet

Warranty

2 Years Guaranteed

Example of Connection

Manual, Datasheet and Certifications

		Data Sheet EN [LINK]
For all other documents to download, please visit the web site: www.victronenergy.com

Assistance

		For service or plant configuration call 0882 22 82 47

		For technical assistance, write to [email protected]

Product Code: CEP241621010
230 V AC-connection: G-ST18i connector
Model: Easy Solar
Transfer switch (A): 16A
Output: 19 - 33 V
Output voltage: 230 VAC ± 2%Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (VA) (3): 1600VA
Cont. output power at 25°C (W): 1300W
Cont. output power at 40°C (W): 1200W
Peak power (W): 3000W
Maximum efficiency (%): 94%
Zero load power (W): 8W
AC Input: Input voltage range: 187-265 VACInput frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption' (V DC): 28,8V
Charge voltage 'float' (V DC): 27,6V
Storage mode (V DC): 26,4V
Charge current house battery (A) (4): 40A
Charge current starter battery (A): 4A
Battery temperature sensor: yes
Programmable relay: yes
Protection: Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; 230 VAC on inverter output; Input voltage ripple too high
Common Characteristics: Operating temp. range: -20 to +50°C (fan assisted cooling) - Humidity (non-condensing): max 95%
Common Characteristics ENCLOSURE: Material & Colour: aluminium (blue RAL 5012) - Protection category: IP 21
Battery-connection: Battery cables of 1.5 meter
Safety: EN 60335-1, EN 60335-2-29, EN 62109
Emission, Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
Automotive Directive: 2004/104/EC
Dimensions (D x W x H): 745 x 214 x 110 mm
Net Weight: 15Kg
Rated Power W: 1300W
Battery Voltage V: 24 V
