Inverter 300W 24V 375VA Victron Energy Phoenix VE.Direct Schuko 24/375

Inverter Phoenix 1000W 48V 1200VA Victron Energy VE.Direct IEC 48/1200

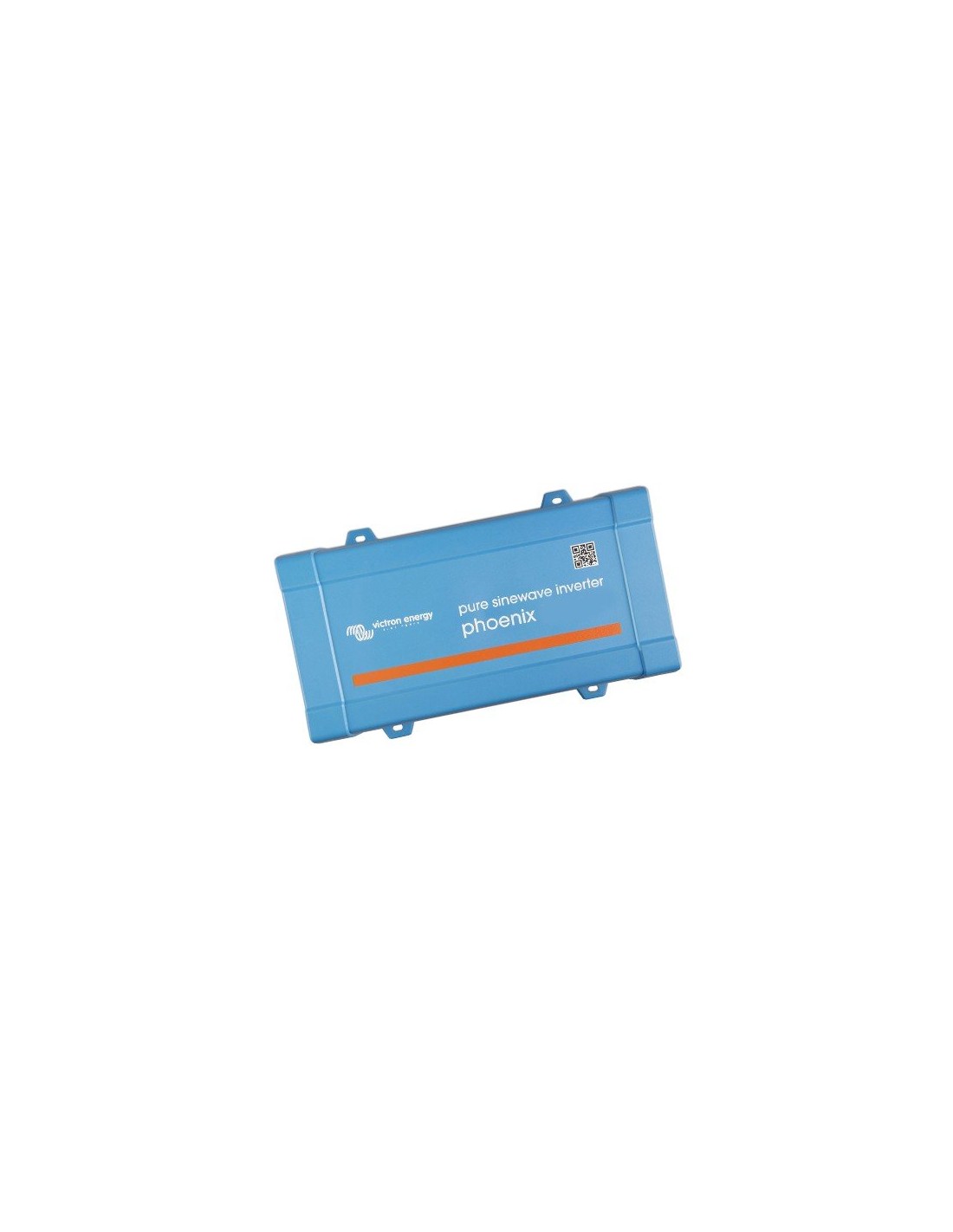

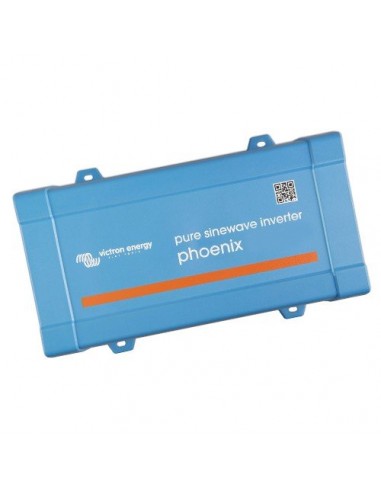

Name: Inverter Phoenix 1000W 48V 1200VA Victron Energy VE.Direct IEC 48/1200
Brand: Victron Energy
SKU: PIN482120100
Price: 479.04 EUR
Availability: InStock

Reference PIN482120100

€479.04

VAT included 10 %

€435.49 Vat excl.

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Inverter Phoenix VE.Direct IEC
1000W 48V 1200VA

Model: 48/1200

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Features

Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high
frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as computers and low power electric tools.

To transfer the load to another AC source: the automatic transfer switch
For our lower power models we recommend the use of our Filax Automatic Transfer Switch. The
Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

LED diagnosis
Please see manual for a description.

Remote on/off switch
Connector for remote on/off switch available on all models.

DIP switch for 50/60Hz selection (48/350 model only)

Technical Features

Product Code: PIN482120100
		Download Product Datasheet

Warranty

2 Years Guaranteed

Controller VE.Direct Bluetooth Smart Dongle (not included,but is purchasable separately)

VE.Direct using Bluetooth Dongle you can view the information of BMV or MPPT monitor on iOS and Android devices, using the VictronConnect application. You can look at the information wirelessly, as the state of the battery, the power of the solar panel, and many other useful data ...

N.B.: the product is not included in the kit, but it can be purchased separately.

Downloads

		Data Sheet EN [LINK]
		Multilingual Manual [LINK]
For all other documents to download, please visit the web site: [www.victronenergy.com]

Customer service

	0039 (0)882 22 82 47

	[email protected]

Product Code: PIN482120100
Model: Phoenix
Output: 230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Cont. output power at 25°C (VA) (3): 1200VA
Cont. output power at 25°C (W): 1000W
Cont. output power at 40°C (W): 850W
Peak power (W): 2200W
Maximum efficiency (%): 92%
Zero load power (W): 10W
AC Input: 36,8 - 62,0V
Protection: Output short circuit; overload; battery voltage too high; battery voltage too low; temperature too high; DC ripple too high
Remote on-off: Yes
Common Characteristics ENCLOSURE: Material & Colour: Steel chassis and plastic cover (blue Ral 5012) - Protection category IP 21
Battery-connection: Screw terminals - Maximum cable cross-section: 25 mm² / AWG4
Safety: EN/IEC 60335-1 / EN/IEC 62109-1
Emission, Immunity: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-3
Automotive Directive: 2004/104/EC EN 50498
Dimensions (D x W x H): 117 x 232 x 327 mm
Net Weight: 7.4 kg
Rated Power W: 1000W
Battery Voltage V: 48 V
