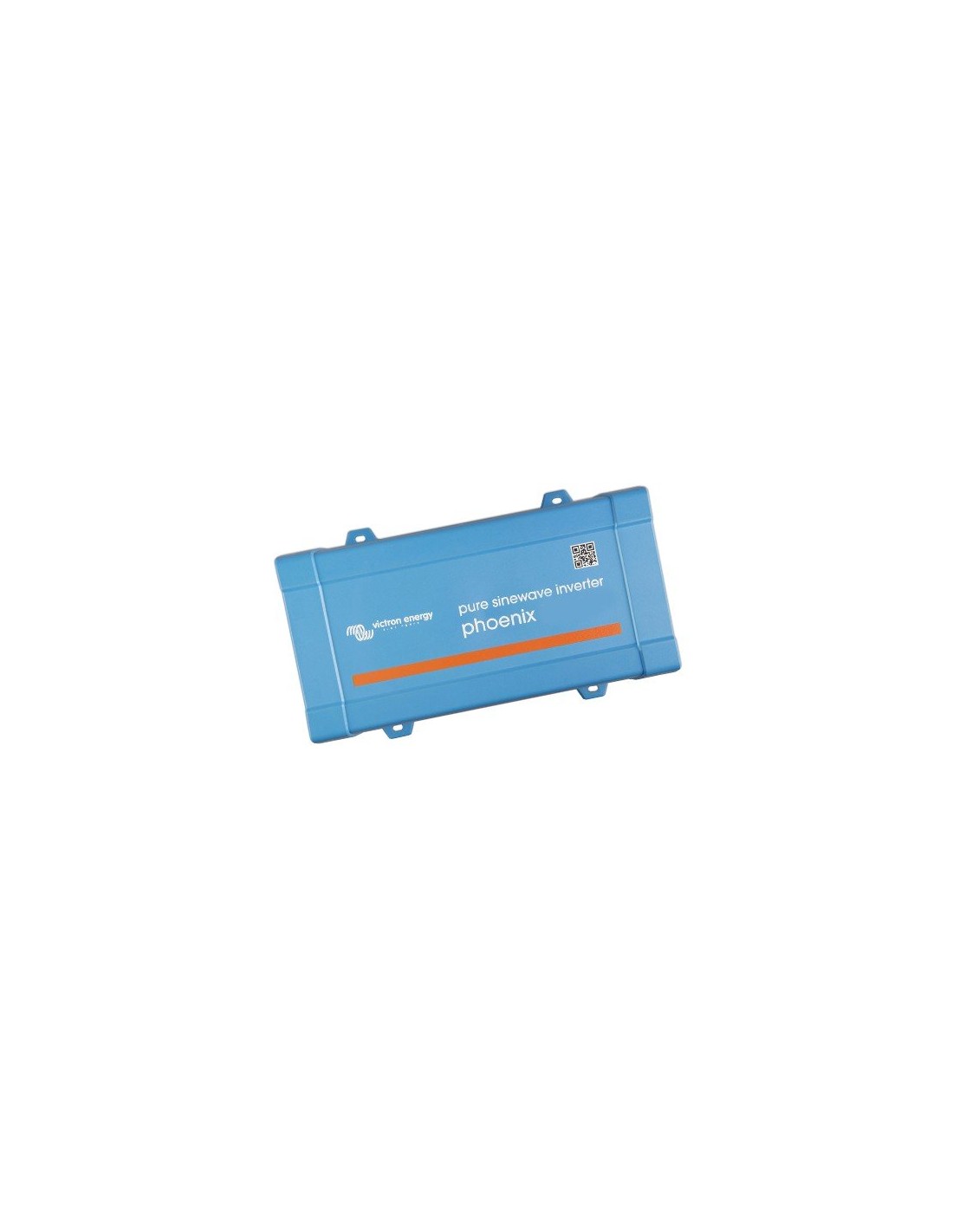

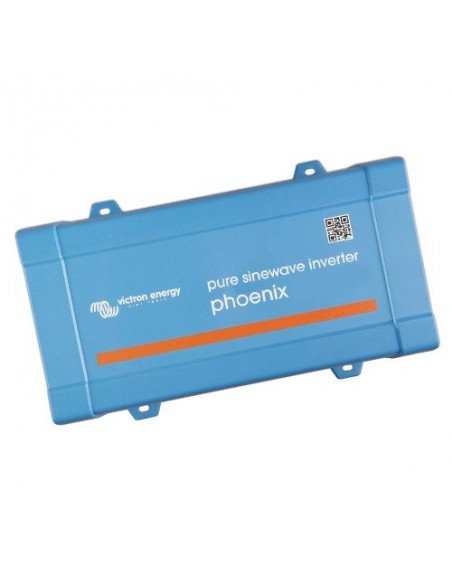

Inverter 300W 12V 375VA Victron Energy Phoenix VE.Direct Schuko 12/375
PIN121371200
Last items in stock
€134.42
VAT included
10 %
€122.20 Vat excl.
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
 |
Inverter Phoenix VE.Direct Schuko
|
|
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Features
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high
frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as computers and low power electric tools.
To transfer the load to another AC source: the automatic transfer switch
For our lower power models we recommend the use of our Filax Automatic Transfer Switch. The
Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
LED diagnosis
Please see manual for a description.
Remote on/off switch
Connector for remote on/off switch available on all models.
DIP switch for 50/60Hz selection (48/350 model only)
Technical Features
| Product Code: PIN121371200 | ||
 |
Download Product Datasheet | |
Warranty
 |
2 Years Guaranteed |
 |
Manual, Datasheet and Certifications |
|||||||
|
||||||||
 |
Assistance |
||||||||||
|
|||||||||||
- Product Code
- PIN121371200
- Model
- Phoenix
- Output
- 230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
- Cont. output power at 25°C (W)
- 375
- Cont. output power at 40°C (W)
- 300
- Maximum efficiency (%)
- 89
- Protection
- output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high
- Safety
- EN/IEC 60335-1 / EN/IEC 62109-1
- Dimensions (D x W x H)
- 86x165x260 mm
- Net Weight
- 2.4 Kg
- Rated Power W
- 300W
- Battery Voltage V
- 12 V
8719076045366
