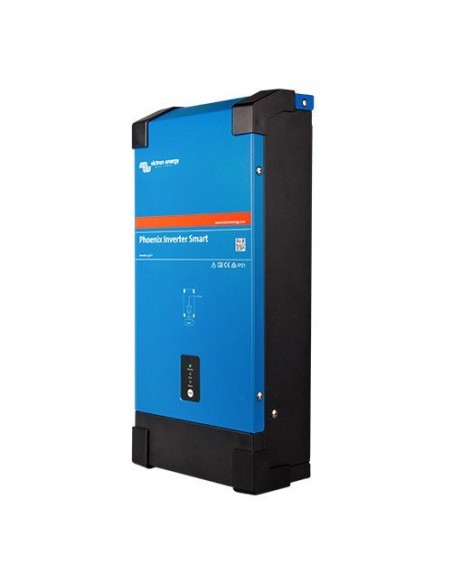

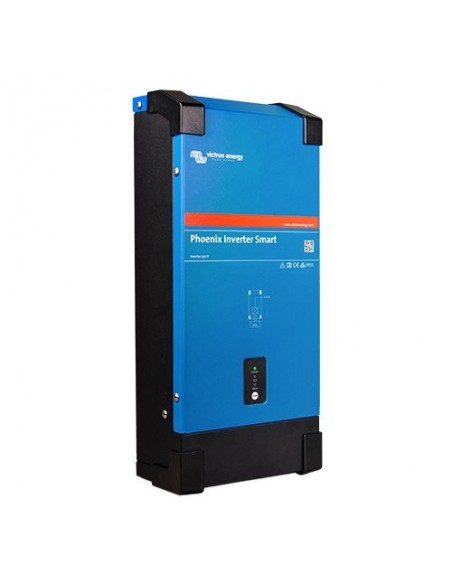

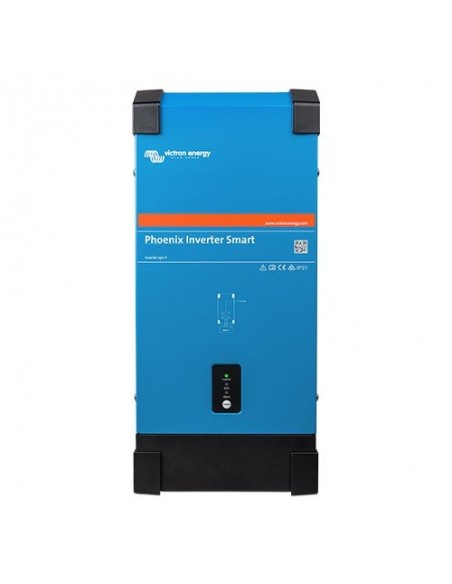

Inverter 1300W 48V 1600VA Victron Energy Phoenix Smart 48/1600 VE.Direct
PIN482160000
€822.81
VAT included
10 %
€748.01 Vat excl.
The Phoenix Inverter Smart is an efficient and reliable inverter. It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.
 |
Inverter Phoenix Smart 1300W 48V 1600VA |
The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing.
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

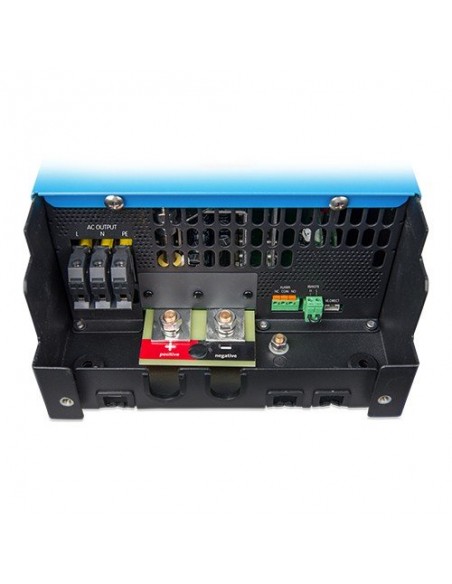

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Features
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 - 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds
(adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax
features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Technical Features
- Model: PIN482160000
- Nominal power: 1600VA 1300W 48V
INVERTER
- Input voltage range: 37,2 – 68V
- Cont. output power at 25ºC : 1600VA
- Cont. output power at 25ºC / 40°C / 60°C: 1300 / 1200W / 800W
- Peak power: 3000W
- Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off, see https://victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
- Max. efficiency: 94%
- Zero load power: 11W
- Zero load power in ECO mode: 2,1W
GENERAL, ENCLOSURE and STANDARDS
- Programmable relay: Yes
- Stop & start power ECO-mode: adjustable
- Protection: Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; 230 V AC on inverter output; Input voltage ripple too high
- Bluetooth wireless communication: For remote monitoring and system integration
- VE.Direct communication port: For remote monitoring and system integration
- Remote on-off: Yes
- Operating temperature range: da -40 a +60°C (fan assisted cooling)
- Humidity (non-condensing): max 95%
- Material & Colour: stainless steel (blue RAL 5012; and black RAL 9017)
- Protection category: IP 21
- Battery-connection: M8 Bolts
- 230 V AC-connection: Screw terminals
- Weight: 12 kg
- Dimensions (A x L x P mm): 485 x 219 x 125mm
- Safety: EN 60335-1
- Emission Immunity: EN 55014-1 / EN 55014-2/ IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
- Automotive Directive: ECE R10-5
Customer Service
 |
0039 (0)882 22 82 47 | |
 |
[email protected] | |
- Product Code
- PIN482160000
- 230 V AC-connection
- Screw terminals
- Model
- Phoenix
- Output
- 37,2 - 68V
- Cont. output power at 25°C (VA) (3)
- 1600VA
- Cont. output power at 25°C (W)
- 1300W
- Cont. output power at 40°C (W)
- 1200W
- Cont. output power at 65°C (W)
- 800W
- Peak power (W)
- 3000VA
- Maximum efficiency (%)
- 94%
- Zero load power (W)
- 11W
- Programmable relay
- YES
- Protection
- Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; 230 V AC on inverter output; Input voltage ripple too high
- Remote on-off
- YES
- Common Characteristics ENCLOSURE
- Material & Colour: stainless steel (blue RAL 5012; and black RAL 9017) Protection category: IP 21
- Battery-connection
- M8 bolts
- Safety
- EN 60335-1
- Emission, Immunity
- EN 55014-1 / EN 55014-2/ IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
- Automotive Directive
- ECE R10-5
- Dimensions (D x W x H)
- 485 x 219 x 125mm
- Net Weight
- 12kg
- Rated Power W
- 1300W
- Battery Voltage V
- 48 V
8719076042716
