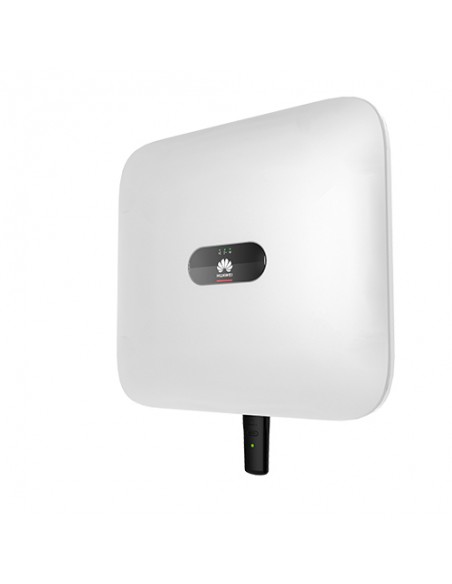

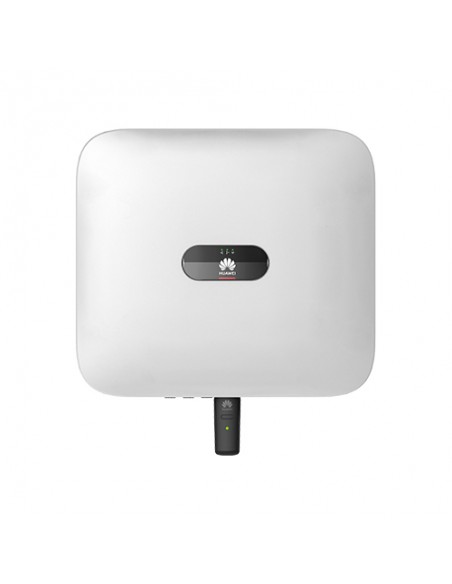

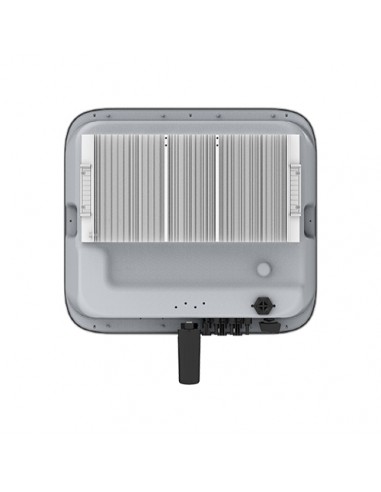

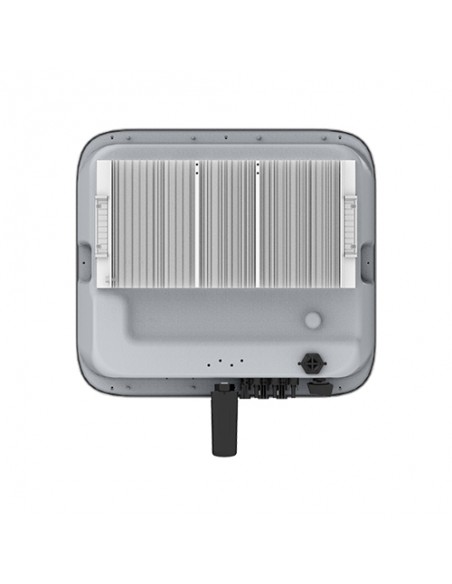

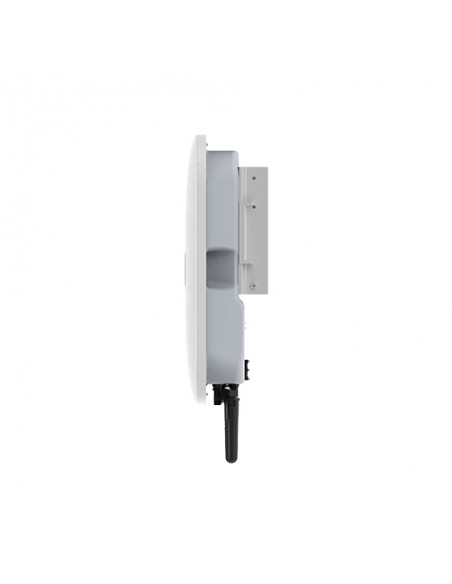

Huawei Hybrid Inverter 8kW Three-phase SUN2000-8KTL-M1 Solar Photovoltaic Accumulation Battery

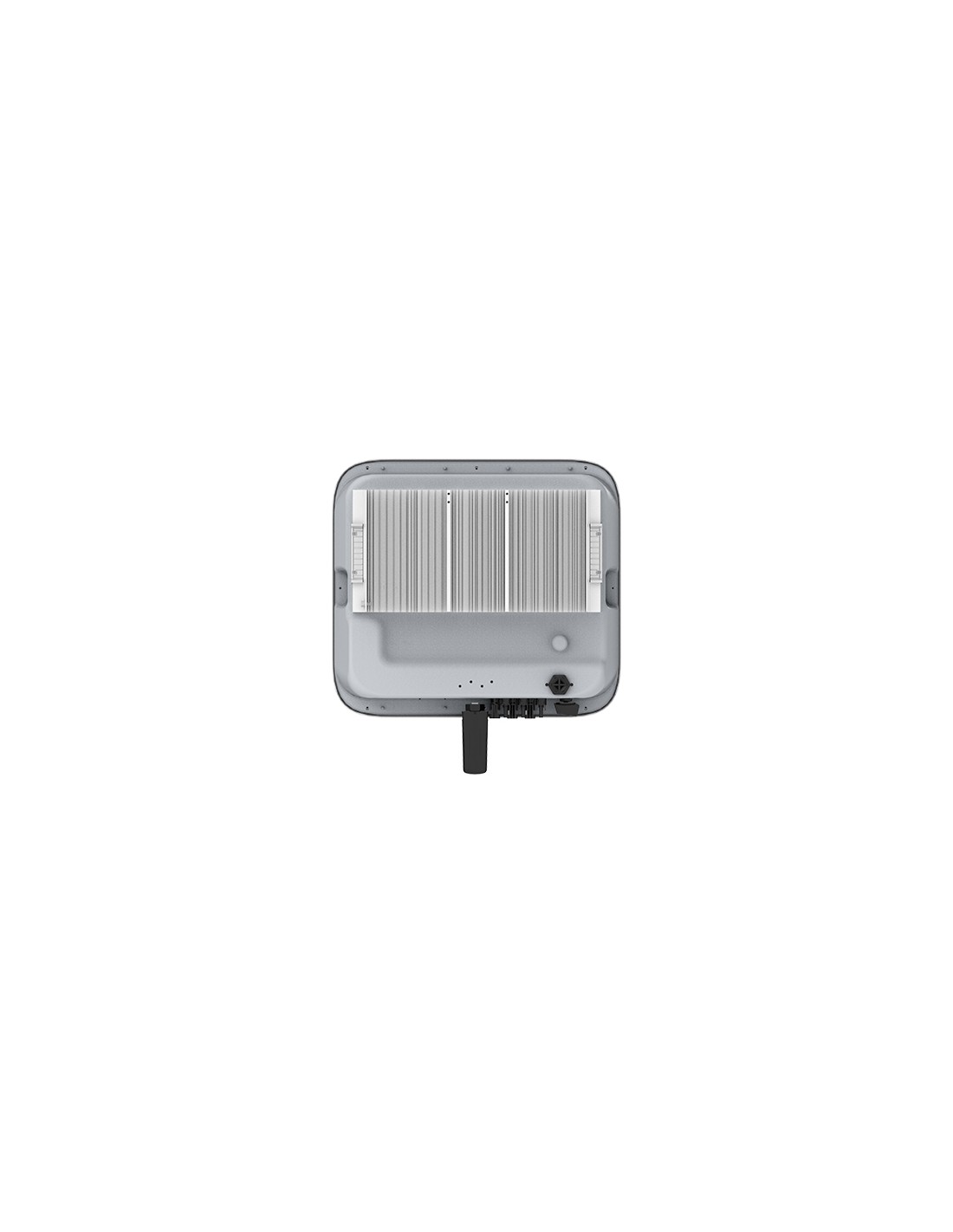

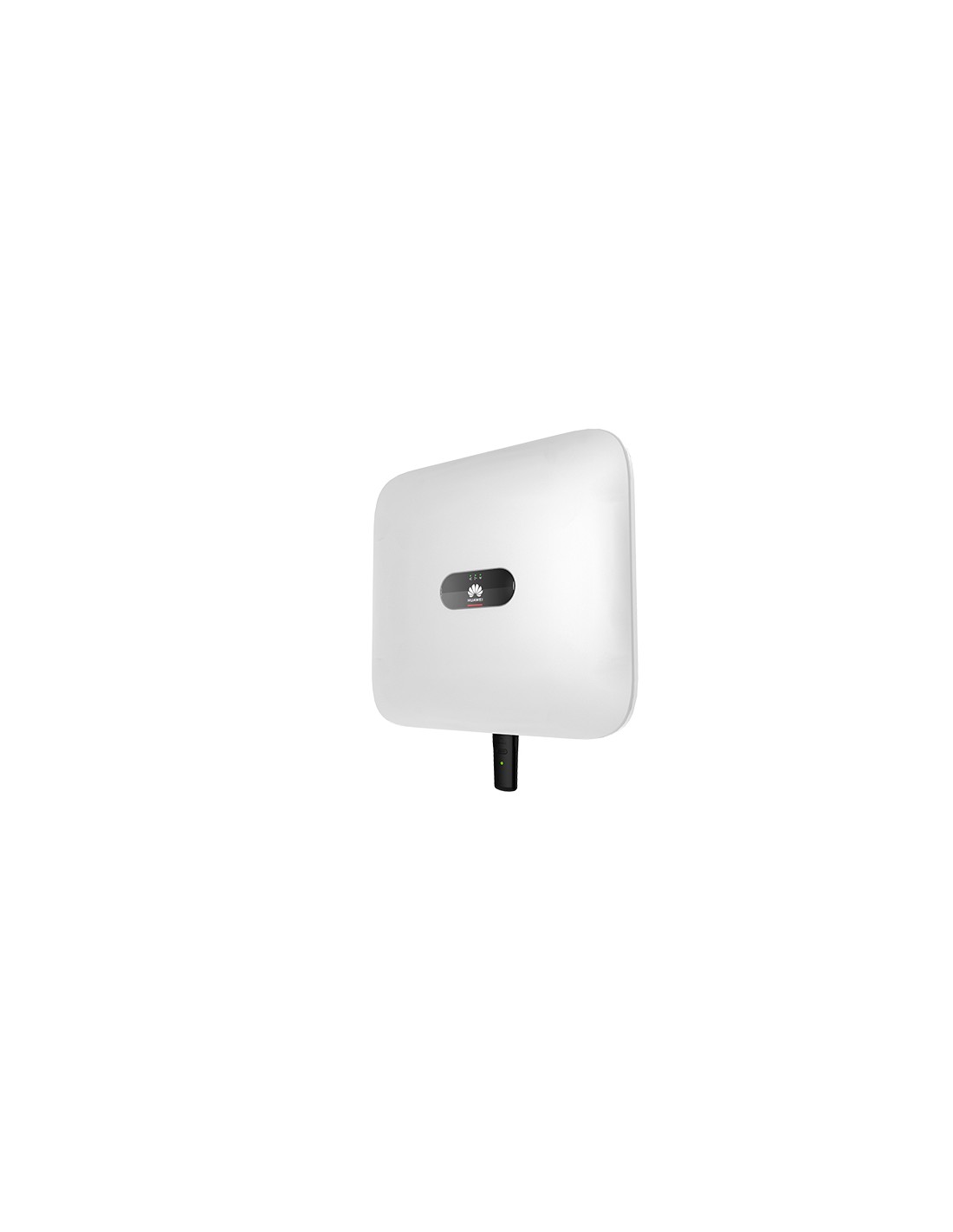

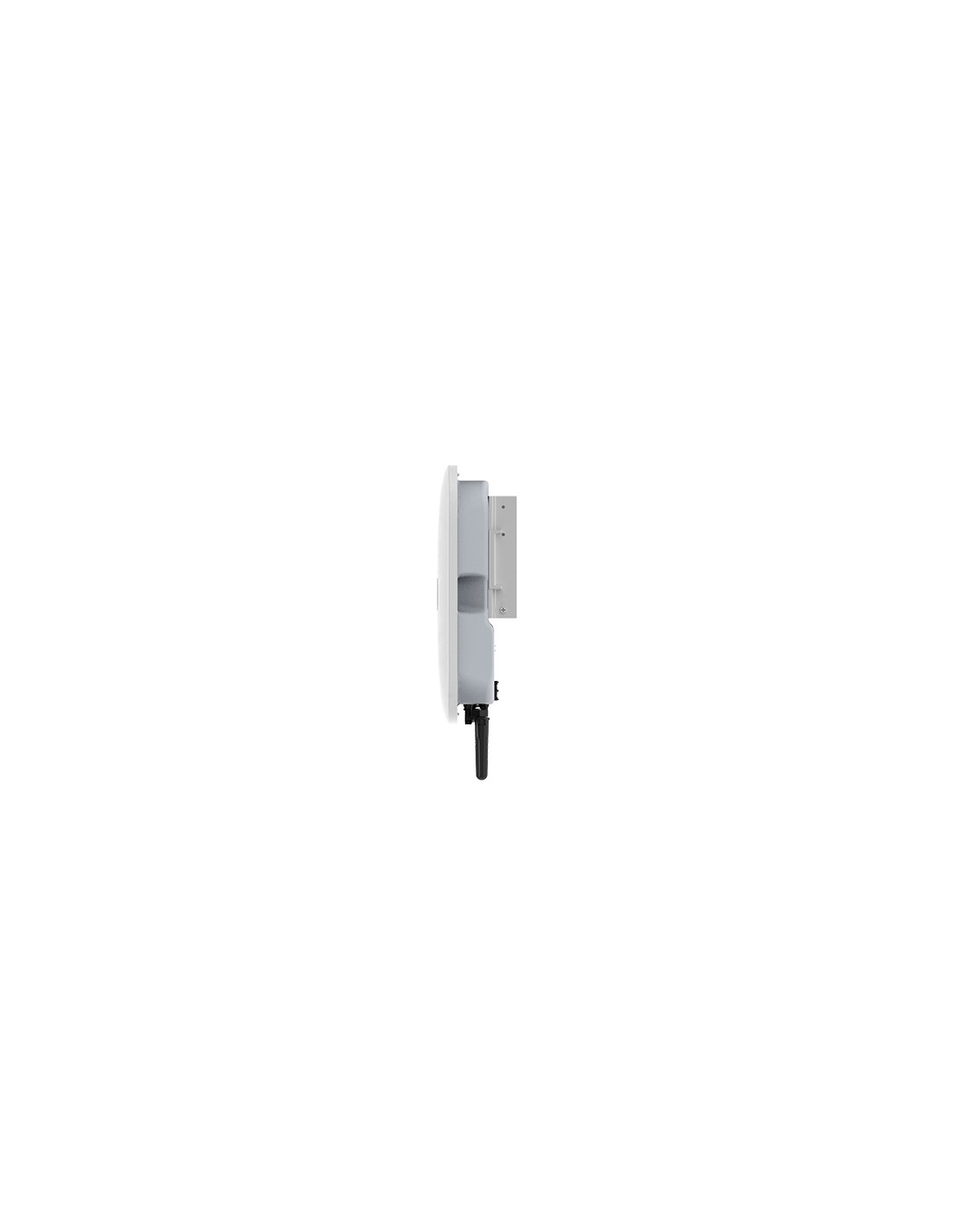

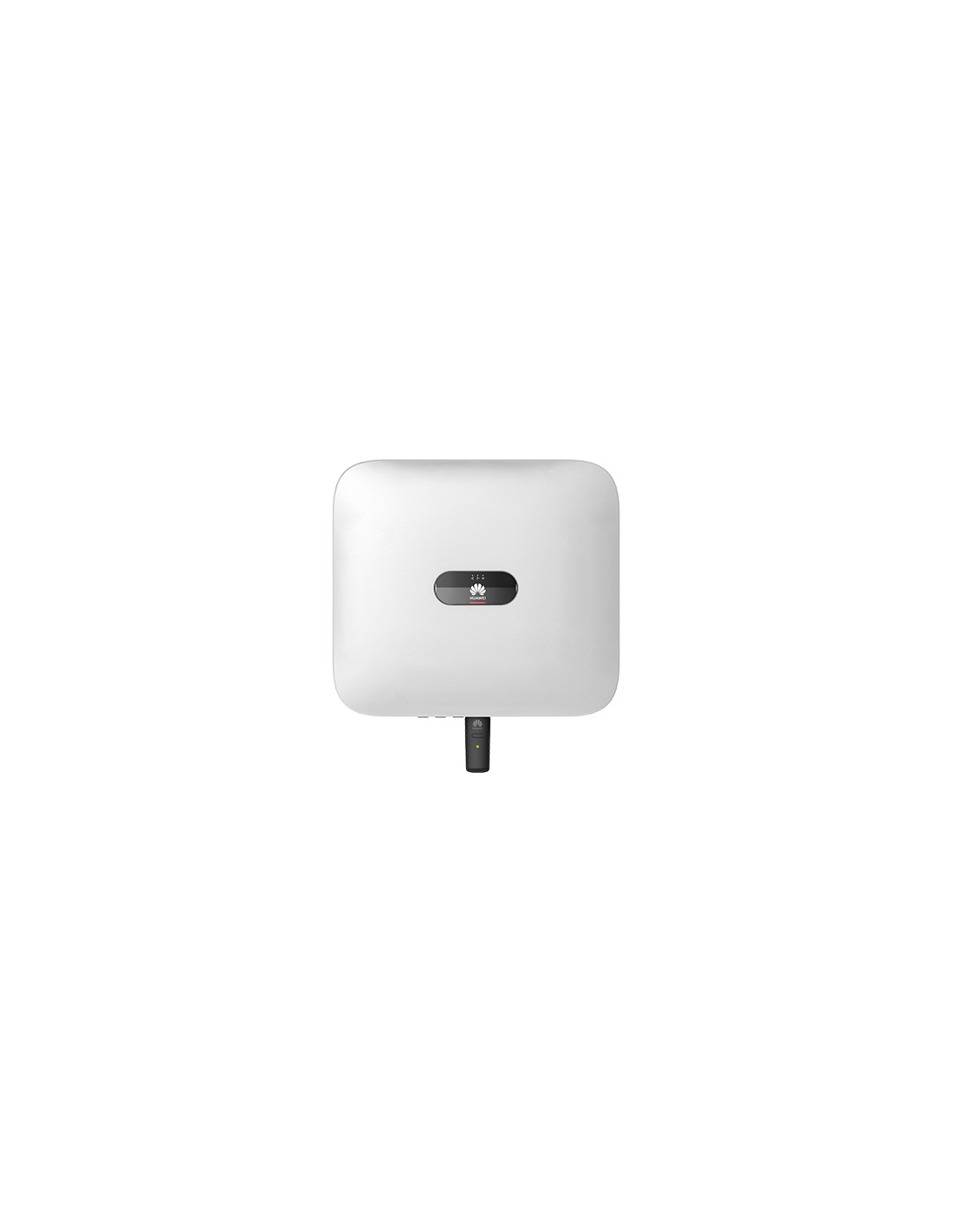

Three-phase Hybrid Inverter 8kW Huawei SUN2000-8KTL-M1-HC Solar High Current

Name: Three-phase Hybrid Inverter 8kW Huawei SUN2000-8KTL-M1-HC Solar High Current
Brand: Huawei
SKU: SUN2000-8KTL-M1-HC
Price: 947.76 EUR
Availability: InStock

Reference SUN2000-8KTL-M1-HC

Last items in stock

€947.76

VAT included 10 %

€861.60 Vat excl.

Huawei's Three-phase inverters of the SUN2000 series (Smart Energy Center) are Huawei's Hybrid solution for residential connected photovoltaic systems. The particularity of these products and that are already prepared for the contextual or future insertion of lithium batteries for accumulation. All Huawei inverters comply with CEI 0-21.

Hybrid Three-phase Inverter Huawei 8kW SUN2000 High Voltage

Model: SUN2000-8KTL-M1-HC

Huawei SUN2000 three-phase

The SUN2000 inverter is a three-phase grid-tied PV string inverter that converts the DC power generated by PV strings into AC power and feeds the power into the power grid.

The SUN2000 applies to residential rooftop grid-tied systems and small-sized ground PV plant grid-tied systems. Typically, a grid-tied system consists of PV strings, grid-tied inverters, AC switches, and power distribution units.

Strength points:

Character: the inverter has an attractive design;
Innovative:the brid inverter works in Ac and is ready for the Accumulation with Lithium Ion batteries. Management options Huawei optimizers (optional);
Easy to Install: It can also be installed by one person thanks to the reduced weight. It has an optimized AC connector for fast wiring and supports one-click inverter configuration;
Safe and Reliable: integrated electronic protections Ac and Dc and IP65 protection degree with natural cooling.

Technical Specification

Input (PV)
Recommended max. PV power	12,000 Wp
Max. input voltage	1,100 V
Operating voltage range	140 V ~ 980 V
Number of MPP trackers	2
Max. input current per MPPT	13.5 A
Max. short-circuit current	19.5 A
Input (DC Battery）
Compatible Battery	HUAWEI Smart String ESS 5kWh –30kWh
Operating voltage range	600 V ~ 980 V
Max operating current	16.7 A
Output (On Grid）
Grid connection	Three-phase
Rated output power	8,000 W
Max. apparent power	8,800 VA
Rated output voltage	220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 3W / N+PE
Rated AC grid frequency	50 Hz / 60 Hz
Max. output current	13.5 A
Output (Off Grid）
Backup Box (Optional)	Backup Box –B1
Maximum apparent power	3,300 VA
Rated output voltage	220 V / 230 V
Maximum output current	15 A
Features & Protections
Protection	Input-side disconnection device, Anti-Islanding protection, DC reverse polarity protection, Insulation monitoring, DC surge protection, AC surge protection, Residual current monitoring, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, Arc fault protection, Ripple receiver control, Integrated PID recovery 5, Battery reverse charging from grid.
General Data
Cooling	Natural convection
Display	LED Indicators; Integrated WLAN + FusionSolar App
Communication	RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket)	17 kg (37.5 lb)
Dimension (incl. mounting bracket)	525mm x 470mm x 146.5mm (20.7 x 18.5 x 5.8 inch)
Degree of protection	IP65
Nighttime Power Consumption	< 5.5 W
Optimizer Compatibility
DC MBUS compatible optimizer	SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P
Standard Compliance
Certificate	EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid connection standards	G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
