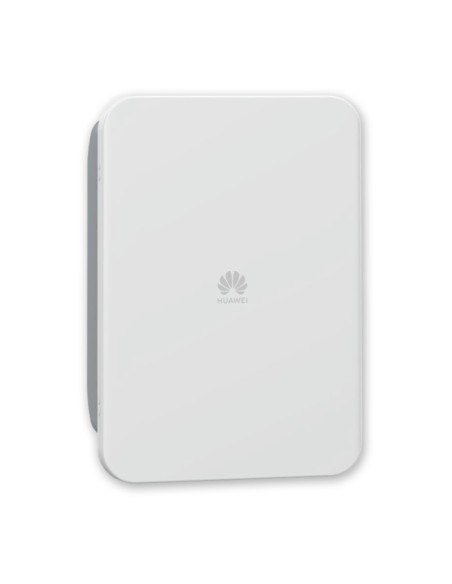

Single-Phase Backup System SmartGuard 63A-S0 HUAWEI for photovoltaic systems
HUA-SMART-GUARD-63A-S0
€1,317.03
VAT included
10 %
€1,197.30 Vat excl.
- Simple: Whole house backup, no need for additional switchboard;
- Seamless: ≤20ms Ultra-fast switching to power backup mode;
- Reliable: Provides bypass mode when a fault occurs;
- Intelligent: Intelligent load control with built-in EMMA.
Single-Phase Backup System SmartGuard 63A-S0 HUAWEI for photovoltaic systems
- Simple: Whole house backup, no need for additional switchboard;
- Seamless: ≤20ms Ultra-fast switching to power backup mode;
- Reliable: Provides bypass mode when a fault occurs;
- Intelligent: Intelligent load control with built-in EMMA.
For more details, download the following documents:
-
Datasheet [Download]
Technical features:
| PERFORMANCE | |
| Connection to the network | Single-phase |
| Rated AC voltage | 220/230/240V L/N+PE |
| Maximum current (from the grid) | 63A |
| Maximum current (from the inverter) | 60A |
| Maximum current (at load of backup) | 63A |
| Maximum Current (at Non-BackupLoad) | 63A |
| Self-consumption | 10W |
| Low voltage switchover | Supported |
| Switchover time | ≤ 20 ms (in non-stop mode) |
| Bypass operating mode | Manual |
| INTERFACE | |
| Output power | Power output 9.5 ~ 13.2V @ 100mA, ≤ 3m |
| LAN and WAN | 10 / 100Mbps, ≤ 100m |
| WLAN | AP Mode, 802.11b/g/n (2.412GHz ~ 2.484GHz) |
| RS485 | 9600 / 19200 / 115200bps,× 2, ≤ 50m |
| Digital input and output | ×2, ≤ 20m |
| MEASURING RANGE | |
| Current range | ≤ 63 A |
| Voltage range | 1P (L-N): 85 ~ 299 Vac |
| Energy accuracy | ± 1% |
| DEVICE MANAGEMENT | |
| Smart Energy Controllers | up to 1 |
| Smart Chargers | up to 2 |
| Heat Pump | up to 1 |
| Shelly Device | up to 20 |
| ENVIRONMENT | |
| Noise emission | ≤ 29dBA |
| Cooling | Natural convection |
| Relative humidity range | 5%-95% RH (non-condensing) |
| Maximum operating altitude | 4000 m (derating above 2000 m) |
| Degree of protection | IP55 |
| Operating temperature range | -25°C~50°C |
| COMPATIBLE DEVICE | |
| Intelligent energy regulator | SUN2000-2-6KTL-L1 / SUN2000-8-10K-LC0 |
| Smart charger | SCharger-7KS-S0 |
| Heat pump | SG-ready |
| Shelly Device | Shelly Plus Plug S, Shelly Plus 2PM, Shelly Pro 2PM |
- Typology
- Single-phase
8370000051374
