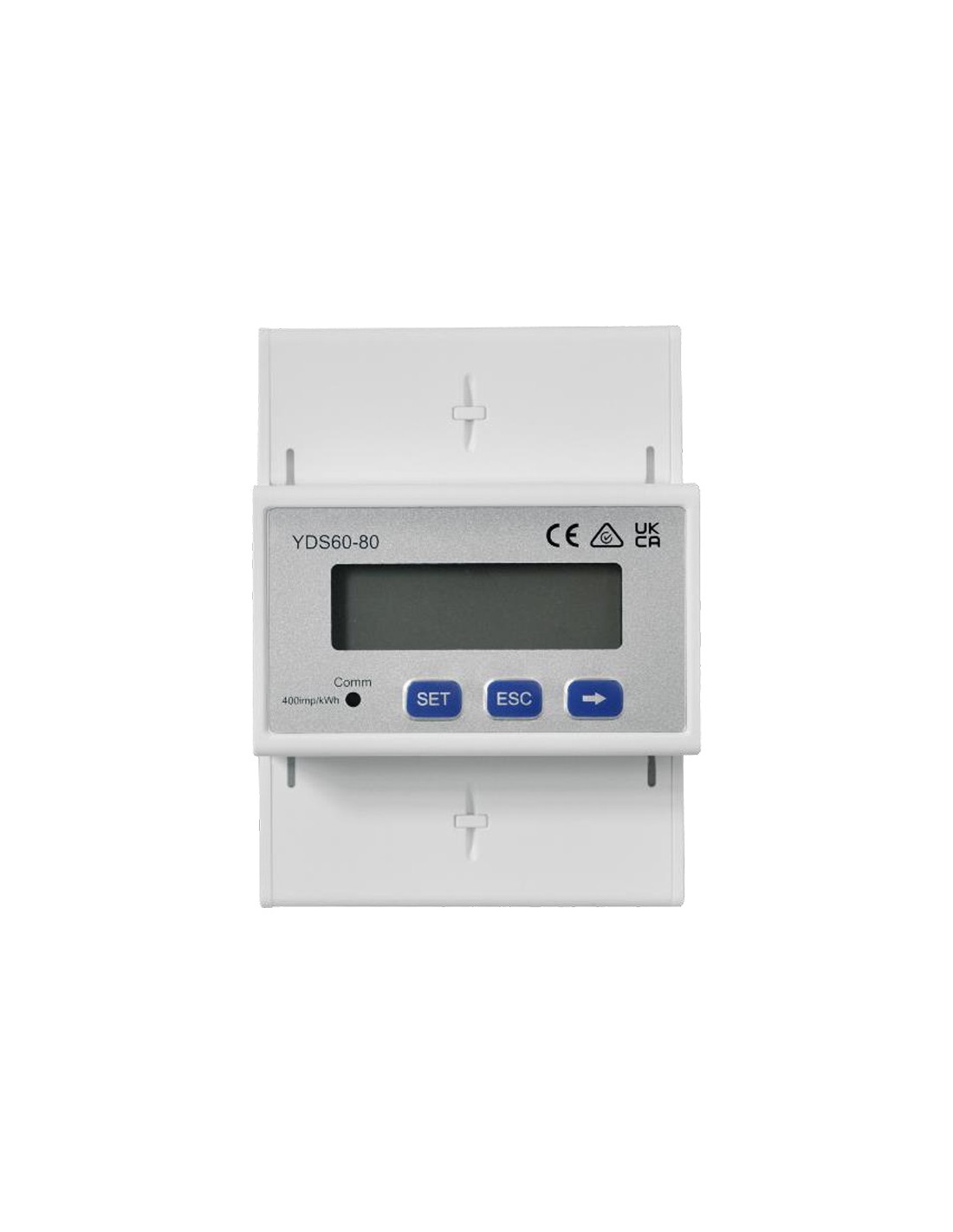

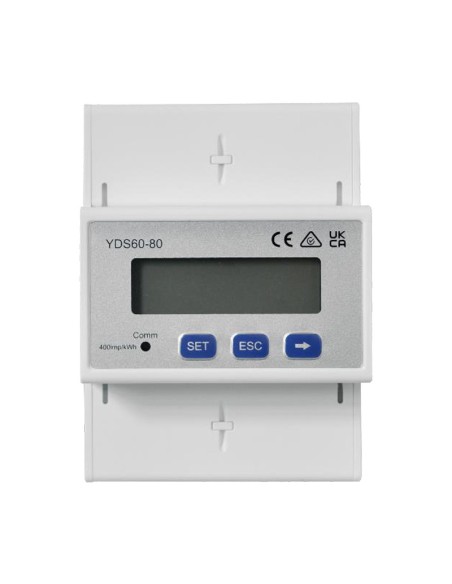

Huawei three-phase SmartPower Sensor 80A meter with DIN rail for inverters MB0
Huawei three-phase SmartPower Sensor 80A meter with DIN rail for inverters MB0

Huawei three-phase SmartPower Sensor 80A meter with DIN rail for inverters MB0

HUW-DTSU666-HW/YDS60-80
€173.91
VAT included 10 %

€158.10 Vat excl.

SolarEdge SE-MTR-SPL-100A-A 230/400V energy meter for single-phase and three-phase inverters of the SolarEdge range.



Huawei three-phase SmartPower Sensor 80A meter with DIN rail for inverters MB0

Main features

  • Accurate measurement (class 1);
  • Simple setup thanks to its LCD display;
  • Maximum efficiency with a total absorption ≤ 1.5W.

For more details, download the following documents:

Tecnical features

Power Supply
Power grid type 3P4W/3P3W
Input voltage (line voltage) 90 ~ 500 Vac
Power consumption ≤ 1.5 W
Measurement Range
Line voltage 90 Vac ~ 1000 Vac (> 500 with external PT 1)
Phase voltage 52~577 Vac
Current 0 ~ 80 A(>80 with external CT 2)
Measurement Accuracy
Voltage / Current ±0.5 %
Power / Energy ±1 %
Frequency ±0.01 Hz
Communication
Interface RS485
Baud rate 4800/9600/19200/115200 (Default 9600bps)
Communication protocol Modbus-RTU
Environment
Operating temperature range -25 ℃ ~ 60 ℃
Storage temperature range -40 ℃ ~ 70 ℃
Operating humidity EN 55022 Classe B
General Data
Dimension (H x W x D) 100 x 72 x 80 mm
Mounting type DIN35 Rail
Weight (including cables) < 0.5 kg
Accessories RS485 Cable (10 m)
