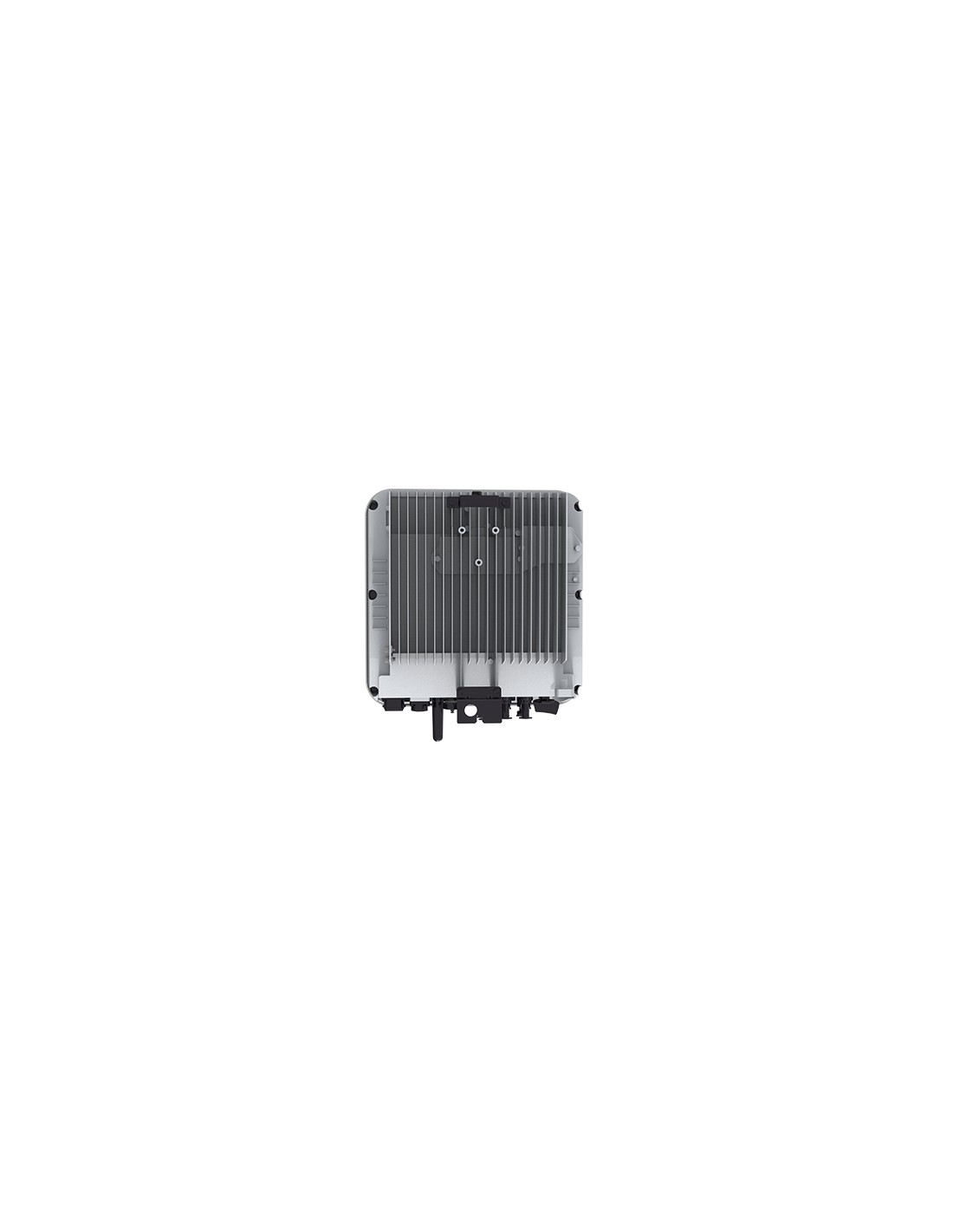

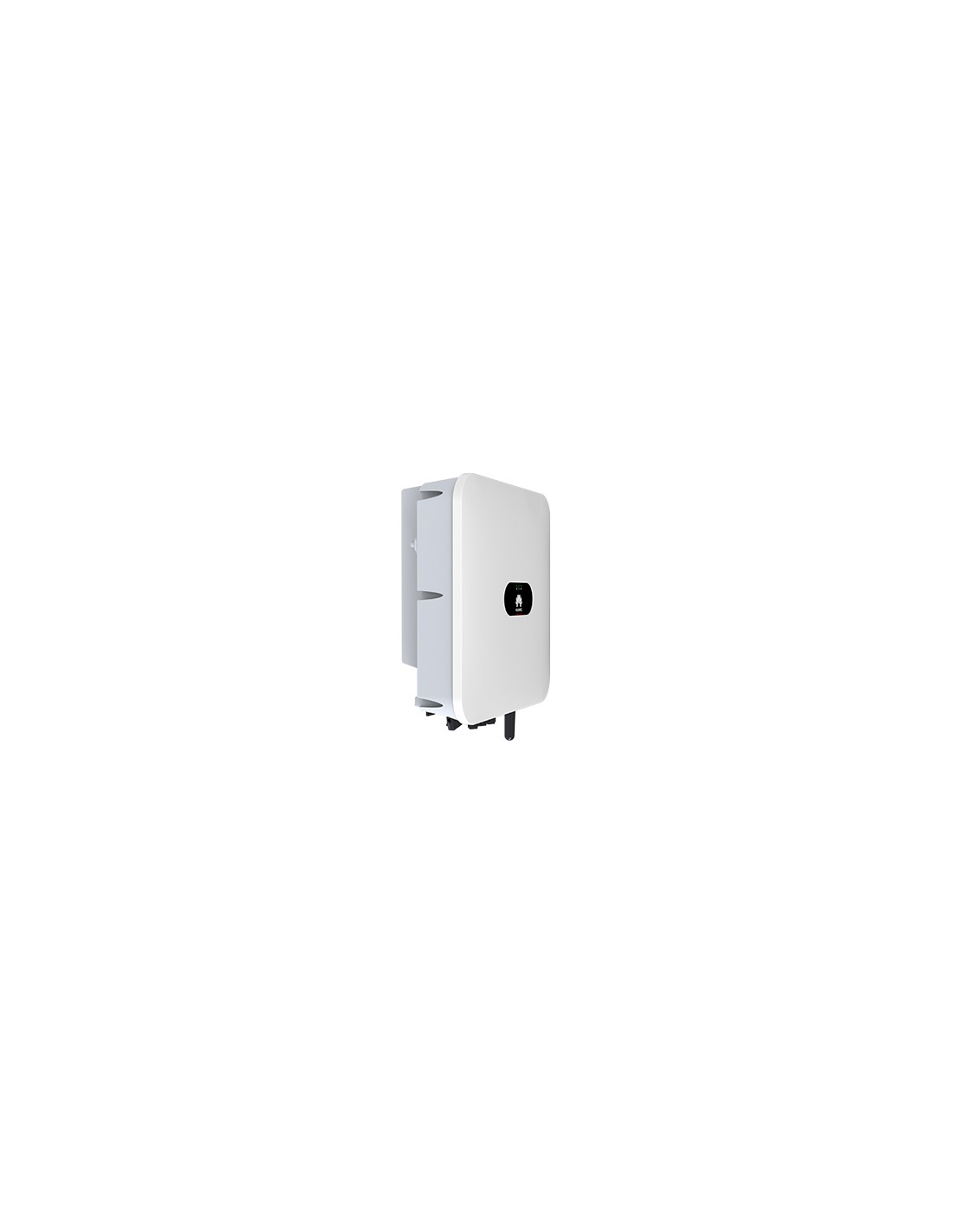

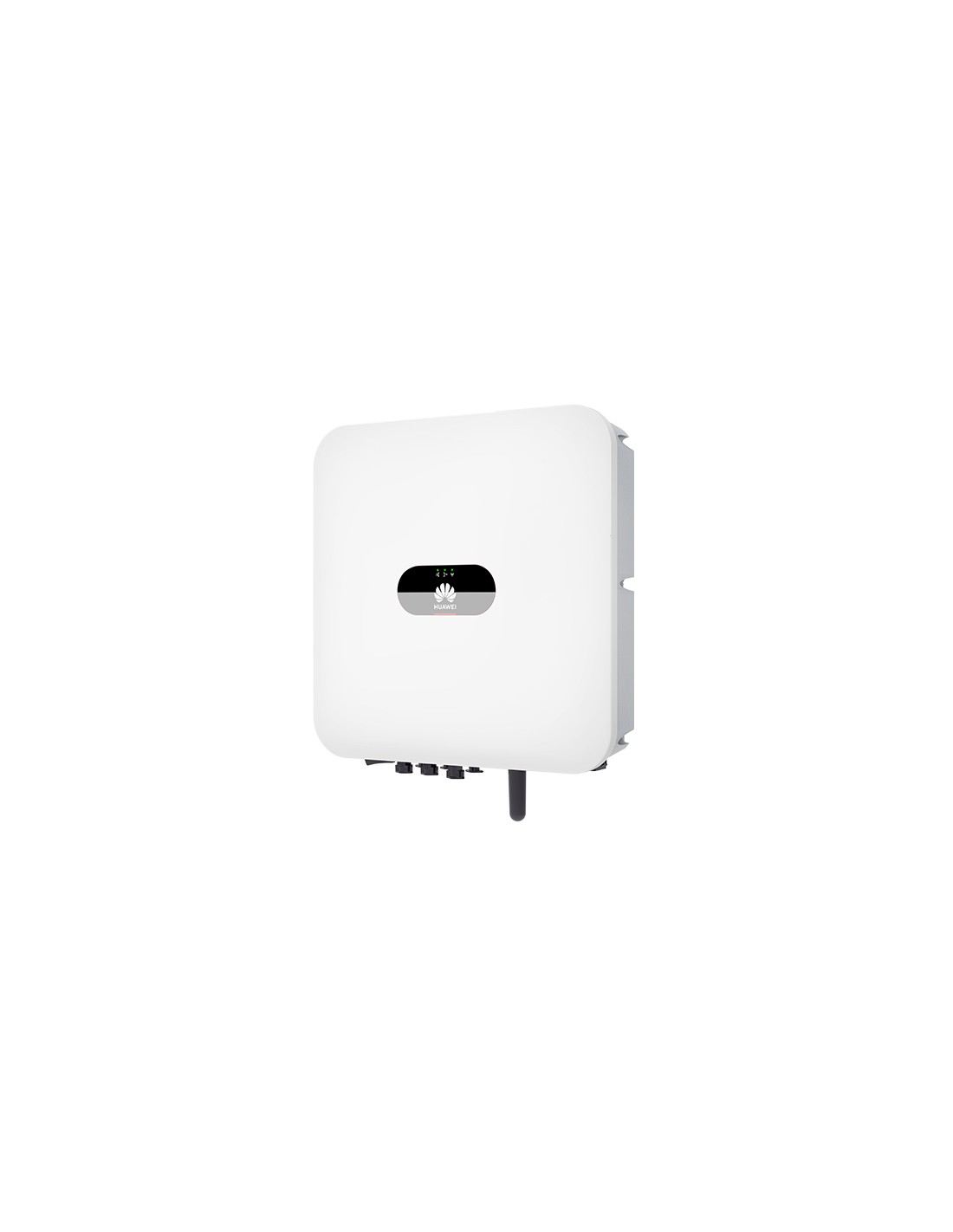

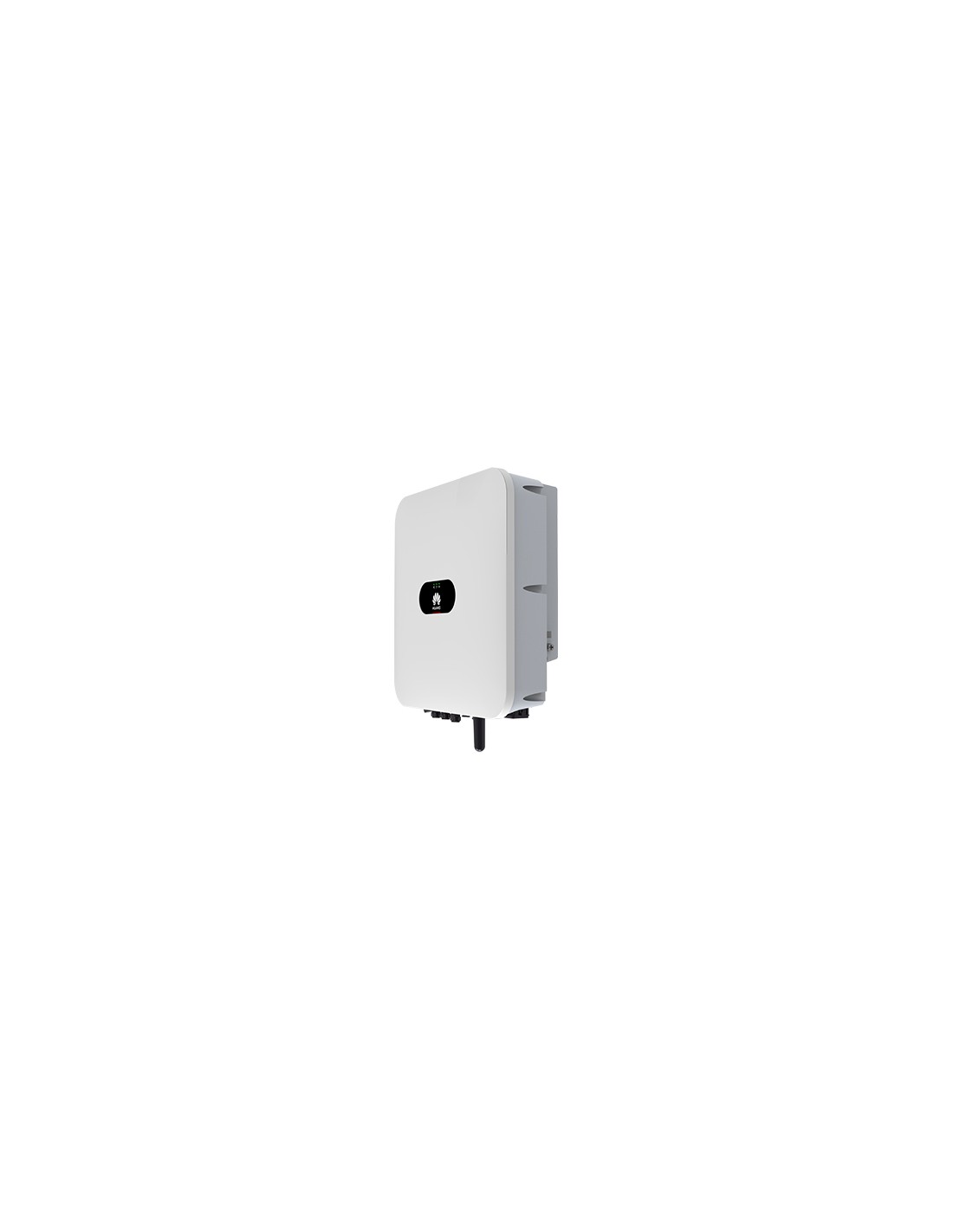

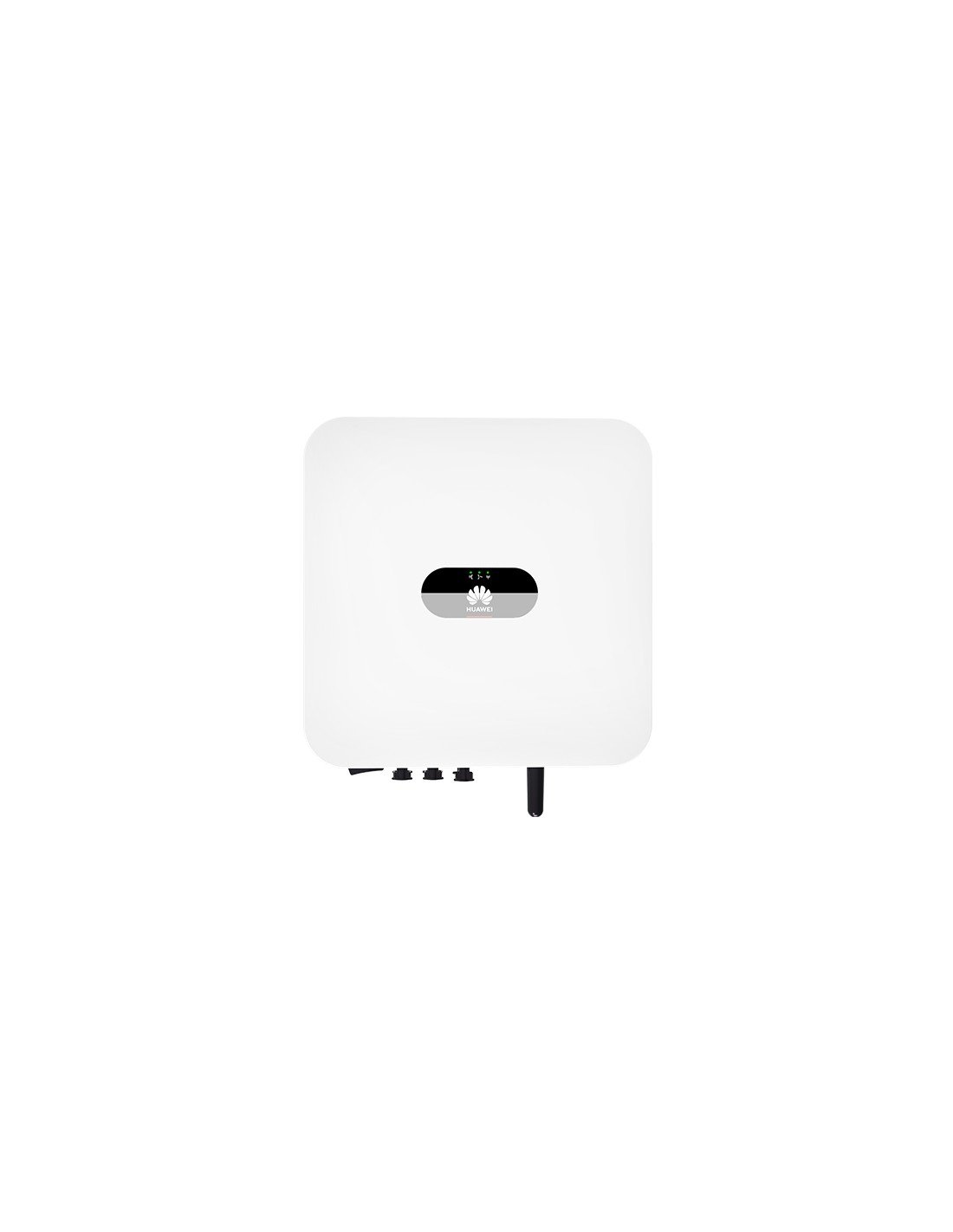

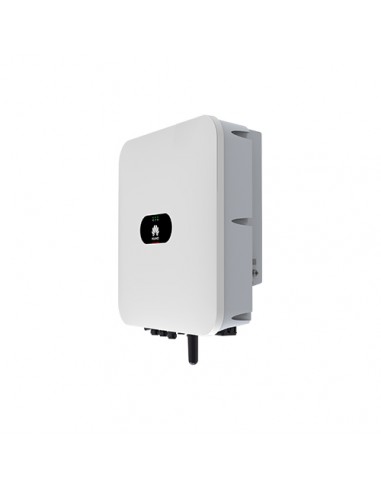

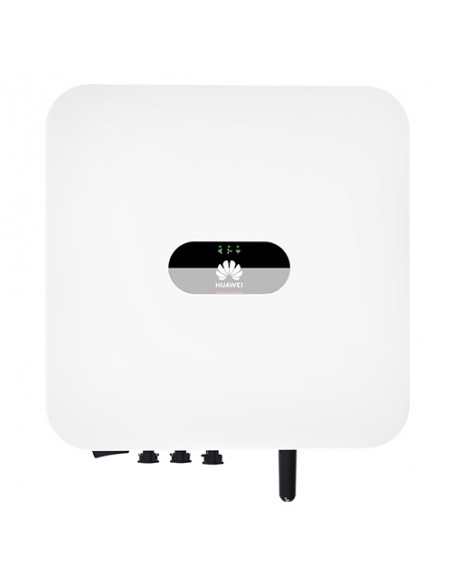

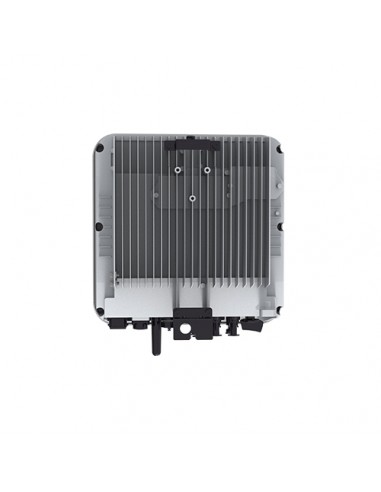

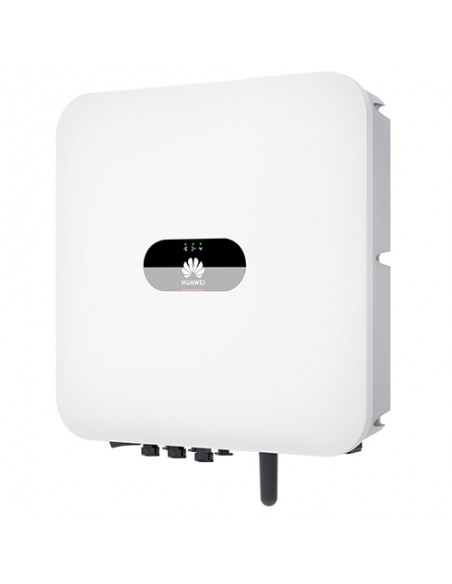

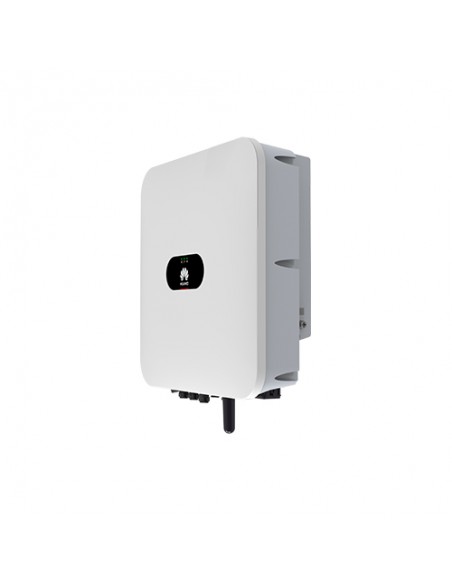

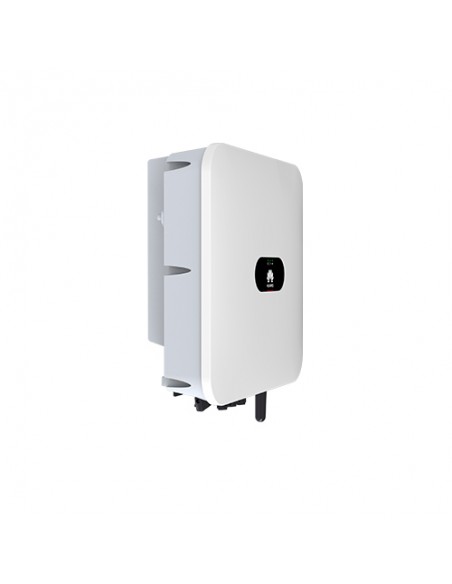

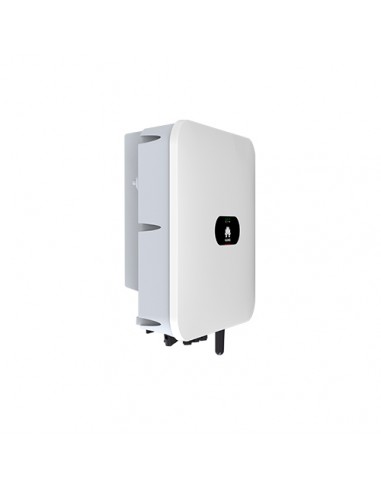

Huawei Hybrid Inverter 5kW SUN2000-5KTL-L1 Solar Photovoltaic Accumulation Battery

Huawei Hybrid Inverter 5kW SUN2000-5KTL-L1 Solar Photovoltaic Accumulation Battery

Name: Huawei Hybrid Inverter 5kW SUN2000-5KTL-L1 Solar Photovoltaic Accumulation Battery
Brand: Huawei
SKU: SUN2000-5KTL-L1
Price: 699.91 EUR
Availability: InStock

Reference SUN2000-5KTL-L1

€699.91

VAT included 10 %

€636.28 Vat excl.

Huawei's single-phase inverters of the SUN2000 series (Smart Energy Center) are Huawei's Hybrid solution for residential connected photovoltaic systems. The particularity of these products and that are already prepared for the contextual or future insertion of lithium batteries for accumulation. All Huawei inverters comply with CEI 0-21.

Hybrid Inverter Huawei 5kW SUN2000

Model: SUN2000-5KTL-L1

Huawei SUN2000 single phase

The single-phase inverter Huawei SUN2000 is a jewel of efficiency and elegance. The minimal and linear design has been awarded with the prestigious Reddot Award 2016 as the best product of the year. Its strong point is its highly reliable performance and high performance.
The Huawei inverter can reach an efficiency of 98.6%! Thanks to Huawei single-phase inverters, you are sure to make the most of your photovoltaic system production.

Strength points:

Character: the inverter has an attractive design and a weight of just over 10 kg;
Innovative:the brid inverter works in Ac and is ready for the Accumulation with Lithium Ion batteries. Management options Huawei optimizers (optional)
Easy to Install: It can also be installed by one person thanks to the reduced weight. It has an optimized AC connector for fast wiring and supports one-click inverter configuration
Safe and Reliable: integrated electronic protections Ac and Dc and IP65 protection degree with natural cooling.

Technical Specification

Input （PV）
Recommended max. PV power	7.500 Wp
Max. input voltage	600 V
MPPT operating voltage range	90 V – 560 V
Number of MPP trackers	2
Input （DC Battery）
Compatible Battery	LG Chem RESU 7H_R / 10H_R
Operating voltage range	350 ~ 450 Vdc
Compatible Battery	HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh
Operating voltage range	350 ~ 560 Vdc
Output （On Grid）
Grid connection	Single phase
Rated output power	5.000 W
Max. apparent power	5.500 VA
Rated output voltage	220 Vac / 230 Vac / 240 Vac
Rated AC grid frequency	50 Hz / 60 Hz
Protection & Feature
Protection	Anti-Islanding protection; DC reverse polarity protection; Insulation monitoring; DC surge protection; AC surge protection; Residual current monitoring; AC overcurrent protection; AC short-circuit protection; AC overvoltage protection; Over-heat protection; Arc fault protection; Battery reverse charging from grid.
General Data
Cooling	Natural convection
Display	LED indicators; integrated WLAN + FusionSolar APP
Communication	RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket)	12.0 kg (26.5 lb)
Dimension (incl. mounting bracket)	365mm x 365mm x 156 mm - (14.4 x 14.4 x 6.1 inch)
Degree of protection	IP65
Nighttime Power Consumption	< 2.5 W
Optimizer Compatibility
DC MBUS compatible optimizer	SUN2000-450W-P
Standard Compliance
Safety	EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards	G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116
