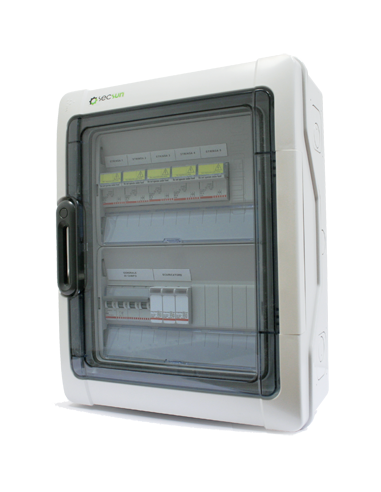

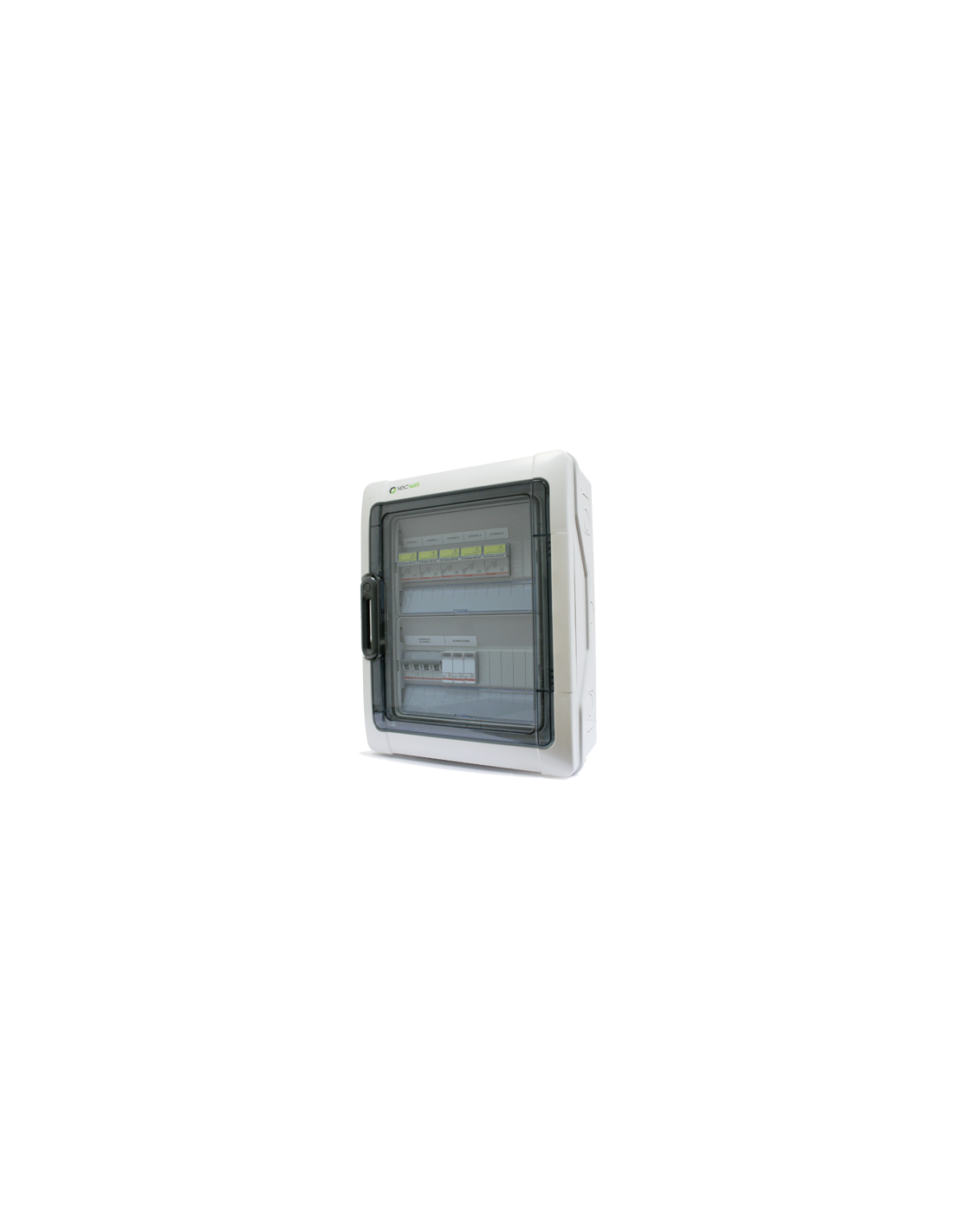

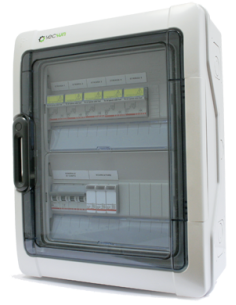

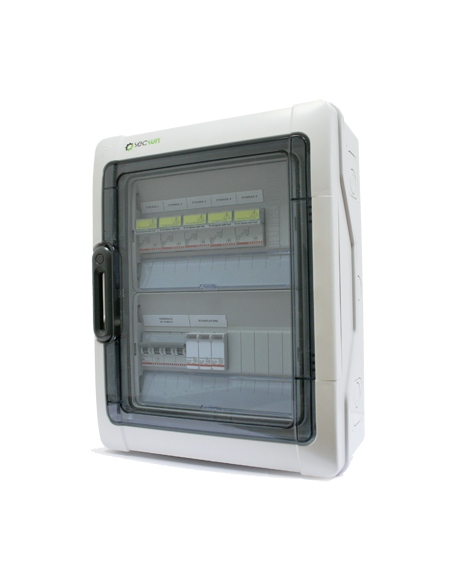

UNDER 5 800VDC FIELD STRINGS IN PARALLEL to PHOTOVOLTAIC SOLAR INSTALLATIONS

Quadro di campo 5 stringa in parallelo 800VDC

5 Fuseholder breaker: 2P 10 fuse12A - 1000VDC
1 Surge arrester: 2P+ground (1000VDC)
1 Disconnector: 63A (1000 VDC)
Protection: IP 65
Framework Measures: 350 x 300 x 160 mm (WxHxL)

Name: Quadro di campo 5 stringa in parallelo 800VDC
Brand: Secsun
SKU: QDC5-800
Price: 433.46 EUR
Availability: InStock

Reference QDC5-800

€433.46

VAT included 10 %

€394.05 Vat excl.

I Quadri DC sono indispensabili per assicurare sicurezza all'impianto fotovoltaico. I quadri DC sono posti tra i moduli fotovoltaici e gli inverter e servono ad interrompere in caso di manutenzione il flusso di corrente continua verso l'inverter.

DC Framework

DC Frameworks are essential to ensure safety to the PV system. DC Frameworks are placed between the photovoltaic modules and the inverters and serve to stop in case of maintenance the flow of current to the inverter. They also serve to protect the system against overcurrent and overvoltage. Frameworks are composed of DC fuse holder, cylindrical fuses and surge arresters.

The careful choice of equipment constituting the electronic equipment is carried out in compliance with the CEI-EN60439-1 (CEI 17-13 / 1).
