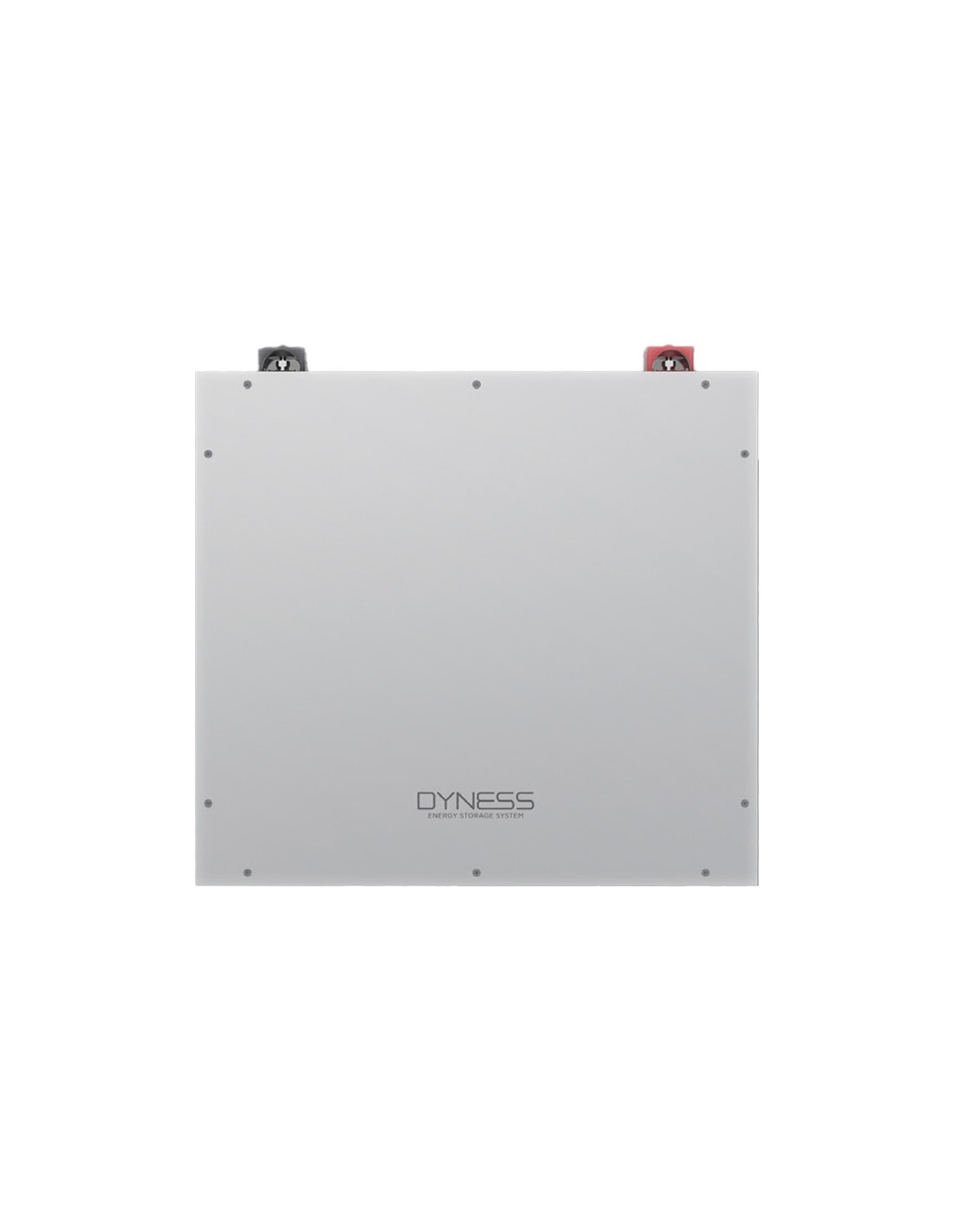

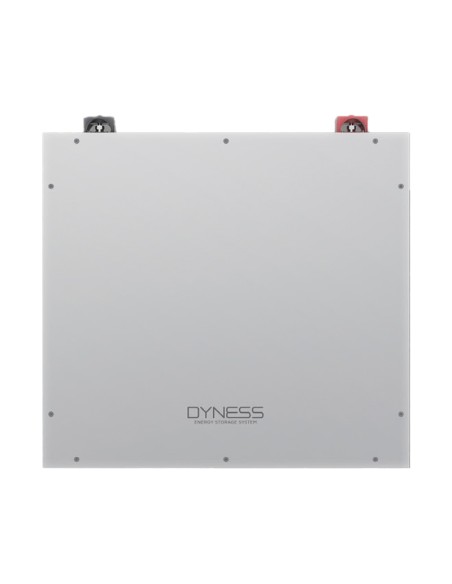

Dyness DL5.0C 5.12kWh low voltage lithium battery photovoltaic storage
DL5.0C
Delivered in 3-4 days
€1,039.94
VAT included
10 %
€945.40 Vat excl.
DL5.0C battery module is designed for residential and small commercial applications, with up to 50 units in parallel and energy range from 5.12kWh to 256kWh.
Dyness DL5.0C 5.12kWh low voltage lithium battery
Main features
DL5.0C battery module is designed for residential and small commercial applications, with up to 50 units in parallel and energy range from 5.12kWh to 256kWh. It supports 1C discharge rate. With high cycle times and long life, it ensures worry-free electricity consumption.
- Flexible Expansion: up to 50 units in parallel, 5.12kWh - 256kWh capacity;
- 1C Discharge: simultaneously supplying power to multiple loads, no need to worry about power outages;
- Automatic Self-heating: -20°C to 55°C operating temperature;
- Easy installation: support wall-mounted, floor-mounted, stacked and rack-mounted installations, high space utilization;
- Long-term Reliability: LFP cells, 6000+ cycles, 10 year warranty;
- All-round Safety: short-circuit lockout, surge-resistant, safe and reliable.
NOTE: After completing the installation of the battery system and verifying its correct functioning, you must access the official DYNESS website to register the product and activate the warranty.
To register, go to the dyness.com website, select service -> Warranty registration and fill out the form.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
DL5.0C | |
Cell technology | Lithium Iron Phosphate |
Battery nominal energy | 5.12kWh |
Nominal voltage | 51.2V |
Nominal capacity | 100Ah |
Operating voltage | 44.8 ~ 57.6V |
Maximum Charge/Discharge Current | 75A/100A |
Recommended Charge/Discharge Current | 0.5C |
Depth of Discharge (DOD) | 90% |
Charging Temperature Range | 0~55℃/-20~55°C |
Discharging Temperature Interval | -20~55℃ |
Life cycle | ≥6000 cycles |
Communication | CAN/RS485/RS232 |
Dimensions | 558 x 545 x 150 mm |
Weight | 54 kg |
Compatible inverters | SMA/Scheider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Soplanet/Luxpower/DEYE etc. |
Certifications | UN38.3/CE-EMC/IEC62619/IEC60730/CEI-021/GOST-R |
- Typology
- Lithium
- Voltage (V)
- 51.2V
- Accumulation capacity
- 5.12kWh
