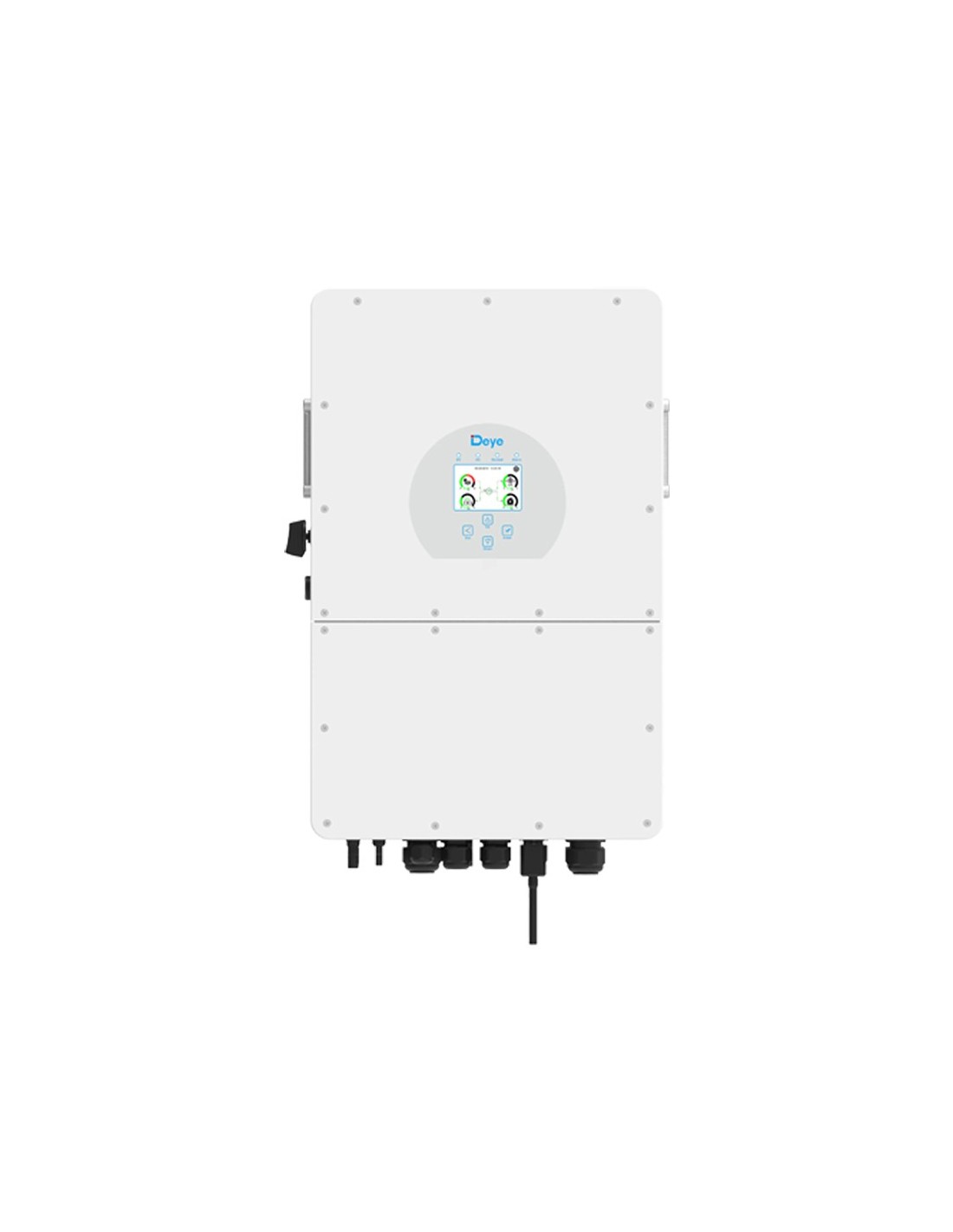

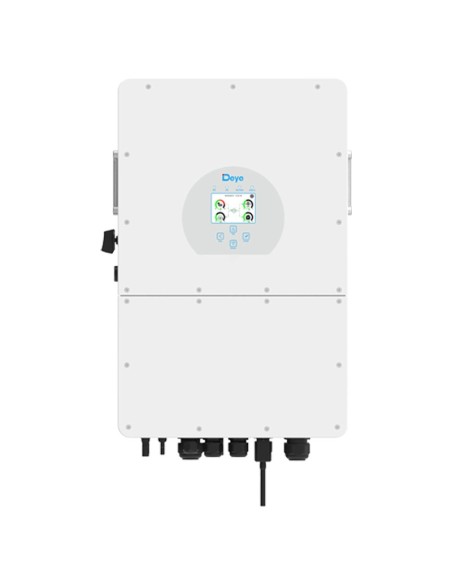

Three-phase hybrid inverter 20kW Deye SG03LP1 photovoltaic lithium storage
Three-phase hybrid inverter 20kW Deye SG03LP1 photovoltaic lithium storage

Three-phase hybrid inverter 20kW Deye SG03LP1 photovoltaic lithium storage

SUN-20K-SG01HP3-EU-AM2
€2,443.57
VAT included 10 %

€2,221.43 Vat excl.

The Deye three-phase hybrid inverter with high voltage battery guarantees a safe and reliable system, with a compact design and high power density.



Three-phase hybrid inverter 20kW Deye SG03LP1


SUN-20K-SG01HP3-EU-AM2 is a brand new three-phase hybrid inverter with high voltage battery, which guarantees a safe and reliable system. With a compact design and high power density.

The Deye hybrid inverter maximizes the self-consumption rate of solar energy and increases energy independence. During the day, the photovoltaic system generates electricity which will initially be supplied to the loads, then the excess energy will charge the battery.

Finally, stored energy can be released when loads require it. The battery can also be charged from the generator to guarantee uninterrupted power supply in the event of a grid blackout.


Key Benefits

  • 100% balanced output in each phase, Maximum output up to 50%;
  • Maximum 10 inverters in parallel for on-grid and off-grid operation, Supports multiple batteries in parallel;
  • Maximum charge/discharge current of 37A;
  •  greater efficiency with high voltage battery;
  • 6 periods of time to charge/discharge the battery;
  • Supports energy charging from the generator.
  • Stick Logger LSW-3-C INCLUDED.

For more details, download the following documents:


Technical features

Battery input data
Template SUN-20K-SG01HP3-EU-AM2
Battery type Lead acid or lithium ion
Battery voltage range (V) 160-700V
Maximum charging current (A) 37A
Maximum discharge current (A) 37A
Charging curve 3 Stages / Equalization
Battery input number 1
Charging strategy for the lithium ion battery Self-adaptation to the BMS
PV string input data
Maximum DC input power (W) 26000W
Maximum DC input voltage (V) 1000w
Starting voltage (V) 150V
MPPT range (V) 200V-850V
Full load DC voltage range 500-850
PV input current (A) 26A+26A
Maximum PV ISC (A) 32A+32A
Number of MPPT trackers 2/2
AC Output Data
Rated AC output and UPS power (W) 20000W
Maximum AC Output Power (W) 22000W
Peak power (off-grid) 1.5 times the rated power, 10S
Rated AC output current (A) 30.3A
Maximum AC Current (A) 35A
Maximum continuous AC passage (A) 80A
Output frequency and voltage 50/60Hz; 3L/N/PE 220/380 Vac, 230/400 Vac
Type of grid Three-phase
DC injection current (mA) <0.5%1n
Efficiency
Maximum Efficiency 97.60%
Euro Efficiency 97.00%
MPPT efficiency 99.90%
Protection
Protection against lightning at photovoltaic input Integrated
Anti-island protection Integrated
Reverse polarity protection of PV string input Integrated
Insulation resistance detection Integrated
Residual current monitoring unit Integrated
output overcurrent protection Integrated
output short circuit protection Integrated
Output overvoltage protection Integrated
Surge protection Type CC II / Type CA II
Certifications and Standards
network regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
EMC Safety/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General data
Operating temperature range (℃) -40~60℃, >45℃ Derating
Cooling Intelligent cooling
Noise (dB) <45 decibels
Communication with BMS RS485
Weight (kg) 26
Dimensions (mm) 434W×645H×245D
Degree of protection IP65
Installation style Wall mounting
Warranty 5 years



Customer service


0882 22 82 47

MPPT number
2
Typology
Three-phase
Inverter power
20kW
Manufacturer Inverter
Deye
8370000036692
