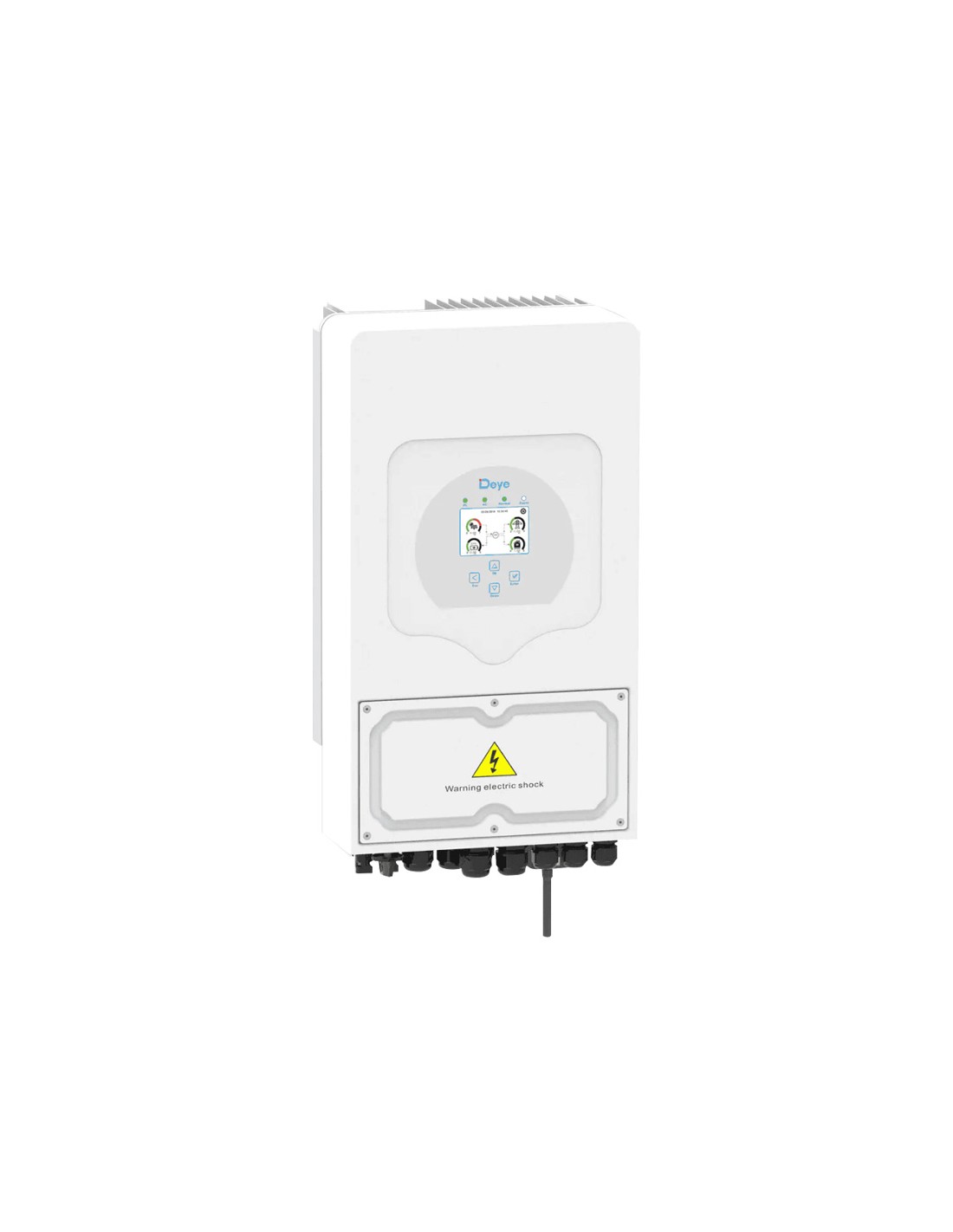

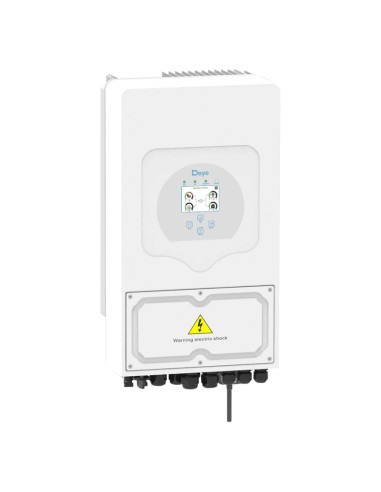

Single-phase hybrid inverter 3.6kW Deye SG03LP1 photovoltaic lithium storage
SUN-3.6K-SG03LP1-EU
Last items in stock
€922.63
VAT included
10 %
€838.75 Vat excl.
The Deye hybrid inverter is suitable for residential and commercial use, it maximizes the self-consumption rate of solar energy and increases energy independence.
Single-phase hybrid inverter 3.6kW Deye SG03LP1
The Deye hybrid inverter is suitable for residential and commercial use, it maximizes the self-consumption rate of solar energy and increases energy independence. During the day, the photovoltaic system generates electricity that will come initially supplied to the loads, then the excess energy will charge the battery.
Finally, stored energy can be released when the loads require it. The battery can can also be charged by the generator to guarantee uninterrupted power supply in the event of a grid blackout.
Key Benefits
- Colorful touch LCD, IP65 protection degree;
- ACcouple to retrofit existing solar system;
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel;
- Max. charging/discharging current of 90A;
- 6 time periods for battery charging/discharging;
- Support storing energy from diesel generator;
- Stick Logger LSW-3-C INCLUDED.
Technical features
Battery input data | |||
Template | SUN-3.6K-SG03LP1-EU | ||
Battery type | Lead acid or lithium ion | ||
Battery voltage range | 40~60V | ||
Maximum charging current | 90A | ||
Maximum discharge current | 90A | ||
Charging curve | 3 Stages / Equalization | ||
External temperature sensor | Optional | ||
Charging strategy for the lithium ion battery | Self-adaptation to the BMS | ||
PV string input data | |||
Maximum DC input power | 4680W | ||
PV input voltage | 370V (125V~500V) | ||
MPPT range | 150~425V | ||
Full load DC voltage range | 300~425V | ||
Starting voltage | 125 V | ||
PV input current | 13A+13A | ||
Max. Operating PV Input Current | 17A+17A | ||
Number of MPPT trackers | 2 | ||
Number of strings per MPPT tracker | 1+1 | ||
AC Output Data | |||
Rated AC output and UPS power | 3600W | ||
Maximum AC Output Power | 3960W | ||
Peak power (off-grid) | 2 times the nominal power, 10 S | ||
Rated AC input/output current | 16.4/15.7A | ||
Max. AC input/output current | 18/17.2A | ||
Power factor | 0.8 early - 0.8 late | ||
Output frequency and voltage | 50/60Hz; 220/230 / 240Vac (single phase) | ||
Type of grid | Single phase | ||
Current harmonic distortion | THD<3% (Linear load<1.5%) | ||
Efficiency | |||
Maximum Efficiency | 97.60% | ||
Euro Efficiency | 96.50% | ||
MPPT efficiency | 99.90% | ||
Protection | |||
Protection against lightning at photovoltaic input | Integrated | ||
Anti-island protection | Integrated | ||
Reverse polarity protection of PV string input | Integrated | ||
Insulation resistance detection | Integrated | ||
Residual current monitoring unit | Integrated | ||
output overcurrent protection | Integrated | ||
output short circuit protection | Integrated | ||
Output overvoltage protection | Integrated | ||
Surge protection | Type CC II / Type CA II | ||
Certifications and Standards | |||
network regulation | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3: 2019-05 | ||
Safety regulations | IEC62109-1, IEC62109-2 | ||
CEM | EN61000-6-1, EN61000-6-3 | ||
General data | |||
Operating temperature range (℃) | -25~60℃, >45℃ Derating | ||
Cooling | Intelligent cooling | ||
Rumore (dB) | <30 decibels | ||
Communication with BMS | RS485 | ||
Weight (kg) | 20.5 | ||
Dimensions (mm) | 330 ×580 ×232mm | ||
Degree of protection | IP65 | ||
Installation style | Wall mounting | ||
Warranty | 5 years |
- MPPT number
- 2
- Typology
- Single-phase
- Inverter power
- 3.68kW
- Manufacturer Inverter
- Deye
8370000042044
