Single-phase storage system 6kW DEYE inverter lithium battery Dyness B4850 7.2kWh

With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Deye storage system will allow you to maximize the returns of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to powering the loads and storing energy in the lithium battery DYNESS compared to online sales. In this way you can use the previously stored energy even when the photovoltaic system is not producing, maximizing domestic self-consumption.

5 YEAR WARRANTY FOR DEYE INVERTER

NOTE: After completing the installation of the battery system and verifying its correct functioning, you must access the official DYNESS website to register the product and activate the warranty.
To register, go to the dyness.com website, select service -> Warranty registration and fill out the form.

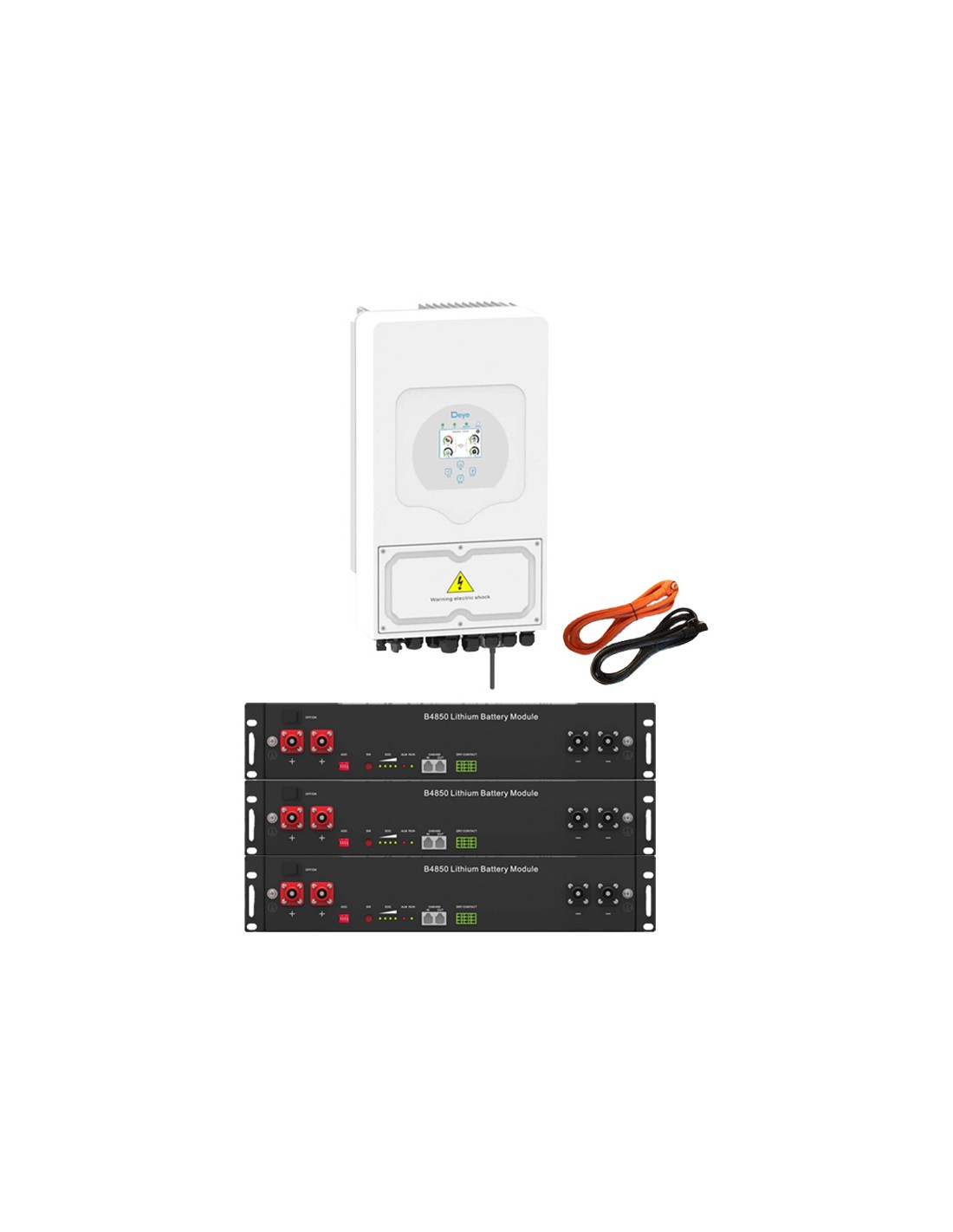

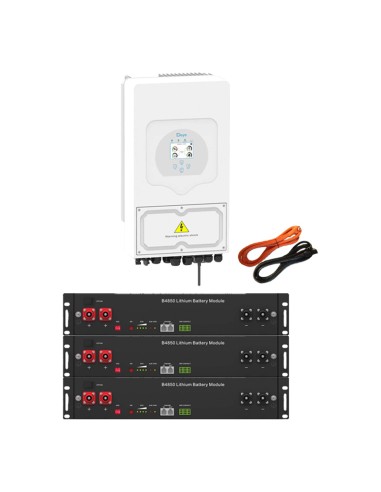

COMPONENTS OF THE KIT

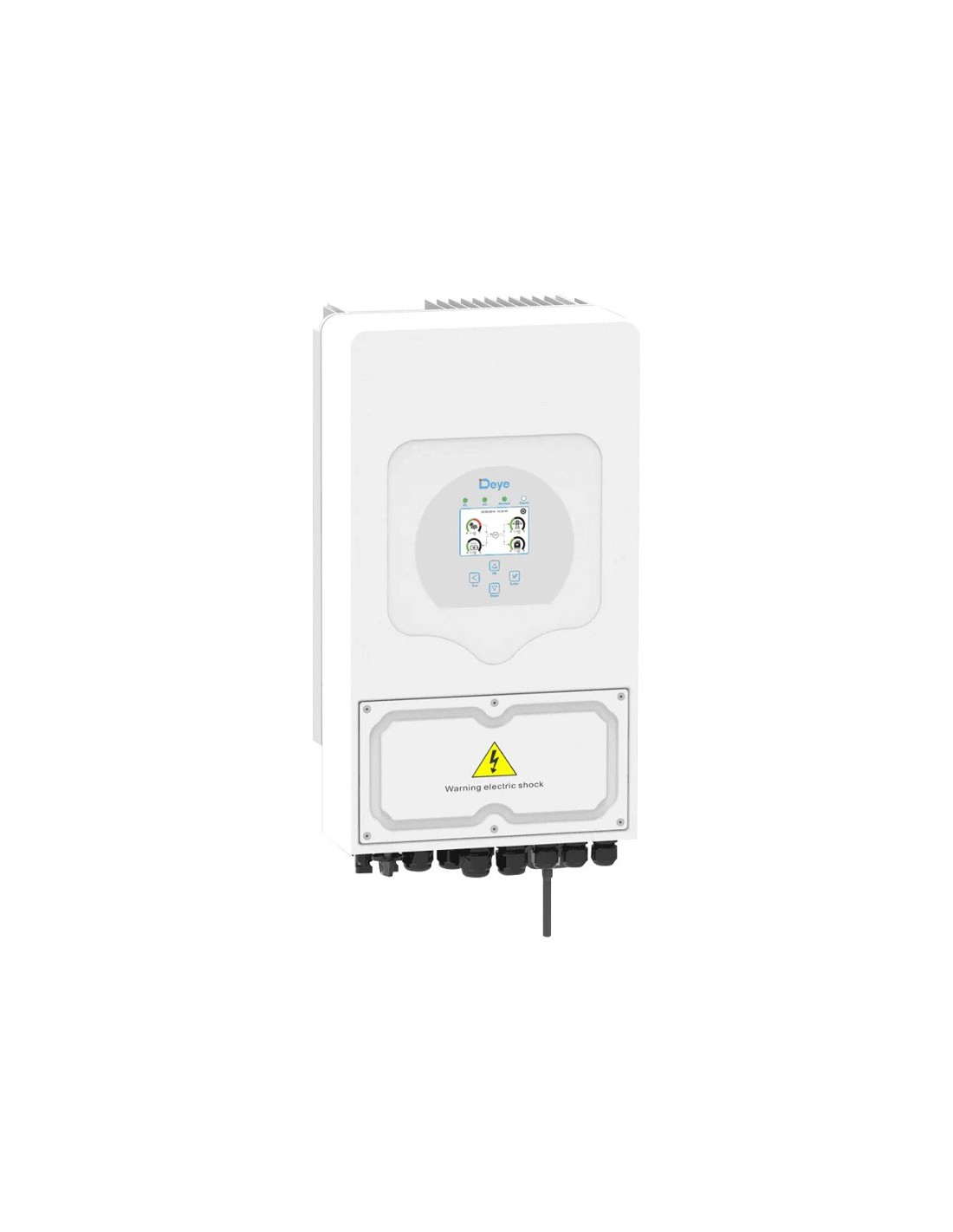

	1	Inverter Hybrid	6kW single-phase hybrid inverter for photovoltaic system with lithium storage	Download

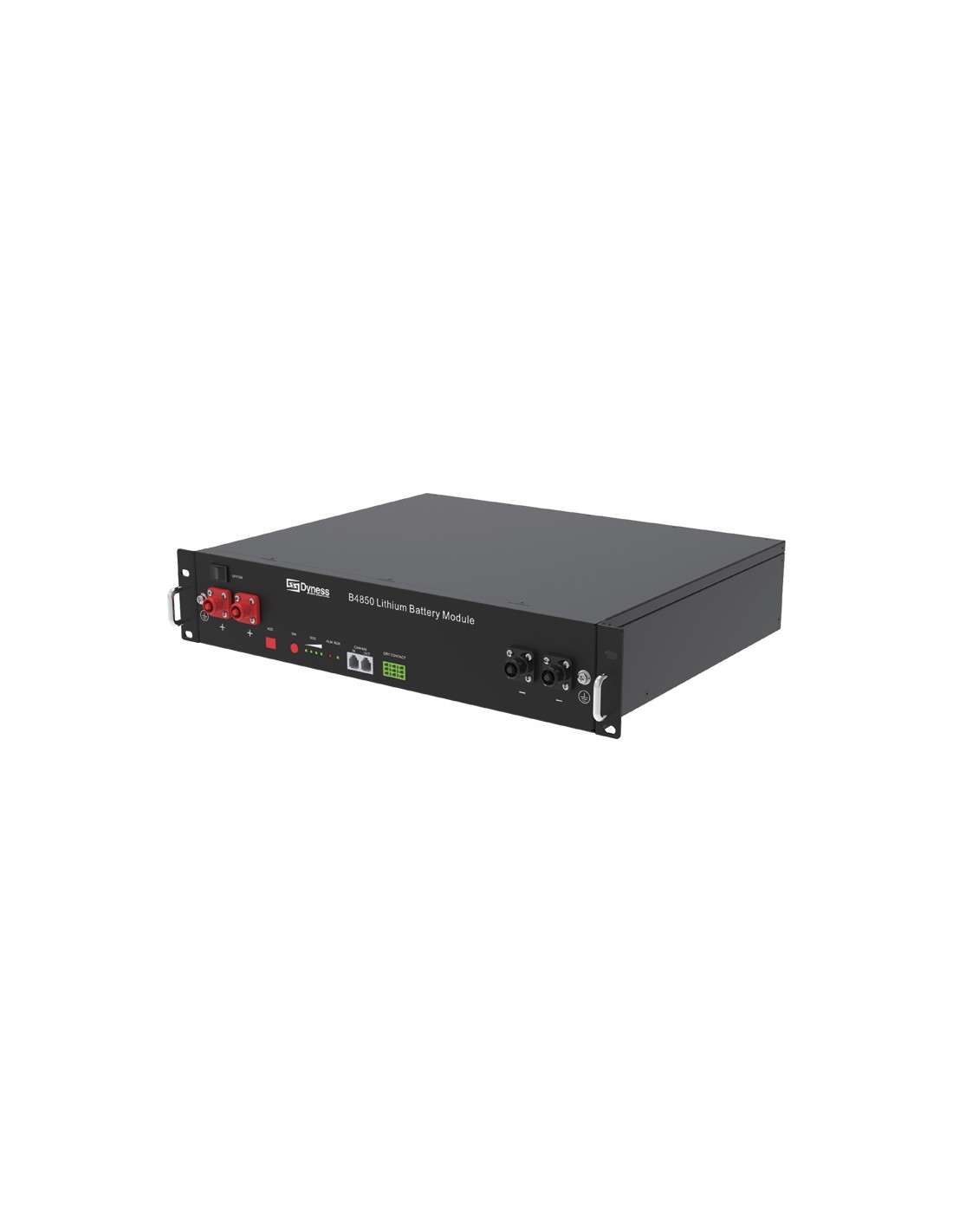

	3	Lithium Battery	Dyness B4850 2.4kWh lithium battery	Download

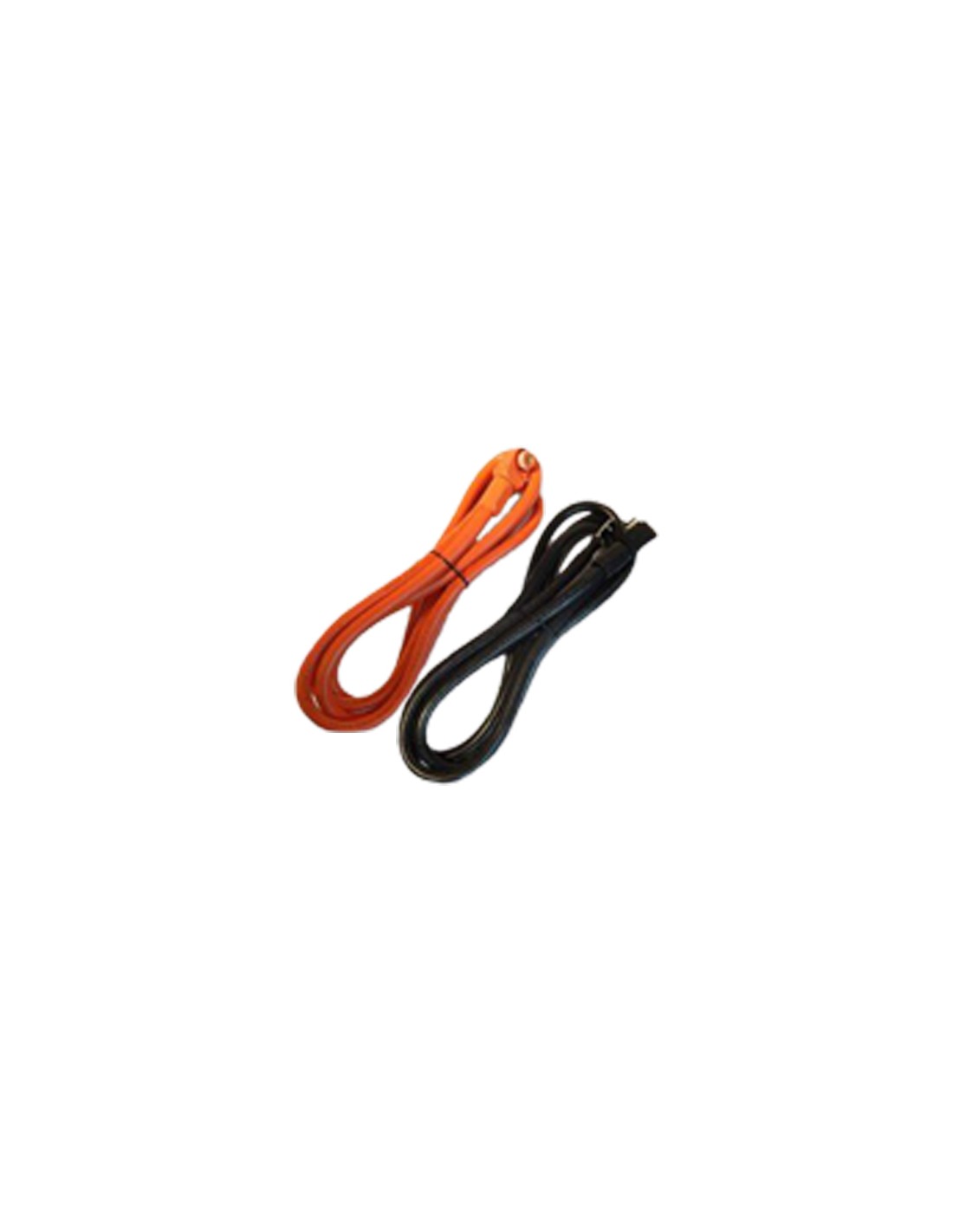

	1	Connection Cables	Solis Battery and Inverter Connection Cables
	1	Pair of connectors	Pair of Amphenol connectors for Solis inverters

Main features of the inverter:

• Colored touch LCD, IP65 protection rating;
• 6 periods of time to charge/discharge the battery;
• Maximum charge/discharge current of 120A;
• Up to 16 parallel inverters;
• DC torque and AC torque for retrofitting existing solar system;
• Supports energy storage from generator;
• 24/48V low voltage battery, safe and reliable;
• Exclusive Smart Load application and Grid peak shaving function;
• 4ms fast transfer from on-grid to off-grid mode, so the traditional fixed frequency air conditioner works well.

• Monitoring via app (optional): real-time monitoring and remote update;
• Module design: expansion flexibility;
• LFP technology for high security: cell level monitoring and balancing;
• Different installation methods: wall, floor or stackable module installation;
• Wide compatibility: can be combined with the main inverters.
