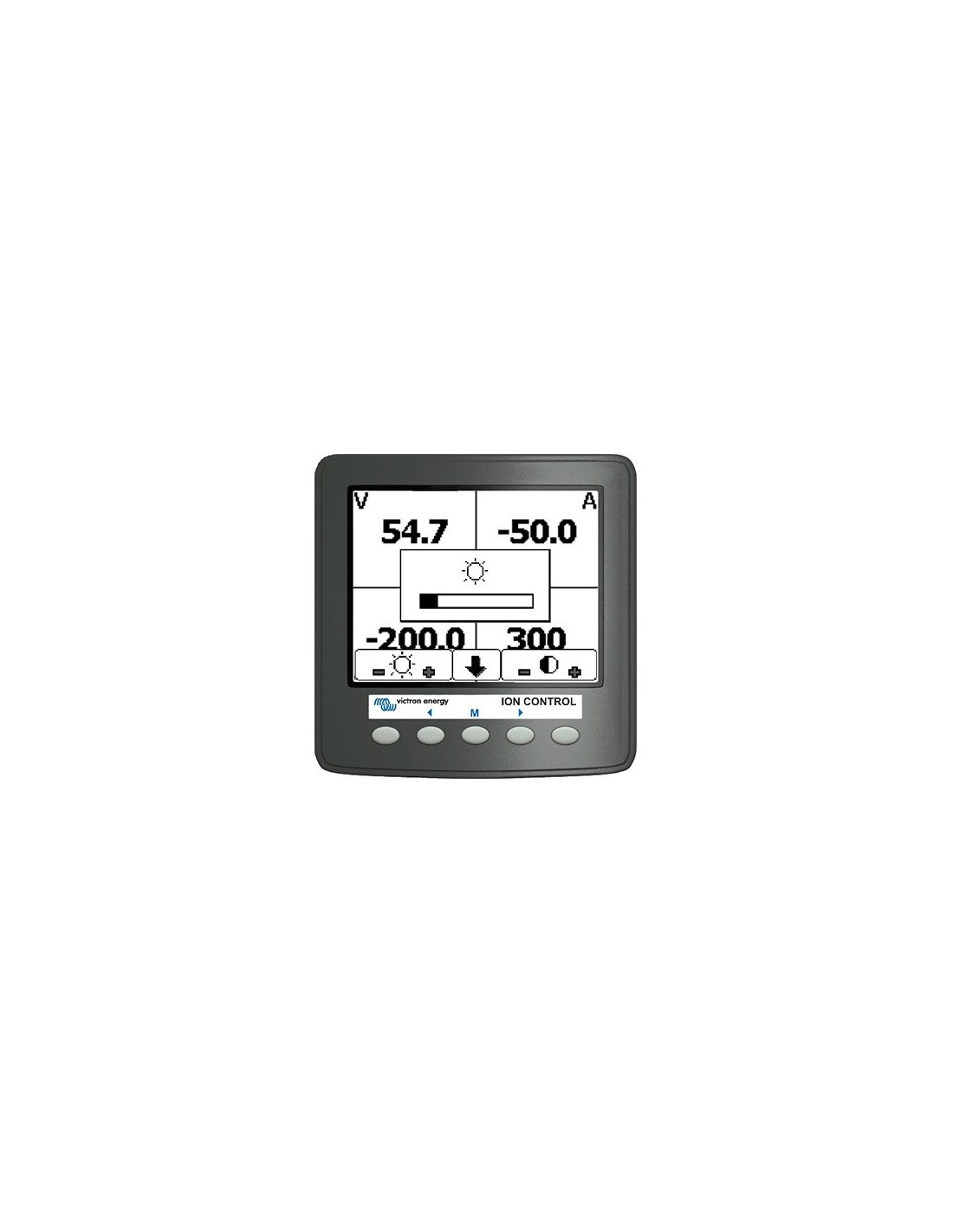

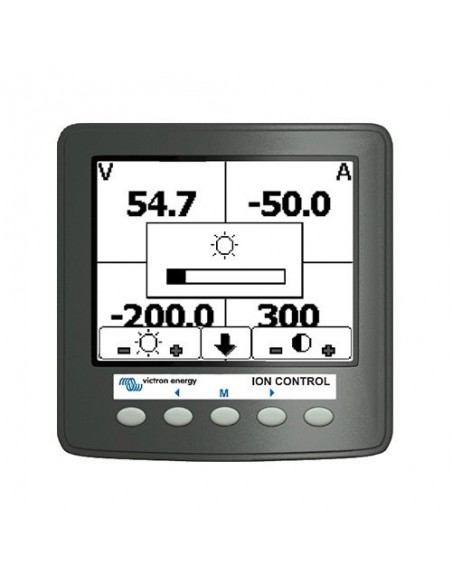

Ion Control
The Ion Control shows all vital data from the Lithium Battery system:
• Battery voltage (V)
• Battery charge/discharge current (A)
• Ampere-hours consumed (Ah)
• State of charge (%)
• Remaining time at the current rate of discharge until the battery has reached 90% discharge
• Visual alarm: almost charged, almost discharged

It will also show the following historic values:
• The depth of the deepest discharge
• The cumulative number of Amp hours drawn from the battery
• The minimum battery voltage
• The maximum battery voltage
• The minimum cell voltage
• The maximum cell voltage

The diagnostic data displayed is:
• Software versions of the system components
• Total number of automatic system shutdowns, caused by an error
• Last four errors that occurred in the system

Using multiple Ion Controls
Multiple Ion Controls can be installed to monitor a single Lithium Battery System. All Ion Controls will display the same data. It is recommended, when more than one Ion Control is installed, to use an external network power source due to the limited capacity of the Lynx Shunt’s power supply.
